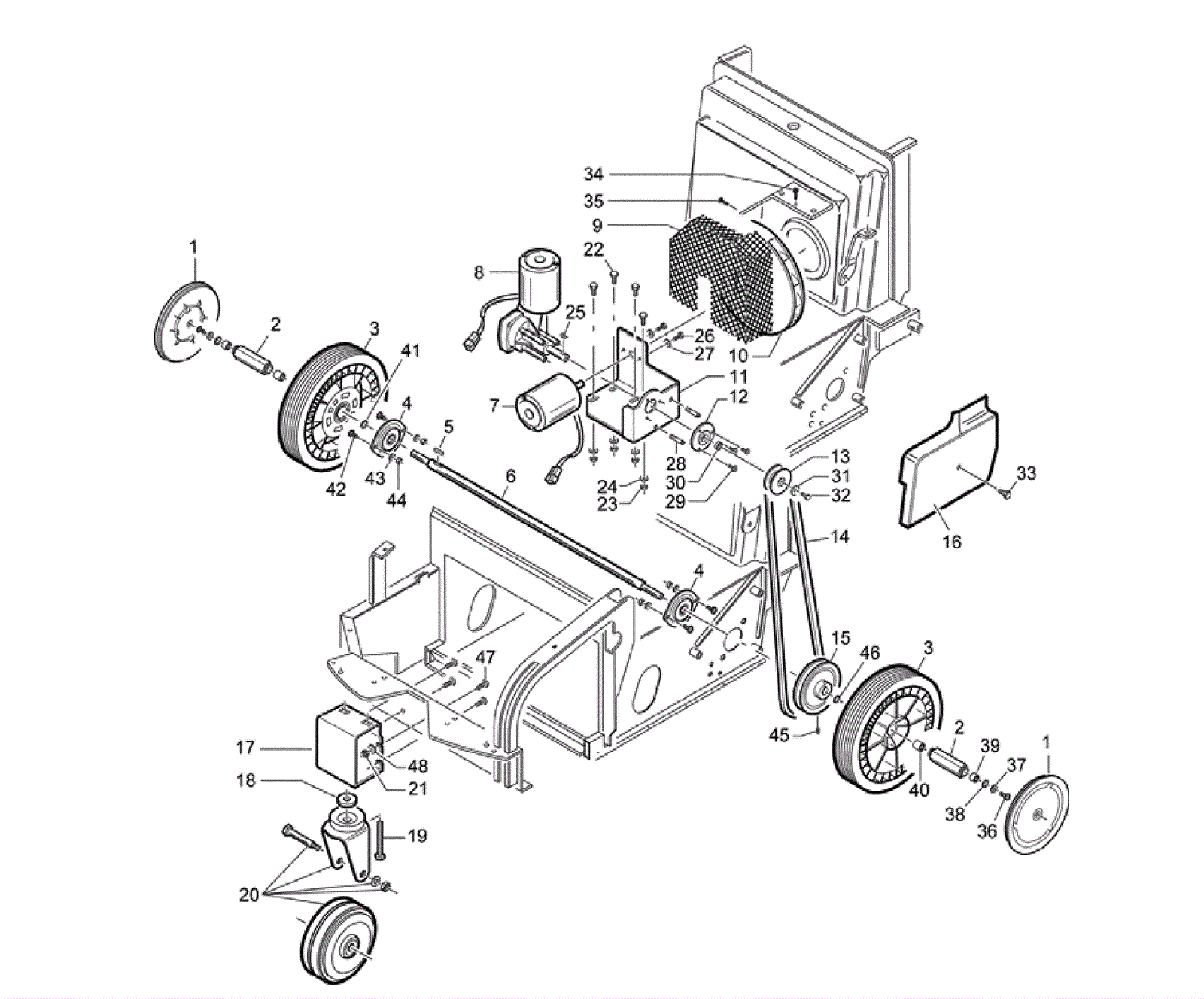

512 28 INCH Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-3373 Wheel cover $28.84 2 usually ships 10-12 days
2 203-3116 Hexagonal bushing $34.13 2 usually ships 1-5 days
3 203-3025 Wheel $125.63 2 usually ships 10-12 days
4 203-3027 Bearing and flange $29.66 2 usually ships 10-12 days
5 189-0643 Tongue $17.53 1 usually ships 1-5 days
6 203-3028 Drive shaft $135.23 1 usually ships 10-12 days
7 203-3118 Motor with smooth shaft $249.10 1 usually ships 10-12 days
8 203-2844 Motor with gearbox $236.35 1 usually ships 1-5 days
9 203-4237 Protection grill $102.21 1 usually ships 1-5 days
10 203-3035 Fan $119.11 1 usually ships 10-12 days
11 203-3034 Motor support $95.34 1 usually ships 1-5 days
12 203-3033 Bearing support $70.15 1 usually ships 1-5 days
13 203-3032 Pulley $28.25 1 usually ships 1-5 days
14 203-3029 Main belt $40.25 1 usually ships 10-12 days
15 203-3030 Pulley $94.28 1 usually ships 1-5 days
16 203-4208 Conveyor $76.74 1 usually ships 1-5 days
17 203-5116 Sheet metal $49.94 1 usually ships 10-12 days
18 203-4214 Spacer $18.67 1 usually ships 1-5 days
19 203-5117 Screw $4.25 1 usually ships 10-12 days
20 203-3077 Rotary support wheel grey $100.51 1 usually ships 10-12 days
21 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
22 203-3281 Screw M6 x 16 $4.25 4 ships same day
23 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
24 203-4235 Washer 6 x 18 x 2.38 $3.10 4 usually ships 1-5 days
25 203-3279 Key $18.36 1 ships same day
26 203-3206 Screw M5 x 16 $4.25 2 ships same day
27 203-0903 Washer D5 $3.10 2 usually ships 10-12 days
28 203-1170 Belt support pin $5.50 1 usually ships 1-5 days
29 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 3 ships same day
30 203-2067 Bearing $41.79 1 usually ships 1-5 days
31 203-0903 Washer D5 $3.10 1 usually ships 10-12 days
32 203-3197 Screw M4 x 16 $4.25 1 usually ships 1-5 days
33 203-1164 Screw 6x10 $3.43 1 usually ships 12-18 days
34 999-1617 Screw M3.9 x 13mm pan head philliips self tapping SS $0.99 1 ships same day
35 999-1617 Screw M3.9 x 13mm pan head philliips self tapping SS $0.99 1 ships same day
36 203-2109 Screw 6 x 10 $4.25 2 ships same day
37 203-1171 Washer 6 x 24 $3.10 2 ships same day
38 203-3023 Outer snap ring $0.99 2 usually ships 10-12 days
39 203-3024 Bearing $139.24 2 usually ships 10-12 days
40 203-3115 Bearing $35.04 2 usually ships 10-12 days
41 203-3023 Outer snap ring $0.99 1 usually ships 10-12 days
42 203-3026 Screw M6 x 16 $4.25 4 usually ships 10-12 days
43 203-1291 Washer $3.10 4 usually ships 10-12 days
44 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
45 203-3031 Dowel 6 x 10 $4.25 1 usually ships 1-5 days
46 203-3023 Outer snap ring $0.99 1 usually ships 10-12 days
47 999-0920 Screw M6-1 x 16mm button head socket $0.99 4 ships same day
48 203-4235 Washer 6 x 18 x 2.38 $3.10 4 usually ships 1-5 days
