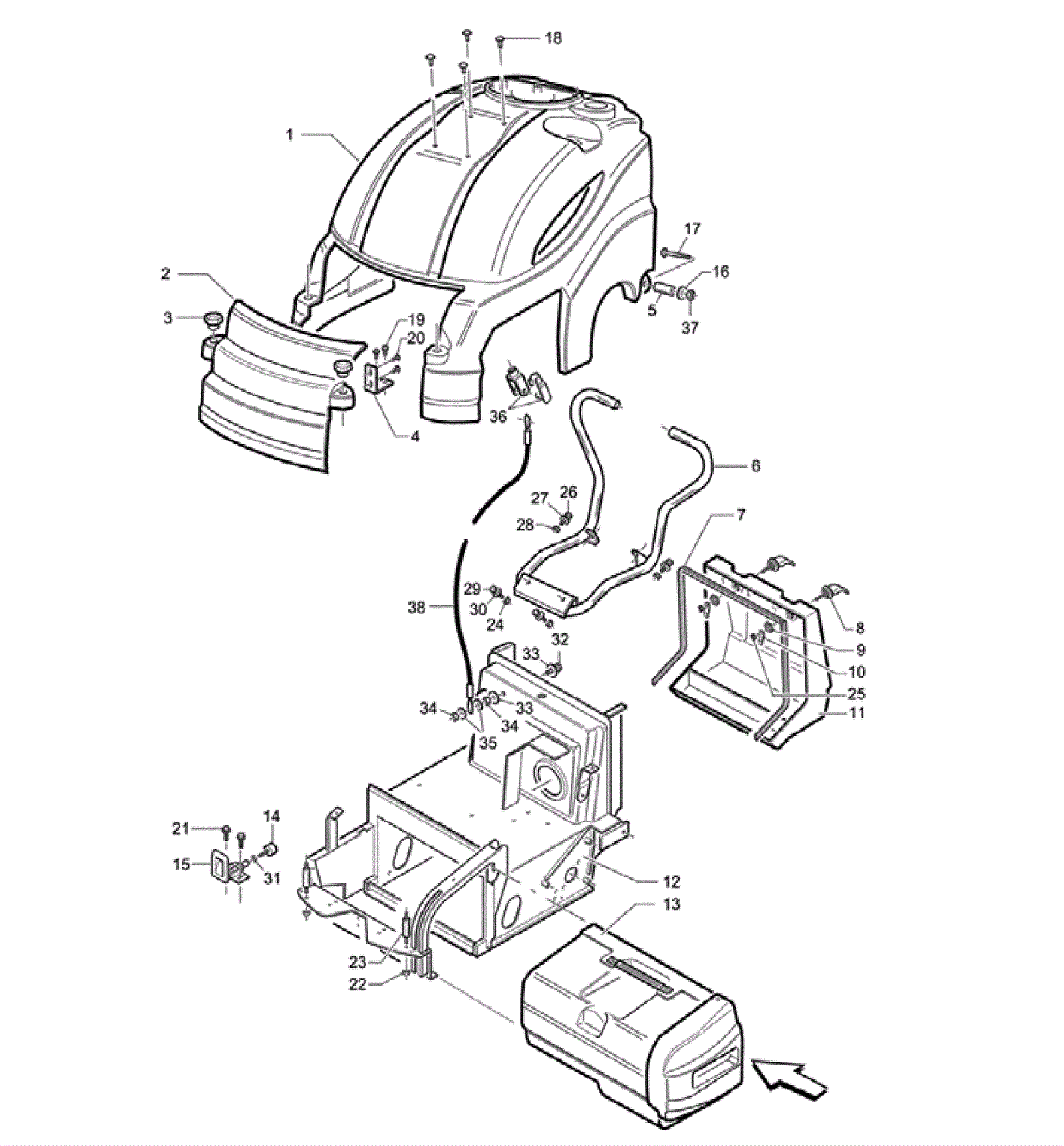

512 28 INCH Cover and Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5103 Hood $1,580.30 1 usually ships 11-14 days
2 203-5104 Side panel (OBSOLETE) $112.96 1 usually ships 11-14 days
3 203-5050 Hand wheel $28.48 2 usually ships 11-14 days
4 203-5051 Bracket $22.47 2 usually ships 11-14 days
5 203-5052 Spacer D8 $25.11 2 usually ships 11-14 days
6 203-5053 Handle $432.95 1 usually ships 11-14 days
7 203-3121 Back drawer gasket $55.55 1 usually ships 11-14 days
8 203-4229 Lock $78.82 2 usually ships 11-14 days
9 203-3418 Nut $8.34 2 usually ships 11-14 days
10 203-3419 Lever $8.34 2 usually ships 11-14 days
11 203-4228 Drawer $425.40 1 usually ships 11-14 days
12 203-5105 Frame $1,319.14 1 usually ships 11-14 days
13 203-5054 Drawer $660.00 1 usually ships 11-14 days
14 203-4227 Foot $6.01 1 usually ships 1-5 days
15 203-4225 Lever $229.61 1 usually ships 1-5 days
16 203-4212 Washer 8 x 24 $2.99 2 usually ships 1-5 days
17 203-5055 Screw M8 x 89mm $8.21 2 usually ships 11-14 days
18 203-5056 Screw M8 x 60mm $8.25 2 usually ships 11-14 days
19 203-5002 Screw 5 x 10 inch $4.20 4 usually ships 11-14 days
20 203-5002 Screw 5 x 10 inch $4.20 4 usually ships 11-14 days
21 203-3281 Screw M6 x 16 $4.25 2 ships same day
22 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
23 203-5057 Pin $14.67 2 usually ships 11-14 days
24 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 4 ships same day
25 203-4226 Nut $30.60 2 usually ships 11-14 days
26 203-5106 Screw $8.46 4 usually ships 11-14 days
27 203-4235 Washer 6 x 18 x 2.38 $3.10 4 usually ships 1-5 days
28 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
29 203-5058 Carrying bag $8.21 2 usually ships 11-14 days
30 203-4179 Washer D8 $17.07 4 usually ships 11-14 days
31 203-4226 Nut $30.60 1 usually ships 11-14 days
32 203-5059 Screw M8 x 30mm $30.95 1 usually ships 11-14 days
33 203-4212 Washer 8 x 24 $2.99 2 usually ships 1-5 days
34 203-4406 Nut $8.23 2 usually ships 1-5 days
35 203-4212 Washer 8 x 24 $2.99 1 usually ships 1-5 days
36a 203-5060 Fork pin $24.60 1 usually ships 11-14 days
36b 203-5061 Clip $10.24 1 usually ships 11-14 days
37 203-4406 Nut $8.23 2 usually ships 1-5 days
38 203-5062 Cable $46.07 1 usually ships 11-14 days
