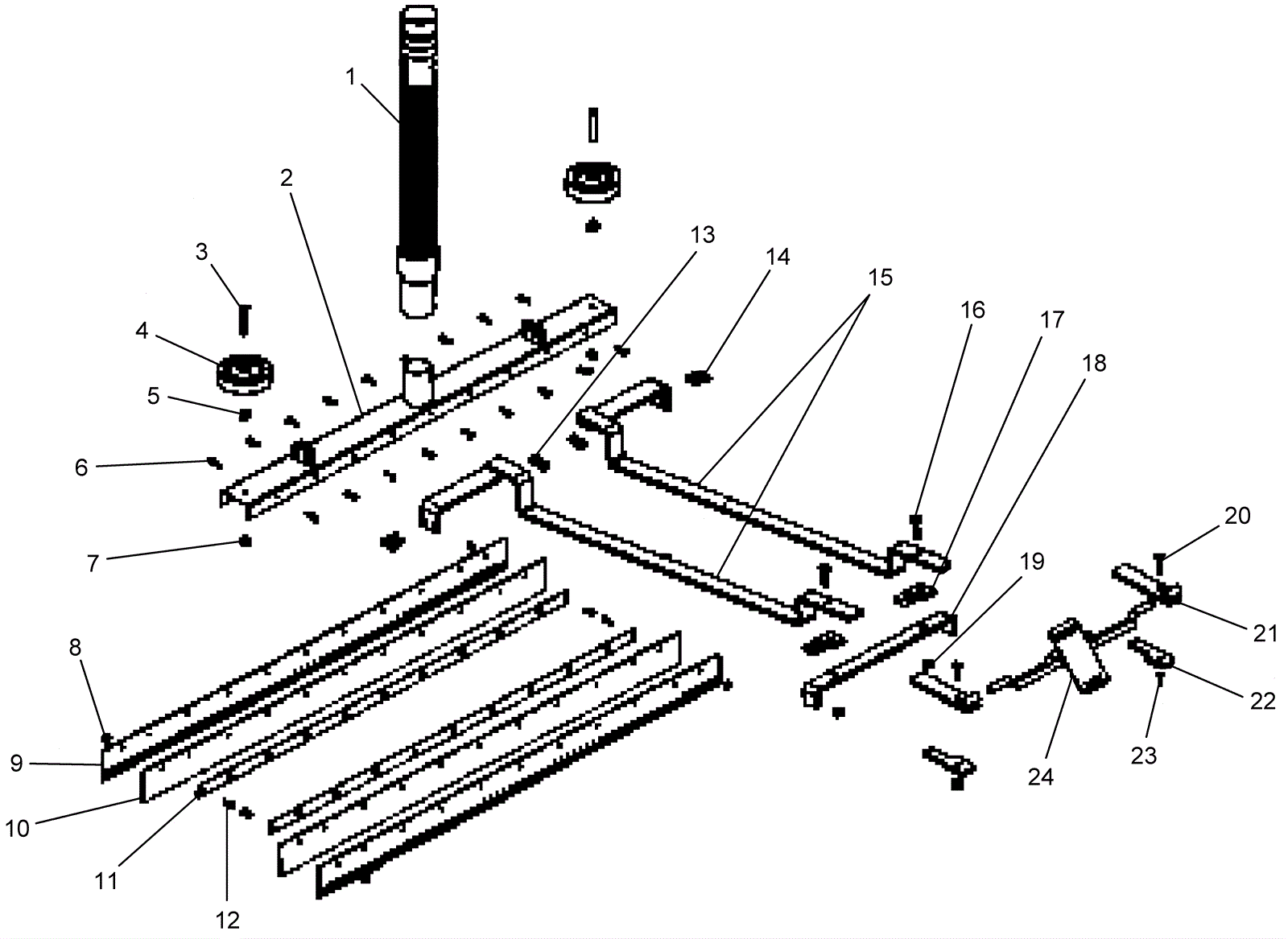

415PLT Front Mounted Squeegee Tool - 30 inch

#PartDescriptionPriceReqNotesAvailability
1 173-4285 Hose assembly $38.21 1 usually ships 10-12 days
2 173-4286 Squeegee weldment $60.76 1 usually ships 10-12 days
3 173-5054 Bolt 1/4-1-3/4 hex head $2.37 2 usually ships 14-22 days
4 173-4288 Guide wheel $24.20 2 usually ships 14-22 days
5 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 2 ships same day
6 173-4295 Screw 10-32 x 5/8 inch stainless steel $0.99 18 usually ships 10-12 days
7 203-4628 Nut nylock 1/4-20 $0.99 2 usually ships 1-5 days
8 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
9 173-2898 Squeegee blade slotted $51.48 2 ships same day
10 173-4291 Solid blade $16.96 2 ships same day
11 173-4292 Support blade $19.23 2 usually ships 10-12 days
12 173-4295 Screw 10-32 x 5/8 inch stainless steel $0.99 18 usually ships 10-12 days
13 203-4628 Nut nylock 1/4-20 $0.99 4 usually ships 1-5 days
14 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
15a 173-8599 Right side lifting arm $155.10 1 (right) usually ships 14-22 days
15b 173-8600 Left side lifting arm $155.10 1 (left) usually ships 14-22 days
17 173-8601 Lifting arm clamp $49.28 2 usually ships 14-22 days
18 173-8602 Cross bracket $66.55 1 usually ships 14-22 days
20 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
21 173-8603 Pedal mount $71.50 2 usually ships 14-22 days
22 173-8601 Lifting arm clamp $49.28 2 usually ships 14-22 days
23 203-4628 Nut nylock 1/4-20 $0.99 2 usually ships 1-5 days
24 173-8605 Pedal assembly $130.90 1 usually ships 14-22 days
