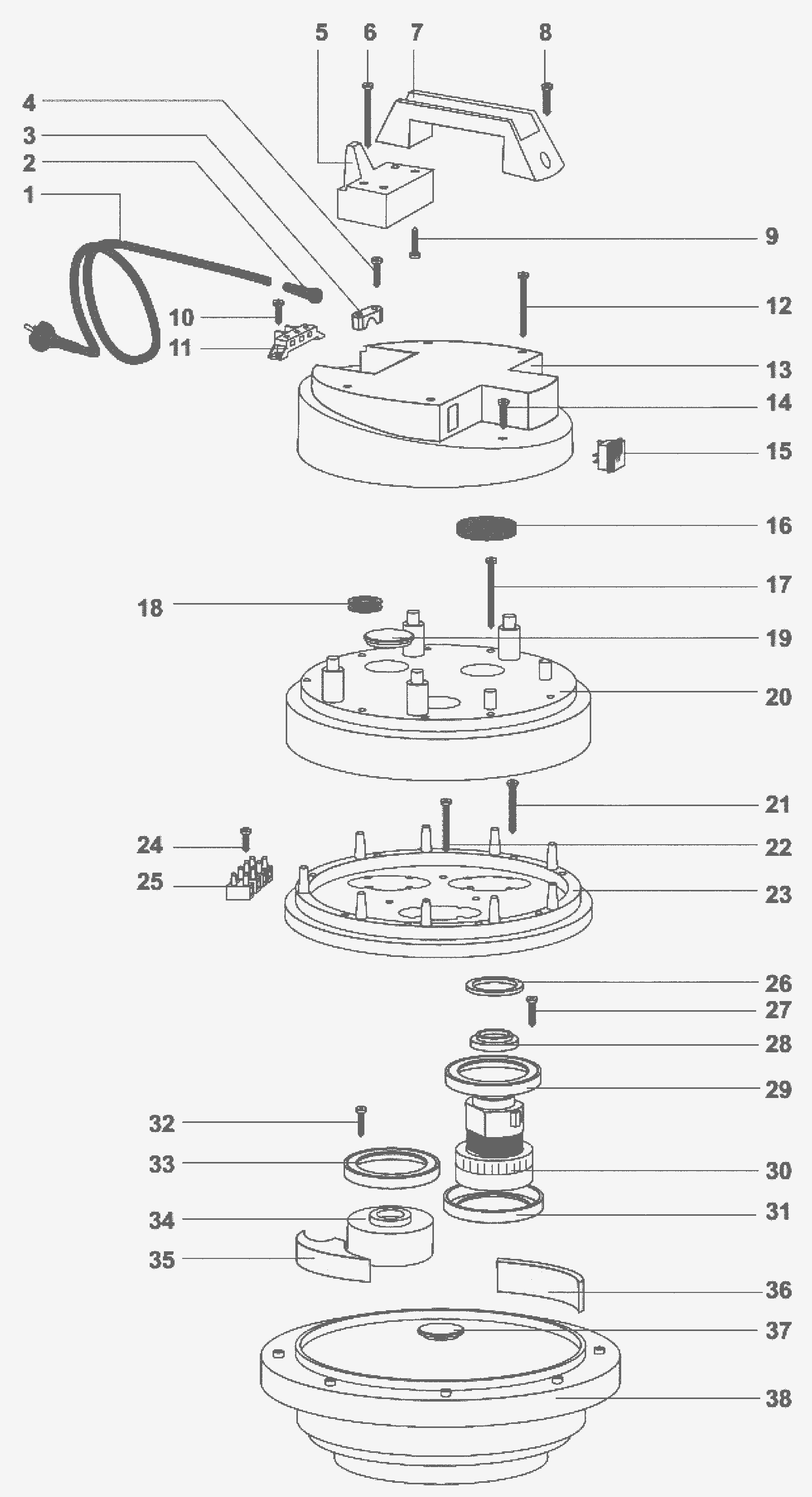

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-4622
|
Power cord 12 x 3 |
1 |
|
|
2 |
203-4623
|
Strain relief |
1 |
|
|
3 |
203-0282
|
Cord clamp |
1 |
|
|
4 |
203-0276
|
Screw M5 x 20mm |
2 |
|
|
5 |
203-4597
|
Cord hook |
1 |
|
|
6 |
173-4261
|
Screw M5 x 30mm |
4 |
|
|
7 |
203-4598
|
Handle |
1 |
|
|
8 |
203-0307
|
Screw M5 x 30mm |
1 |
|
|
9 |
203-0276
|
Screw M5 x 20mm |
2 |
|
|
10 |
203-0286
|
Screw M5 x 14mm |
2 |
|
|
11 |
203-4599
|
Terminal block |
1 |
|
|
12 |
173-4261
|
Screw M5 x 30mm |
4 |
|
|
13 |
203-4624
|
Dual motor cover |
1 |
|
|
14 |
203-0276
|
Screw M5 x 20mm |
2 |
|
|
15 |
203-0275
|
On/off switch |
3 |
|
|
16 |
203-0283
|
Filter |
3 |
|
|
17 |
203-4601
|
Screw 5 x 55 zinc |
9 |
|
|
18 |
203-0468
|
Grommet |
1 |
|
|
19 |
N/A
|
Not available |
|
|
|
20 |
203-4602
|
Motor cover |
1 |
|
|
21 |
203-0401
|
Screw M5 x 40mm |
9 |
|
|
22 |
203-0401
|
Screw M5 x 40mm |
3 |
|
|
23 |
173-4274
|
Motor base (gray) |
1 |
|
|
24 |
203-4603
|
Scerw 4 1/2 x 20 (OBSOLETE) |
1 |
|
|
25 |
203-4604
|
Terminal board |
1 |
|
|
26 |
203-0285
|
Motor exhaust gasket |
3 |
|
|
27 |
203-0276
|
Screw M5 x 20mm |
12 |
|
|
29 |
203-0289
|
Motor gasket |
3 |
|
|
30 |
203-4625
|
120V motor |
3 |
|
|
31 |
203-0289
|
Motor gasket |
3 |
|
|
32 |
N/A
|
Not available |
|
|
|
33 |
N/A
|
Not available |
|
|
|
34 |
N/A
|
Not available |
|
|
|
35 |
203-0325
|
Filter |
3 |
|
|
36 |
203-0326
|
Filter |
3 |
|
|
37 |
203-4626
|
Valve |
3 |
|
|
38 |
203-4606
|
Base with gasket |
1 |
|
|
