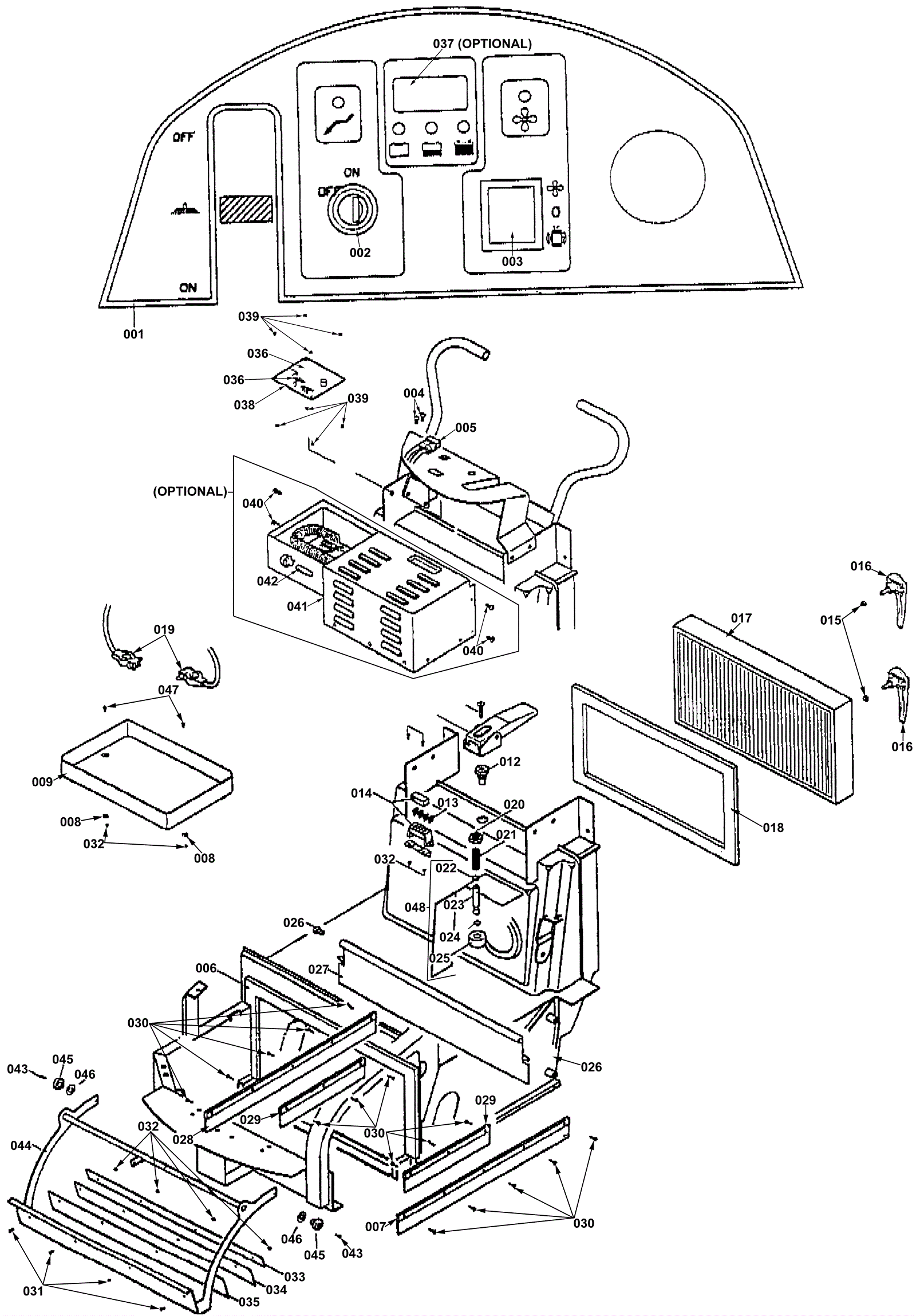

TKS510GT SILVER Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-1998 Dashboard plate $8.03 1 usually ships 1-5 days
002 203-3125 Key switch $93.87 1 usually ships 1-5 days
003 203-3126 Bipolar switch $54.23 1 usually ships 5-15 days
004 203-3152 Screw 5 x 20 $29.26 2 usually ships 1-5 days
005 203-4239 Connector (OBSOLETE) Call for price 1 usually ships 1-5 days
006 203-3129 Adhesive kit for front drawer $30.14 1 usually ships 1-5 days
007 203-4003 Gray left side flap $51.72 1 usually ships 1-5 days
008 203-1377 D. 5 Washer $2.90 2 usually ships 1-5 days
009 203-4005 Battery container $82.17 1 usually ships 1-5 days
010 203-4240 Belt $6.27 1 usually ships 5-15 days
011 203-4241 Battery container $46.90 1 usually ships 1-5 days
013a 203-3133 30amp fuse $2.34 1 (OEM) usually ships 1-5 days
013b 991-5160 30amp fuse $1.96 1 (NON-OEM) ships same day
014 203-3134 Fuse box and cover $59.62 1 usually ships 5-15 days
015 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
016 203-4243 Handle $45.10 2 usually ships 5-15 days
017a 203-2288 Dust control filter $198.32 1 usually ships 5-15 days
017b 203-1259 Pre-filter $23.10 1 ships same day
018 203-3137 Filter gaskets kit $18.37 1 usually ships 5-15 days
019 203-3138 Electrical installation $827.17 1 usually ships 1-5 days
026 203-3143 Screw 10 x 16 $3.96 2 usually ships 1-5 days
027 203-3144 Backside flap $66.55 1 usually ships 1-5 days
028 203-3145 Right side flap $51.72 1 usually ships 5-15 days
029 203-3146 Inner flap $37.00 2 usually ships 5-15 days
030 203-4244 Screw $3.96 16 usually ships 1-5 days
031 203-4245 Screw 4 x 12 $0.99 2 usually ships 1-5 days
032 203-3202 Nut M4 $3.43 2 usually ships 1-5 days
033 203-4246 Retainer flap $25.63 1 usually ships 5-15 days
034 203-4247 Rubber flap $28.27 1 usually ships 5-15 days
035 203-4248 Rubber skirt flap $32.56 1 usually ships 5-15 days
036 203-3288 50 amp bar fuse $27.72 1 usually ships 1-5 days
037 203-3147 Hourmeter $266.16 1 usually ships 1-5 days
038 203-3148 Circuit board $362.45 1 usually ships 5-15 days
039 203-3202 Nut M4 $3.43 8 usually ships 1-5 days
041 203-4249 Balancer (OBSOLETE) Call for price 1 usually ships 1-5 days
042 203-3092 Screw M8 x 22 $3.96 2 usually ships 1-5 days
043 203-4076 Bushing $4.22 2 usually ships 1-5 days
044 203-4212 Washer 8 x 24 $2.79 2 usually ships 1-5 days
