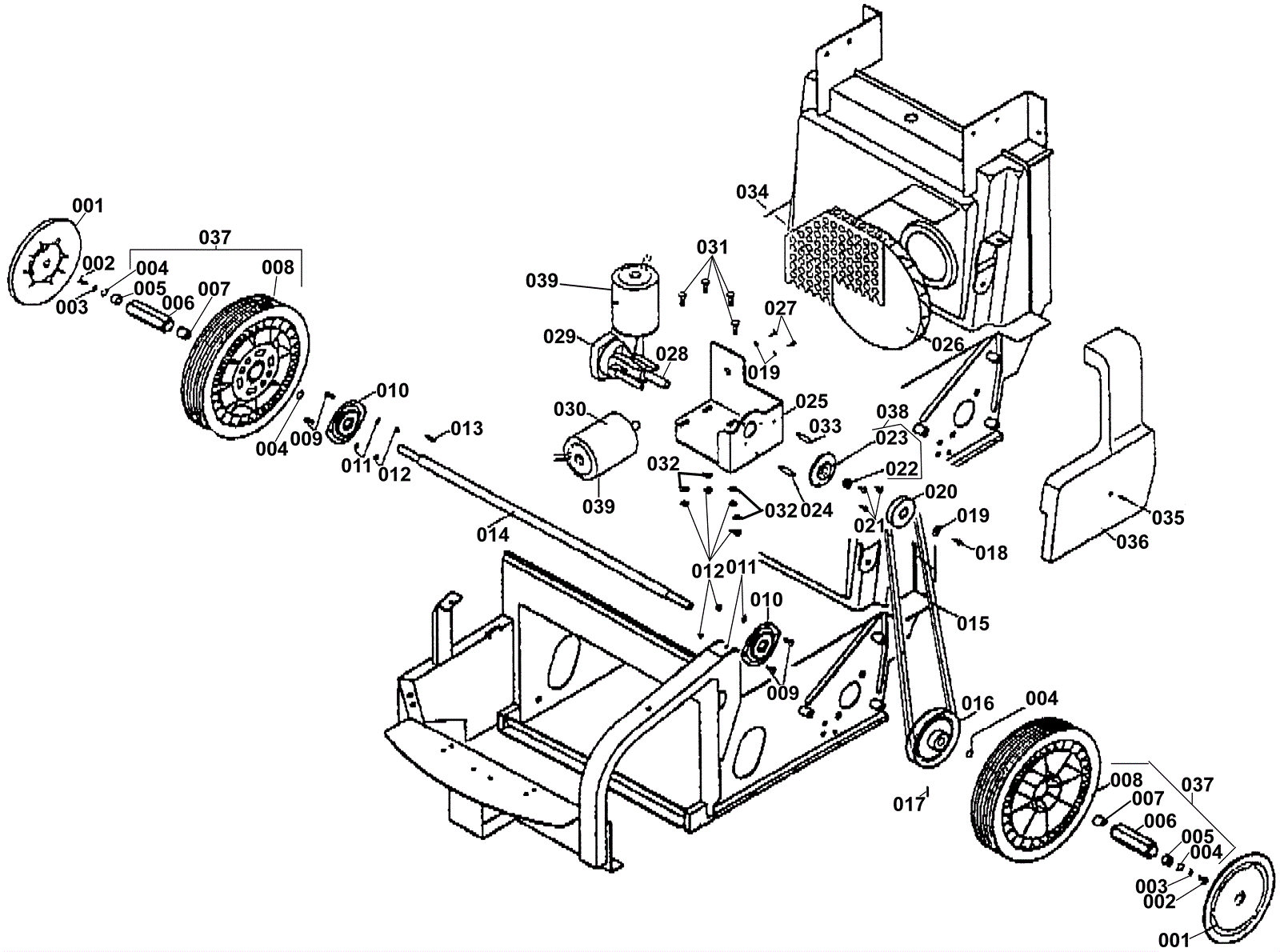

TKS510GT SILVER Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 203-4049 Hub cap $9.67 2 usually ships 5-15 days
002 203-2109 Screw 6 x 10 $3.96 2 ships same day
003 203-1171 Washer 6 x 24 $2.90 2 ships same day
004 203-3023 Outer snap ring $0.99 4 usually ships 5-15 days
005 203-3024 Bearing $130.13 2 usually ships 5-15 days
006 203-3116 Hexagonal bushing $31.90 2 usually ships 1-5 days
007 203-3115 Bearing $32.75 2 usually ships 5-15 days
008 203-3025 Wheel $117.41 2 usually ships 5-15 days
009 203-3026 Screw M6 x 16 $3.96 4 usually ships 5-15 days
010 203-3027 Bearing and flange $27.72 2 usually ships 5-15 days
011 203-1291 Washer $2.90 4 usually ships 5-15 days
012 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
013 189-0643 Tongue $16.39 1 usually ships 1-5 days
014 203-3028 Drive shaft $126.39 1 usually ships 5-15 days
015 203-3029 Main belt $37.62 1 usually ships 5-15 days
016 203-3030 Pulley $88.11 1 usually ships 1-5 days
017 203-3031 Dowel 6 x 10 $3.96 1 usually ships 1-5 days
018 203-3197 Screw M4 x 16 $3.96 1 usually ships 1-5 days
020 203-3032 Pulley $26.40 1 usually ships 1-5 days
021 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 3 ships same day
022 203-2067 Bearing $39.05 1 usually ships 1-5 days
023 203-3033 Bearing support $65.56 1 usually ships 1-5 days
024 203-1170 Belt support pin $5.41 1 usually ships 1-5 days
025 203-3034 Motor support $89.10 1 usually ships 1-5 days
026 203-3035 Fan $111.32 1 usually ships 5-15 days
027 203-3206 Screw M5 x 16 $3.96 2 ships same day
028 203-3279 Key $17.16 1 ships same day
029 203-2844 Motor with gearbox $383.75 1 usually ships 1-5 days
030a 203-3118 Motor with smooth shaft $256.08 1 usually ships 5-15 days
030b 203-3042 Carbon brush $30.36 1 usually ships 1-5 days
031 203-3281 Screw M6 x 16 $3.96 4 ships same day
032 203-4235 Washer 6 x 18 x 2.38 $2.90 4 usually ships 1-5 days
033 203-4236 Pin $18.70 1 usually ships 1-5 days
034 203-4237 Protection grill $95.52 1 usually ships 1-5 days
035 203-1164 Screw 6x10 $3.43 1 usually ships 11-24 days
036 203-4208 Conveyor $71.72 1 usually ships 1-5 days
037a 203-4232 Right wheel $343.01 1 includes 004-008 usually ships 5-15 days
037b 203-4233 Left wheel $343.01 1 includes 004-008 usually ships 5-15 days
038 203-3041 Complete support $46.31 1 includes 022 and 023 usually ships 1-5 days
