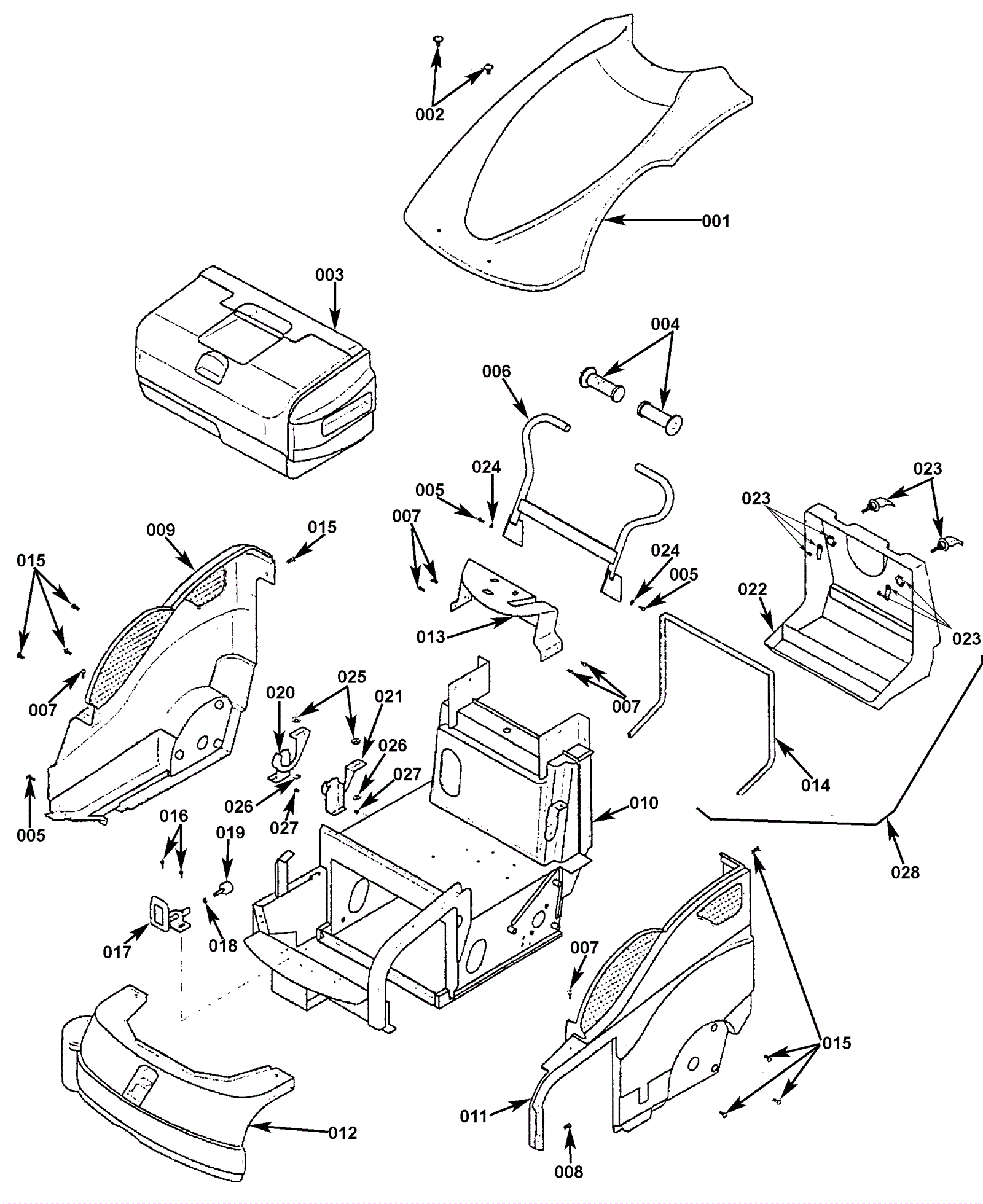

TKS710ET SILVER Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
000 203-3318 Complete rear hopper (OBSOLETE) Call for price TKS710 Model usually ships 1-5 days
001 203-3303 Upper cover $422.62 TKS710 Model usually ships 1-5 days
002 203-4217 Fixing screw $32.34 usually ships 1-5 days
003 203-3304 Front drawer $713.38 TKS710 Model usually ships 5-15 days
004 203-3005 Rubber handle grip $39.14 usually ships 5-15 days
005 203-1942 Screw M8 x 16 $3.96 usually ships 5-15 days
006 203-3305 Handle bar $175.59 usually ships 5-15 days
007 999-0920 Screw M6-1 x 16mm button head socket $0.99 ships same day
008 203-1166 Screw M4 x 16 $4.86 usually ships 5-15 days
009 203-3306 Right side casing $559.25 usually ships 1-5 days
010 203-3307 Frame (OBSOLETE) Call for price TKS710E Model usually ships 1-5 days
011 203-3308 Left side casing $559.25 usually ships 1-5 days
012 203-3309 Gray front casing $523.92 TKS710 Model usually ships 1-5 days
013 203-3310 Dashboard (OBSOLETE) Call for price usually ships 1-5 days
014 203-3311 Back drawer gasket $120.47 usually ships 1-5 days
015 999-0939 Screw M8-1.25 x 10mm button head socket stainless steel $1.53 ships same day
016 203-1164 Screw 6x10 $3.43 usually ships 11-24 days
018 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 ships same day
020 203-3313 Hinge $160.12 usually ships 1-5 days
021 203-3314 Hinge $160.12 usually ships 1-5 days
022 203-3315 Back drawer $523.92 TKS710 Model usually ships 1-5 days
023 203-4229 Lock $73.66 usually ships 5-15 days
024 189-1872 Washer 8 x 17 $24.09 usually ships 1-5 days
025 203-3316 Bushing $9.24 usually ships 1-5 days
026 189-1881 Bushing $9.24 usually ships 1-5 days
027 999-0932 Bolt 1/2-13 x 4 3/4 hex head grade 8 plain finish $5.34 usually ships 1-5 days
