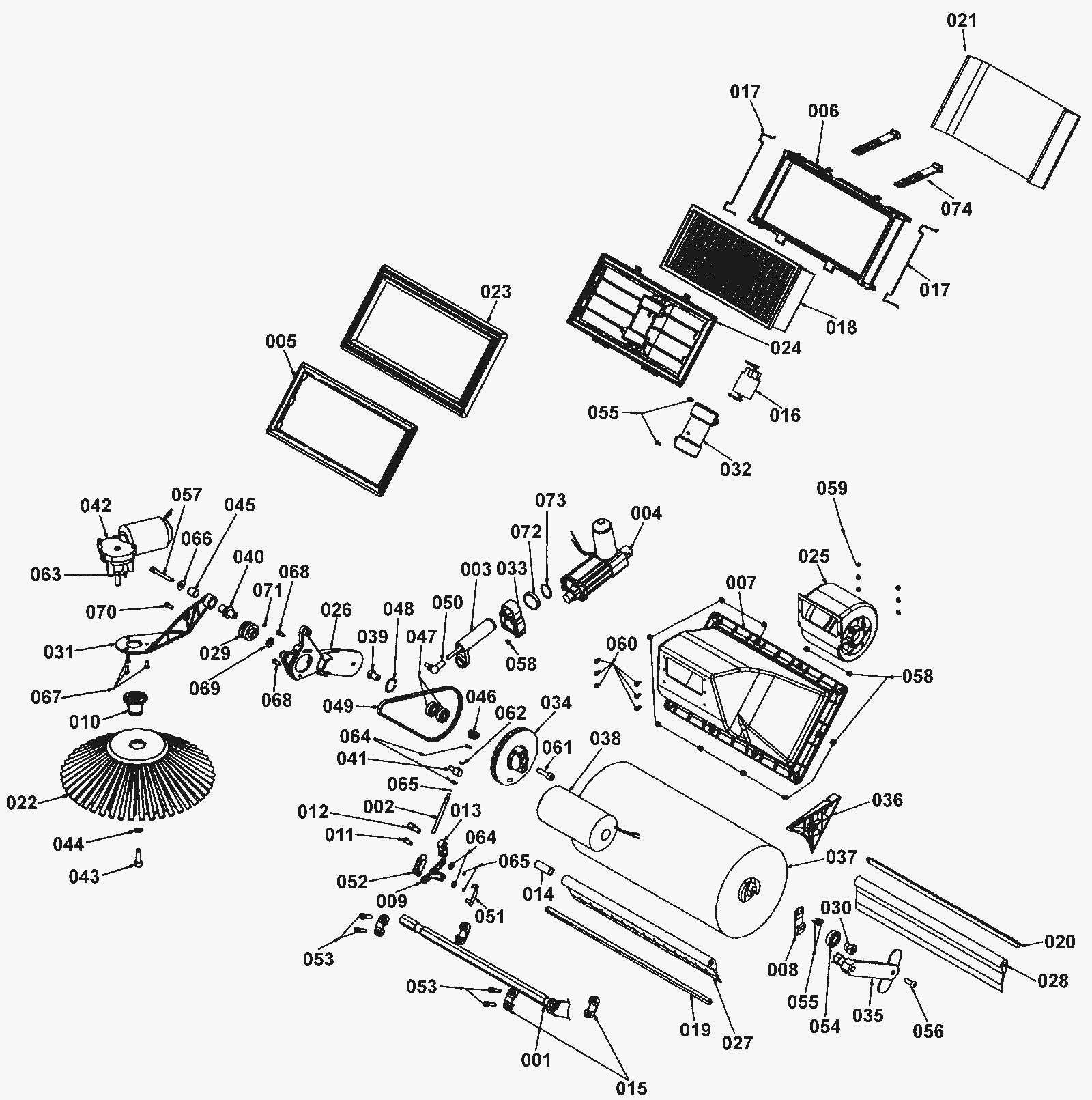

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
203-3218
|
Main brush drive shaft |
1 |
|
|
002 |
203-3219
|
Adjuster rod |
1 |
|
|
003 |
203-3220
|
Guide spring case |
1 |
|
|
004 |
203-3221
|
Actuator |
1 |
|
|
005 |
203-3222
|
Filter frame plate |
1 |
|
|
006 |
203-3223
|
Filter frame |
1 |
|
|
007 |
203-4875
|
Blower housing |
1 |
|
|
008 |
203-3225
|
Main brush locking retainer |
1 |
|
|
009 |
203-3226
|
Side brush driving arm |
1 |
|
|
010 |
203-3227
|
Side brush drive hub |
1 |
|
|
011 |
203-3228
|
Pin |
1 |
|
|
012 |
203-3229
|
Driving arm pin |
1 |
|
|
013 |
203-3230
|
Connecting rod |
1 |
|
|
014 |
203-3231
|
Skirt spacer |
1 |
|
|
015 |
203-3232
|
Main brush drive shaft support |
2 |
|
|
016 |
203-3233
|
Shaker motor |
1 |
|
|
018a |
175-4131
|
Fluted paper filter |
1 |
(OEM) |
|
018c |
991-9077
|
Polyester panel filter (OBSOLETE) |
1 |
(NON-OEM) |
|
019 |
203-3236
|
Front skirt holder pin |
1 |
|
|
020 |
203-3237
|
Rear skirt holder pin |
1 |
|
|
021a |
203-3238
|
Pre-filter |
1 |
(OEM) |
|
021b |
991-9072
|
Pre-filter (OBSOLETE) |
1 |
(NON-OEM) |
|
022a |
203-3239
|
Side brush |
1 |
|
|
022b |
991-7008
|
Side brush |
1 |
|
|
023 |
203-3240
|
Filter gasket (OBSOLETE) |
1 |
|
|
024 |
203-9169
|
Shaker frame |
1 |
|
|
025 |
203-3242
|
Vacuum motor |
1 |
|
|
026 |
203-3243
|
Main brush arm |
1 |
|
|
027 |
203-3244
|
Front skirt |
1 |
|
|
028 |
203-3245
|
Rear skirt |
1 |
|
|
029 |
203-3246
|
Pulley |
1 |
|
|
030 |
203-3247
|
Pin |
1 |
(includes 054) |
|
031 |
203-3248
|
Side brush arm |
1 |
|
|
032 |
203-3249
|
Shaker motor cover |
1 |
|
|
033 |
203-3250
|
Spring guide |
1 |
|
|
034 |
203-3251
|
Pulley |
1 |
|
|
035 |
203-3252
|
Main brush arm |
1 |
|
|
036 |
203-3253
|
Conveyor |
1 |
|
|
037a |
203-3254
|
Main brush with locking retainer |
1 |
|
|
037b |
991-7009
|
Main brush with locking retainer |
1 |
|
|
038 |
203-3255
|
Main brush motor |
1 |
|
|
039 |
203-3256
|
Pulley pin |
1 |
|
|
040 |
203-3257
|
Rotation pin |
1 |
|
|
041 |
203-3258
|
Articulated adjuster rod joint |
1 |
|
|
042a |
203-3259
|
Side brush motor |
1 |
|
|
042b |
189-0093
|
Snap Ring |
1 |
For shaft |
|
043 |
203-3260
|
Screw 4 x 16 |
1 |
|
|
044 |
203-3261
|
Washer D.4 x 18 |
1 |
|
|
045 |
203-3264
|
Washer |
1 |
|
|
046 |
203-3262
|
Knob |
1 |
|
|
047 |
203-3263
|
Bearing |
2 |
|
|
048 |
203-3265
|
Snap ring |
1 |
|
|
049 |
203-3266
|
Brush belt |
1 |
|
|
050 |
175-4163
|
Ball joint |
1 |
|
|
051 |
203-3268
|
Arm clip |
1 |
|
|
052 |
203-3269
|
Link |
1 |
|
|
053 |
203-3270
|
Screw 6 x 20 |
4 |
|
|
054 |
203-3247
|
Pin |
1 |
Bearing only available in kit now) |
|
055 |
999-1617
|
Screw M3.9 x 13mm pan head philliips self tapping SS |
4 |
|
|
056 |
203-1942
|
Screw M8 x 16 |
1 |
|
|
057 |
203-3274
|
Screw 6 x 50 |
1 |
|
|
058 |
203-3275
|
Nut M5 |
10 |
|
|
059 |
203-3276
|
Nut M4 |
6 |
|
|
060 |
203-3197
|
Screw M4 x 16 |
6 |
|
|
061 |
203-3277
|
Screw 8 x 35 |
1 |
|
|
062 |
203-3278
|
Washer |
1 |
|
|
063 |
203-3279
|
Key |
1 |
|
|
064 |
203-1291
|
Washer |
4 |
|
|
065 |
203-1356
|
Circlip |
3 |
|
|
066 |
203-1171
|
Washer 6 x 24 |
1 |
|
|
067 |
203-3281
|
Screw M6 x 16 |
3 |
|
|
068 |
203-3283
|
Screw 5 x 12 |
1 |
|
|
069 |
203-3282
|
Washer |
1 |
|
|
070 |
203-3283
|
Screw 5 x 12 |
1 |
|
|
071 |
203-3284
|
Screw 4 x 8 |
1 |
|
|
072 |
203-3285
|
Washer |
1 |
|
|
073 |
189-0093
|
Snap Ring |
1 |
|
|
074 |
203-3287
|
Rubber filter latch |
2 |
|
|
N/S |
203-4250
|
Brush hooking lever |
1 |
|
|
