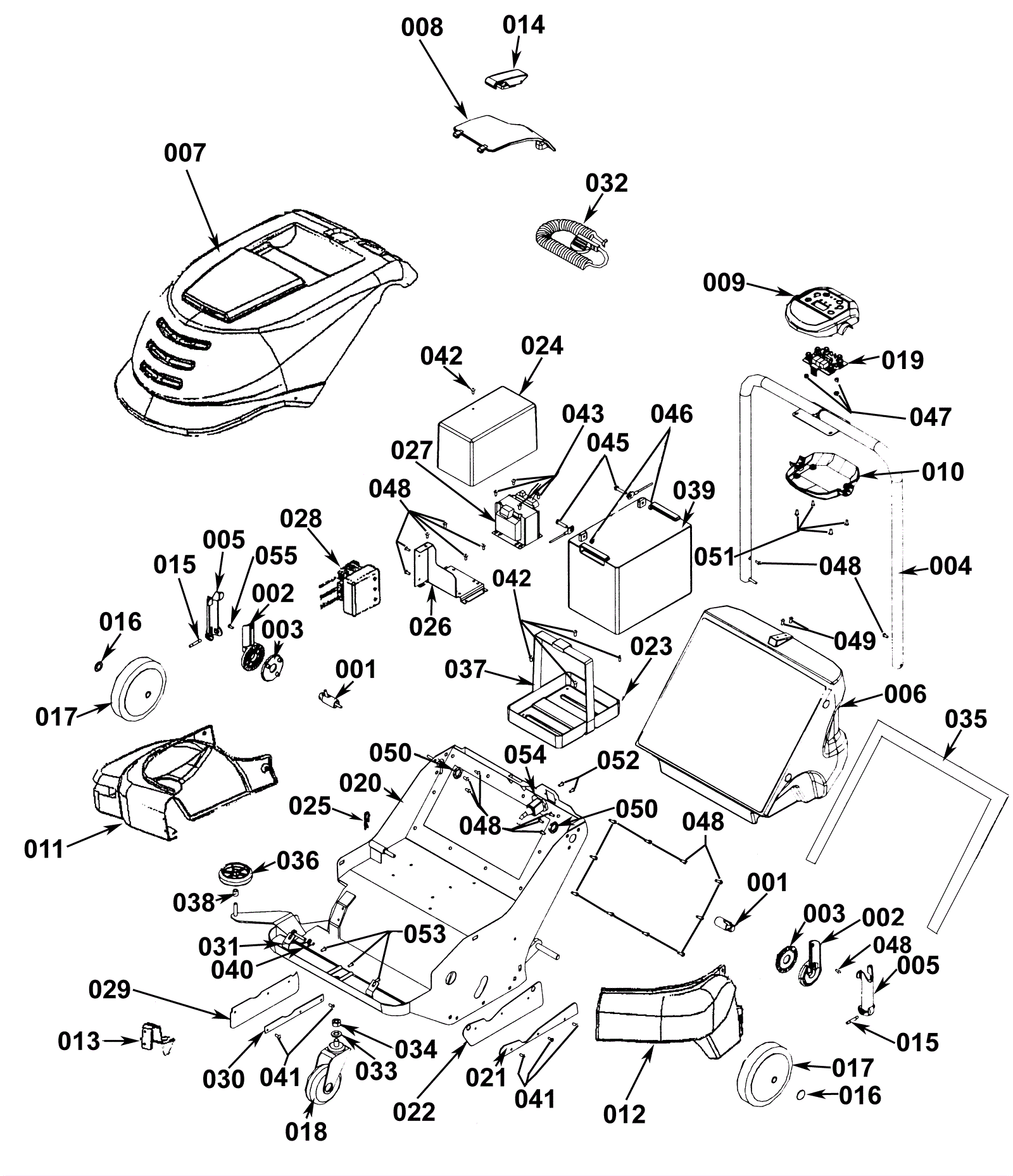

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
203-3156
|
Handle rotation pin |
2 |
|
|
002 |
203-3157
|
Serrated handle lock clamp |
2 |
|
|
003 |
175-4048
|
Handle locking pad |
2 |
|
|
004 |
175-4049
|
Handle tube with grip |
1 |
|
|
005 |
203-3160
|
Handle lock lever |
2 |
|
|
006 |
203-3161
|
Rear hopper |
1 |
|
|
007 |
203-3162
|
Eagle Power cover (OBSOLETE) |
1 |
|
|
008 |
203-3163
|
Eagle Power door |
1 |
|
|
009 |
203-3164
|
Housing top touch panel |
1 |
|
|
010 |
203-3165
|
Control housing bottom |
1 |
|
|
011 |
203-3302
|
Right side panel - Smart Vac 24 (OBSOLETE) |
1 |
|
|
012 |
203-4117
|
Left side panel - Smart Vac 24 (OBSOLETE) |
1 |
|
|
013 |
203-3168
|
Bracket |
1 |
|
|
014 |
203-3169
|
Hopper latch |
1 |
|
|
015 |
203-3170
|
Plug |
2 |
|
|
016 |
203-3171
|
Clip |
2 |
|
|
017 |
203-3172
|
Rear wheel |
2 |
|
|
018 |
203-3173
|
Front caster |
1 |
|
|
019 |
203-3174
|
Touch board control |
1 |
|
|
020 |
203-3175
|
Frame |
1 |
|
|
021 |
203-3176
|
Left side skirt plate |
1 |
|
|
022 |
203-3177
|
Left side skirt |
1 |
|
|
023 |
203-4860
|
Battery tray |
1 |
|
|
024 |
203-4861
|
Electrical cover |
1 |
|
|
025 |
203-3180
|
Pin |
1 |
|
|
026 |
203-3181
|
Electronics bracket |
1 |
|
|
027 |
203-3182
|
Battery charger/transformer |
1 |
|
|
028 |
203-3183
|
Control board |
1 |
|
|
029 |
203-3184
|
Right side skirt |
1 |
|
|
030 |
203-3185
|
Right side skirt plate |
1 |
|
|
031 |
203-1291
|
Washer |
1 |
|
|
032 |
203-3187
|
Charging cord |
1 |
|
|
033 |
189-1414
|
Washer D12 |
1 |
|
|
034 |
203-1976
|
Nut M12 self locking |
1 |
|
|
035 |
203-3190
|
Hopper gasket |
1 |
|
|
036 |
203-3191
|
Bumper wheel |
1 |
|
|
037 |
203-4240
|
Belt |
1 |
|
|
038 |
203-3193
|
Spacer |
1 |
|
|
039 |
162-0114
|
12V 50Ah AGM battery |
1 |
|
|
040 |
203-1356
|
Circlip |
1 |
|
|
041 |
203-3196
|
Screw 4 x 16 |
6 |
|
|
042 |
203-3197
|
Screw M4 x 16 |
9 |
|
|
043 |
203-3198
|
Screw 4 x 16 |
4 |
|
|
045 |
203-3200
|
Screw 6 x 18 |
2 |
|
|
046 |
203-3201
|
Nut M6 (OBSOLETE) |
2 |
|
|
047 |
203-3202
|
Nut M4 |
3 |
|
|
048 |
203-3203
|
Screw 5 x 15 |
20 |
|
|
049 |
203-3204
|
Screw 5 x 20 |
2 |
|
|
050 |
203-3205
|
Nut |
2 |
|
|
051 |
203-3206
|
Screw M5 x 16 |
4 |
|
|
052 |
203-3207
|
Screw |
2 |
|
|
053 |
999-0920
|
Screw M6-1 x 16mm button head socket |
3 |
|
|
054 |
203-3209
|
Charger wire harness and plug |
1 |
|
|
N/S |
991-2118
|
Battery charger connector (black) |
1 |
|
|
N/S |
203-3211
|
20amp main card fuse |
1 |
|
|
N/S |
203-3212
|
2.5amp charger and actuator fuse |
2 |
|
|
N/S |
991-2117
|
Battery charger connector (red) |
1 |
|
|
