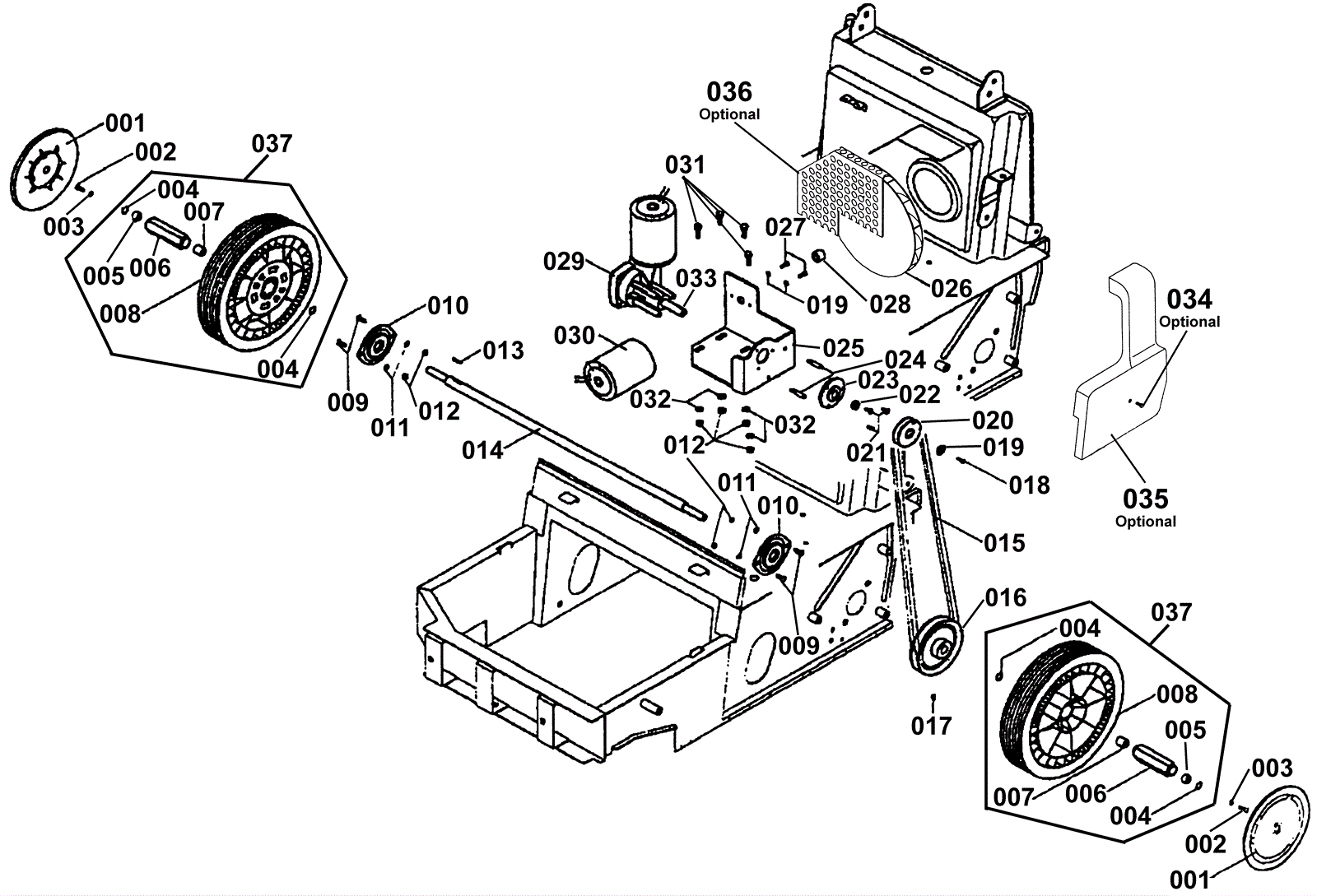

TK500 Lower Base Assembly

#PartDescriptionPriceReqNotesAvailability
001a 203-3021 Wheel cover (gray) $9.67 2 usually ships 1-5 days
001b 203-3022 Wheel cover (red) $51.04 2 usually ships 1-5 days
002 203-2109 Screw 6 x 10 $3.96 2 ships same day
003 203-1171 Washer 6 x 24 $2.90 2 ships same day
004 203-3023 Outer snap ring $0.99 4 usually ships 5-15 days
005 203-3024 Bearing $130.13 2 usually ships 5-15 days
006 203-3116 Hexagonal bushing $31.90 2 usually ships 1-5 days
007 203-3115 Bearing $32.75 2 usually ships 5-15 days
008 203-3025 Wheel $117.41 2 usually ships 5-15 days
009 203-3026 Screw M6 x 16 $3.96 4 usually ships 5-15 days
010 203-3027 Bearing and flange $27.72 2 usually ships 5-15 days
011 203-1291 Washer $2.90 4 usually ships 5-15 days
012 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
013 203-2079 Key 5x5x25 $6.05 1 usually ships 5-15 days
014 203-3028 Drive shaft $126.39 1 usually ships 5-15 days
015 203-3029 Main belt $37.62 1 usually ships 5-15 days
016 203-3030 Pulley $88.11 1 usually ships 1-5 days
017 203-3031 Dowel 6 x 10 $3.96 1 usually ships 1-5 days
018 203-3197 Screw M4 x 16 $3.96 1 usually ships 1-5 days
019 203-2168 Washer 5 x 20 $2.70 3 usually ships 1-5 days
020 203-3032 Pulley $26.40 1 usually ships 1-5 days
021 203-4478 Screw $3.96 3 usually ships 5-15 days
022 203-2067 Bearing $39.05 1 usually ships 1-5 days
023 203-3033 Bearing support $65.56 1 usually ships 1-5 days
024 203-1170 Belt support pin $5.41 2 usually ships 1-5 days
025 203-3034 Motor support $89.10 1 usually ships 1-5 days
026 203-3035 Fan $111.32 1 usually ships 5-15 days
027 203-3206 Screw M5 x 16 $3.96 2 ships same day
028 203-3037 Fan bushing (OBSOLETE) $11.94 1 usually ships 5-15 days
029 203-2844 Motor with gearbox $383.75 1 usually ships 1-5 days
030a 203-3118 Motor with smooth shaft $256.08 1 usually ships 5-15 days
030b 203-3042 Carbon brush $30.36 1 usually ships 1-5 days
031 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
032 189-1665 Washer $0.99 4 usually ships 1-5 days
033 203-3279 Key $17.16 1 ships same day
034 175-3899 Screw M6 x 10 (OBSOLETE) $3.30 1 optional usually ships 1-5 days
035 175-3900 Air conveyor $72.27 1 optional usually ships 1-5 days
036 175-3898 Fan guard $95.59 1 optional usually ships 1-5 days
037a 203-3040 Left wheel complete $261.80 1 Includes 004 thru 008 usually ships 5-15 days
037b 203-3039 Right wheel complete $253.99 1 Includes 004 thru 008 usually ships 1-5 days
N/S 203-3340 Retrofit motor kit $1,212.70 usually ships 1-5 days
