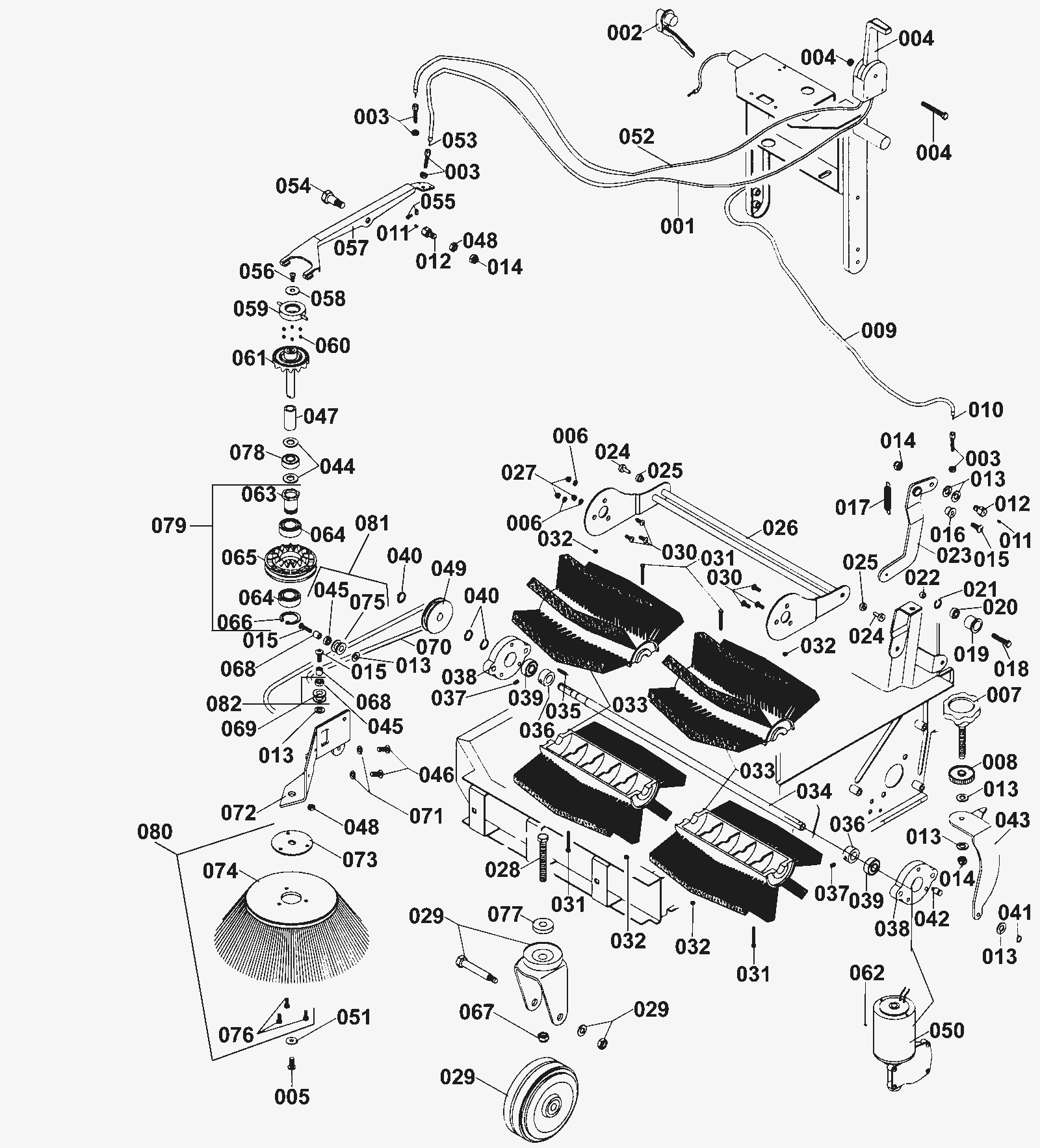

Brush System

#PartDescription ReqNotesAvailability
001a 189-1891 Drive cable 1
001b 203-3043 Side brush sheathing 1
002 203-3044 Right traction handle 1
003 203-1986 Turned adjuster 3
004 203-3062 Sidebrush drive lever 1
005 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
006 203-1291 Washer 6
008 203-3063 Nut M12 knurled ring 1
009 203-3045 Drive cable sheath 1
010 203-3046 Drive cable 1
011 203-3064 Dowel 5x6 2
012 203-3065 Wire fixing screw 2
013 203-3047 Washer nylon 7
014 999-0579 Nut M8-1.25 hex coarse thread zinc 3
015 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 3
016 203-1257 Belt tightener lever 1
017 203-3066 Traction spring 1
018 203-5102 Tension roller 1
019 203-3068 Belt tightener roll 1
020 203-3069 Bearing 1
021 203-4187 Seeger 1
022 203-4188 Spacer 1
023 203-3072 Belt tightener bracket 1
024 203-3073 Pin for rocker 2
025 203-3074 Rocker bushing 2
026 203-3075 Rocker 1
027 999-0469 Nut M6-1 nylon insert lock zinc plated 6
028 203-3049 Screw 12x40 1
029 203-3077 Rotary support wheel grey 1
030 203-1949 Screw 6x20 (OBSOLETE) 6
031 203-3078 Screw 5x70 4
032 203-2041 Nut M5 4
033 203-3079 Center brush 1 Great for light material, such as lint and paper.
033b 991-1824 4mm allen wrench 1
034 203-3080 Brush shaft 1
035 189-0643 Tongue 1
036 203-1191 Spacer 2
037 203-4192 Pin 2
038 203-3076 Bearing support 2
039 203-1169 Bearing 6202 2RS 2
040 203-1242 Outer snap ring 0 15 3
041 203-1988 Outer snap ring 1
042 203-3082 Brush adjusting fixing pivot 1
043 203-3083 Main brush adjustment bracket 1
044 203-3084 Side arm felt washer 2
045 203-3085 Bearing 2
046 999-0939 Screw M8-1.25 x 10mm button head socket stainless steel 2
047 203-3086 Side brush shaft spacer 1
048 999-0579 Nut M8-1.25 hex coarse thread zinc 2
049 203-3087 Pulley 1
050a 203-2844 Motor with gearbox 1
050b 203-3042 Carbon brush 1
050c 203-3050 Replacement gear 1
051 203-1171 Washer 6 x 24 1
052 203-3366 Side brush sheathing 1
053 203-3090 Side brush lifting cable 1
054 203-3091 Pin 17 x 34 1
055 203-1992 Clamp 1
056 203-3092 Screw M8 x 22 1
057 203-3093 Side brush lifting lever 1
058 203-3094 Washer M8 x 32 1
059 203-3095 Ring for the side brush bearing 1
060 203-3096 Ball 11/32 inch 6
061a 203-3097 Complete movement ring 1
061b 203-5098 Toothed ring 1
062 203-3279 Key 1
063 203-3100 Bushing for bearings 1
064 203-3101 Bearing 2
065 203-3103 Idle toothed ring 1
066 189-0093 Snap Ring 1
067 203-1976 Nut M12 self locking 1
068 203-3105 Spacer 2
069 203-3107 Pulley 27 x 15 1
070 203-3051 Side brush belt 1
071 203-1174 Washer 8 x 24 2
072 203-3108 Side brush support 1
073 203-3109 Side brush dragging flange 1
074 203-3111 Side brush 1
075 203-3113 Pulley 30 x 15 1
076 203-1164 Screw 6x10 3
077 203-3114 Spacer 1
078 203-3115 Bearing 1
079 203-3102 Complete idle tooth ring 1
080 203-3110 Complete side brush 1
080b 991-1825 10mm wrench 1
081 203-3112 Complete pulley 27 x 15 1
082 203-3106 Complete pulley 30 x 15 1
N/S 203-3055 Microswitch 1
N/S 203-3340 Retrofit motor kit
N/S 203-3056 Microswitch assembly 1
