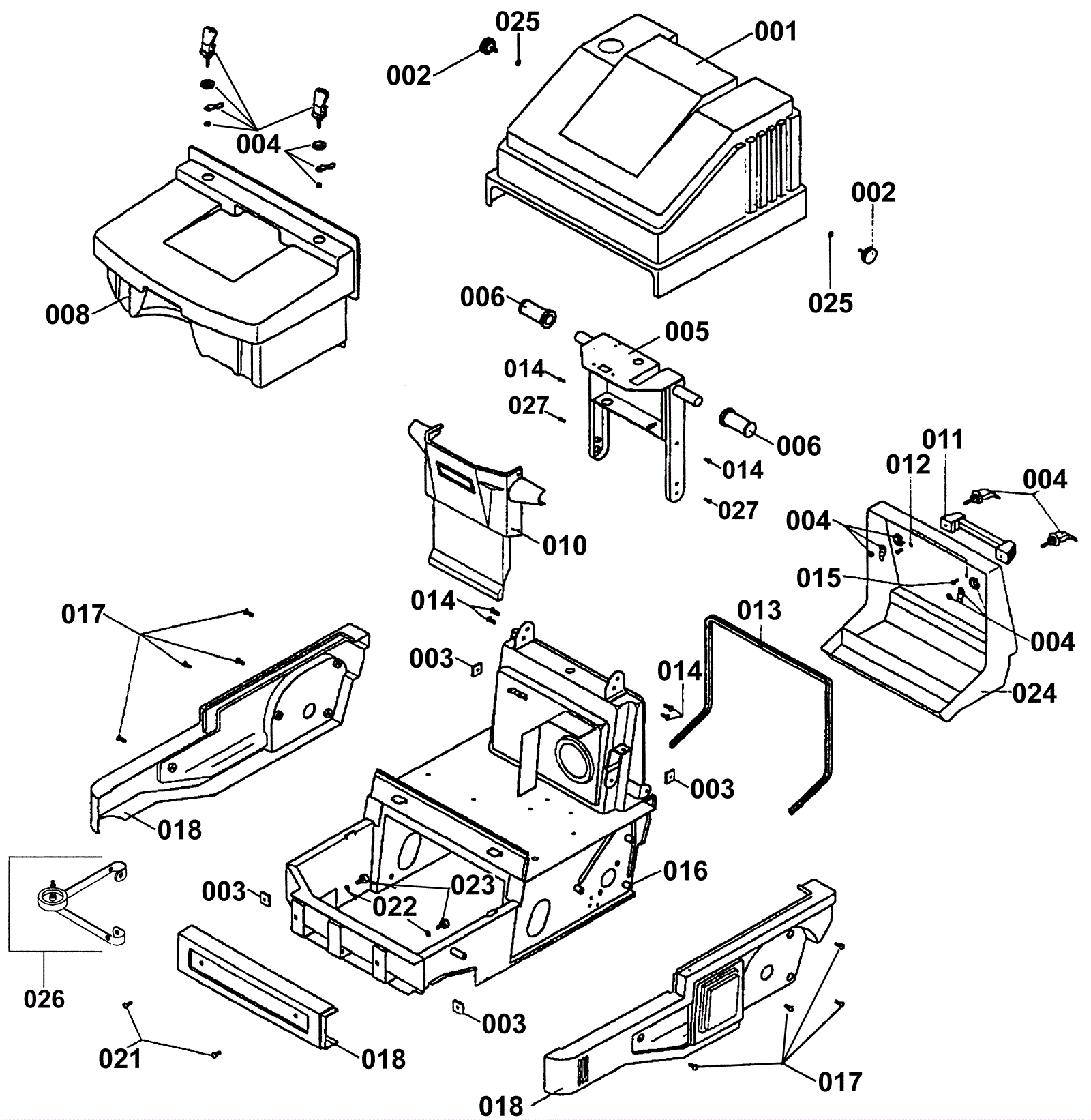

TK500 Upper Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 203-3002 Red upper cover $746.02 1 usually ships 1-5 days
002 203-1160 Handwheel 0 40 M 8x15 $23.05 2 usually ships 15-24 days
003 203-3003 Nut M8 $6.23 4 usually ships 15-24 days
004 203-2005 Hopper lock $60.26 4 usually ships 15-24 days
005 203-3004 Painted handle weldment $376.74 1 usually ships 1-5 days
006 203-3005 Rubber handle grip $41.88 2 usually ships 15-24 days
008 203-3006 Front drawer (red) $698.39 1 usually ships 1-5 days
010 203-3020 Gray cable casing (for handle) $325.28 1 usually ships 1-5 days
011 203-3120 Rear drawer handle bar $21.13 1 usually ships 1-5 days
012 203-1171 Washer 6 x 24 $3.10 2 ships same day
013 203-3121 Back drawer gasket $55.55 1 usually ships 15-24 days
014 999-0920 Screw M6-1 x 16mm button head socket $0.99 8 ships same day
015 999-0773 Screw M6-1 x 16mm flat socket head stainless steel $0.99 2 ships same day
016 203-3009 Frame (OBSOLETE) $737.77 1 usually ships 1-5 days
017 999-0939 Screw M8-1.25 x 10mm button head socket stainless steel $1.53 8 ships same day
018 203-3012 Cover kit $433.37 1 usually ships 15-24 days
021 203-1942 Screw M8 x 16 $4.25 2 usually ships 15-24 days
022 203-4326 Nut $3.67 2 usually ships 15-24 days
023 203-3122 Screw M6 x 15mm $21.42 2 usually ships 15-24 days
024 203-3014 Back drawer (gray) $359.46 1 usually ships 1-5 days
025 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
026 203-3019 Bumper complete $229.81 1 usually ships 15-24 days
027 999-0910 Screw M8-1.25 x 25mm button head socket $3.19 2 ships same day
