415DS

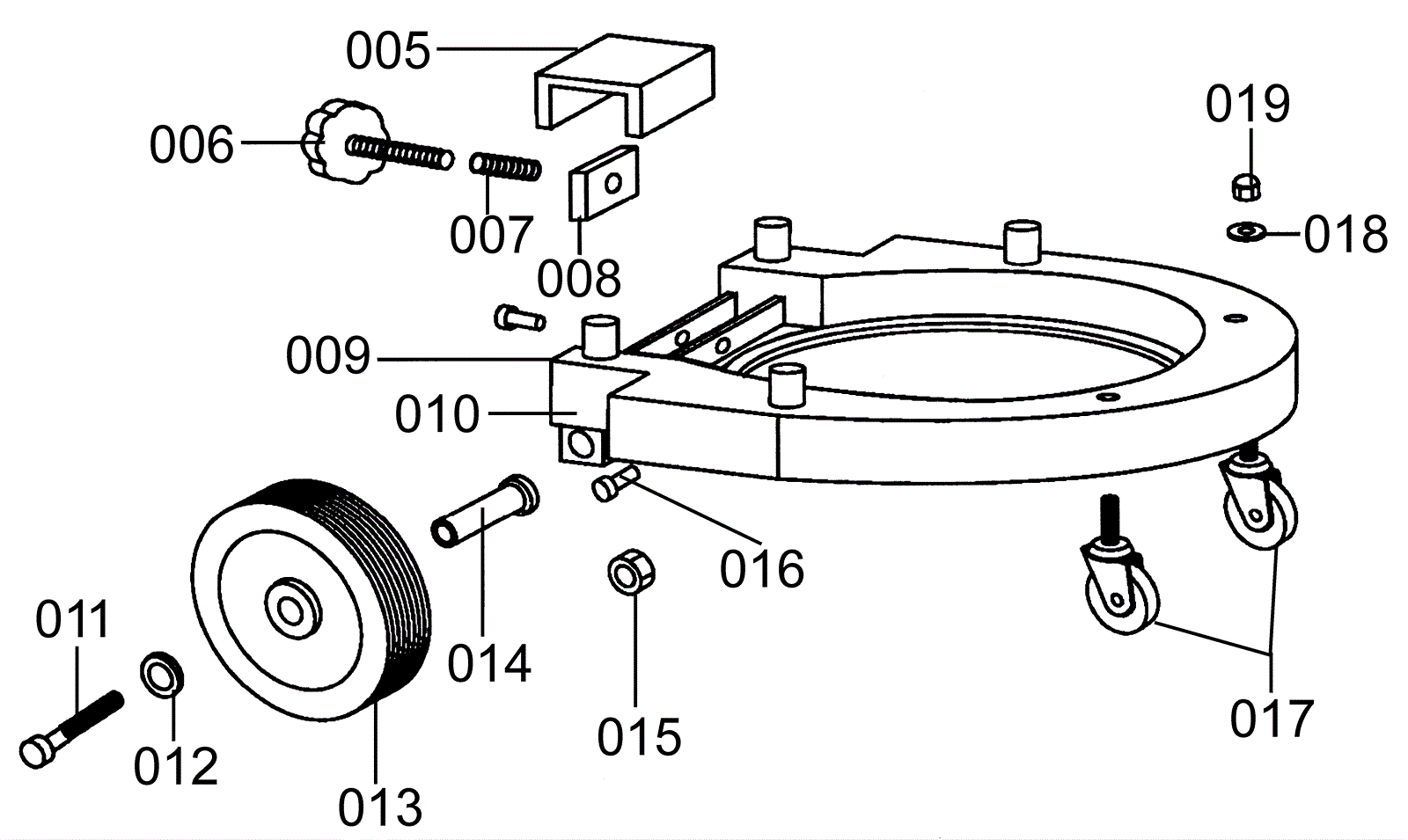

Base Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
005
203-0381
Block
$3.61
1
usually ships 1-5 days
006
203-0382
Hand wheel 8 x 60
$16.53
1
usually ships 1-5 days
007
203-0383
Spring
$0.99
1
usually ships 1-5 days
008
203-0384
Threaded plate
$3.64
1
usually ships 1-5 days
009
203-0380
Rivet 5 x 11
$0.99
2
usually ships 1-5 days
010
203-0385
Cart base
$68.19
1
usually ships 1-5 days
011
203-0386
Screw 12 x 140
$5.50
2
usually ships 1-5 days
012
203-0387
Washer M12
$0.99
2
usually ships 1-5 days
013
203-0346
Wheel
$31.77
2
usually ships 10-12 days
014
203-0388
Bushing
$1.99
2
usually ships 1-5 days
015
203-0389
Spacer
$1.57
2
usually ships 1-5 days
016
203-0305
Rivet M5 x 19mm
$0.99
2
usually ships 1-5 days
017
203-0373
Caster wheel
$20.58
2
usually ships 10-12 days
018
203-0371
Washer M10
$0.99
6
usually ships 1-5 days
019
203-0372
Nut M10
$2.19
2
usually ships 1-5 days
