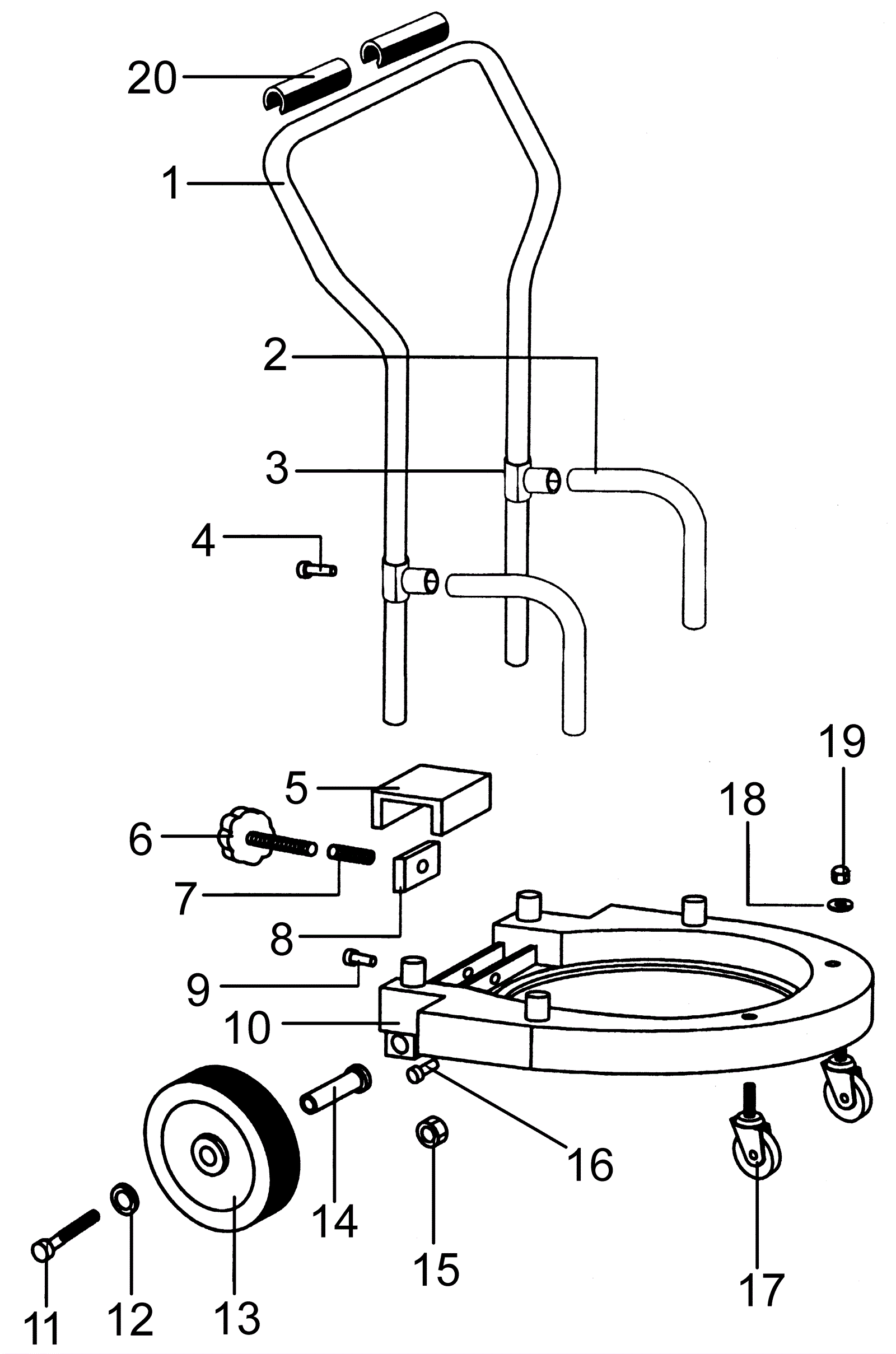

415S Cart Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-0361 Handle $7.03 1 usually ships 1-5 days
2 203-0378 Handle support $8.60 2 usually ships 1-5 days
3 203-0379 T-tube $3.69 2 usually ships 1-5 days
4 203-0380 Rivet 5 x 11 $0.99 2 usually ships 1-5 days
5 203-0381 Block $3.61 1 usually ships 1-5 days
6 203-0382 Hand wheel 8 x 60 $16.53 1 usually ships 1-5 days
7 203-0383 Spring $0.99 1 usually ships 1-5 days
8 203-0384 Threaded plate $3.64 1 usually ships 1-5 days
9 203-0380 Rivet 5 x 11 $0.99 2 usually ships 1-5 days
10 203-0385 Cart base $68.19 1 usually ships 1-5 days
11 203-0386 Screw 12 x 140 $5.50 2 usually ships 1-5 days
12 203-0387 Washer M12 $0.99 2 usually ships 1-5 days
13 203-0346 Wheel $33.99 2 usually ships 11-14 days
14 203-0388 Bushing $1.99 2 usually ships 1-5 days
15 203-0389 Spacer $1.57 2 usually ships 1-5 days
16 203-0380 Rivet 5 x 11 $0.99 2 usually ships 1-5 days
17 203-0373 Caster wheel $22.02 2 usually ships 11-14 days
18 203-0371 Washer M10 $0.99 2 usually ships 1-5 days
19 203-0372 Nut M10 $2.19 2 usually ships 1-5 days
20 203-0360 Handle grip $1.78 2 usually ships 11-14 days
