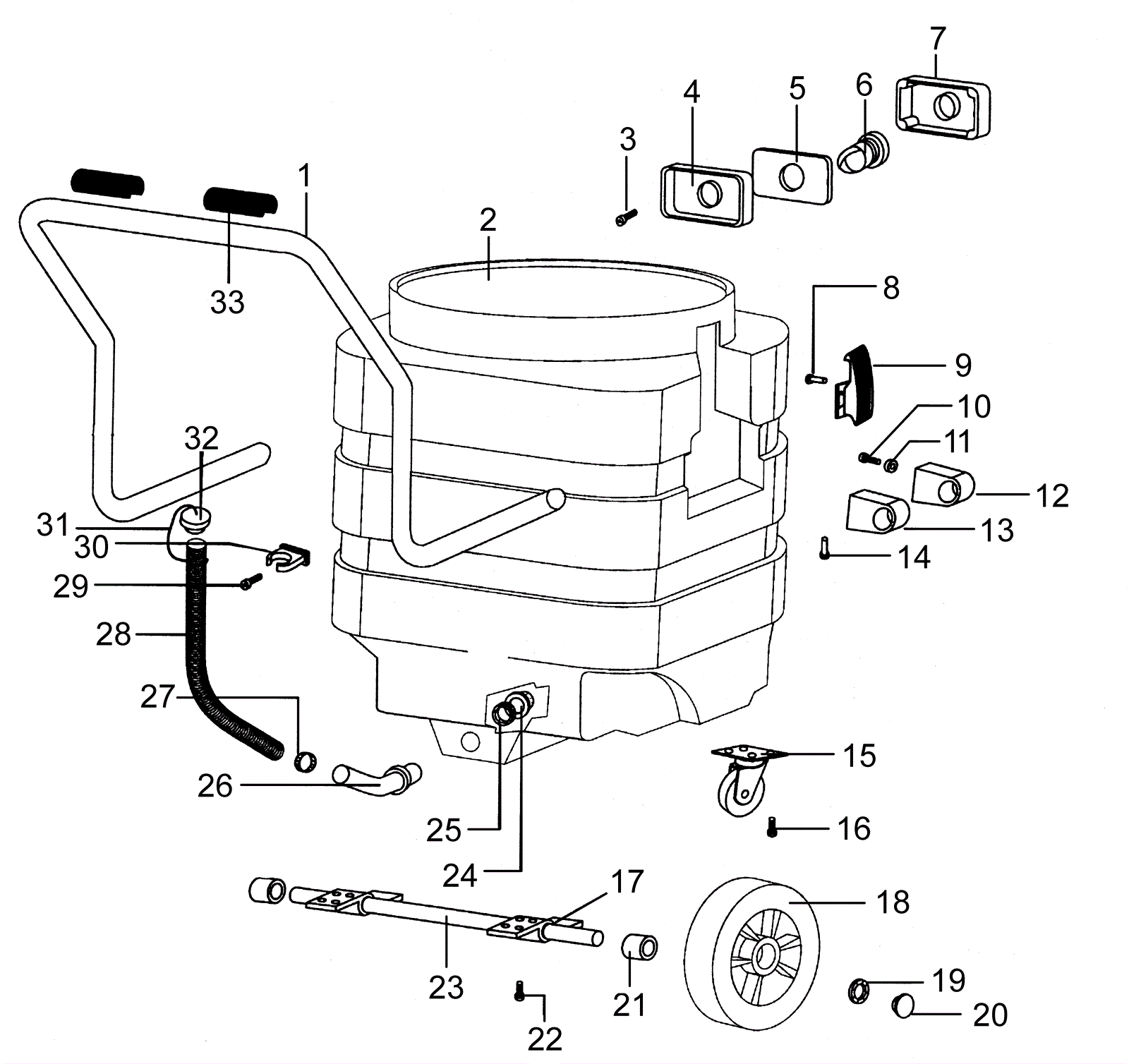

429P Tank and Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-0336 Handle $69.84 1 usually ships 1-5 days
2 203-4612 Poly tank (black) (OBSOLETE) Call for price 1 usually ships 1-5 days
3 203-0307 Screw M5 x 30mm $0.90 4 usually ships 1-5 days
4 203-4613 Tank retainer (OBSOLETE) Call for price 1 usually ships 1-5 days
5 203-0308 Gasket $3.32 1 usually ships 5-15 days
6a 203-0311 Deflector $6.30 1 ships same day
6b 203-4614 Deflector (430P) $2.04 1 usually ships 1-5 days
7a 203-0339 Hose adapter $14.41 1 usually ships 5-15 days
7b 203-4615 Inlet cover with button (430P) (OBSOLETE) Call for price 1 usually ships 1-5 days
8 203-0340 Rivet $0.90 4 ships same day
9 203-0306 Latch $7.68 2 usually ships 5-15 days
10 203-0320 Screw M5 x 35mm $1.22 8 usually ships 5-15 days
11 203-0365 Washer $0.90 8 usually ships 1-5 days
12 203-4616 Front handle support (OBSOLETE) Call for price 2 usually ships 1-5 days
13 203-4617 Rear handle support $3.25 2 usually ships 1-5 days
14 203-4618 Rivet 4.8 x 17 (OBSOLETE) Call for price 2 usually ships 1-5 days
15 203-0344 Caster wheel $17.19 2 usually ships 5-15 days
16 203-0315 Screw M4 x 15mm $0.90 8 usually ships 5-15 days
17 203-0345 Axle support $28.32 2 usually ships 5-15 days
18 203-0346 Wheel $28.31 2 usually ships 5-15 days
19 203-0347 End cap $1.42 2 usually ships 5-15 days
20 203-4619 Wheel cap (OBSOLETE) Call for price 2 usually ships 1-5 days
21 203-0349 Wheel spacer $0.90 2 usually ships 1-5 days
22 203-0276 Screw M5 x 20mm $0.90 8 usually ships 5-15 days
23 203-0350 Axle $14.29 1 usually ships 1-5 days
24 203-0351 Nut flange $5.13 1 usually ships 1-5 days
25 203-0352 Gasket $3.07 1 usually ships 1-5 days
26 203-0353 Elbow $14.81 1 usually ships 1-5 days
27 203-4620 Clamp $1.67 1 usually ships 5-15 days
28 203-0355 Drain hose $20.63 1 usually ships 5-15 days
29 203-0356 Screw M5 x 25mm $1.00 1 usually ships 5-15 days
30 203-0357 Hose clip $8.15 1 usually ships 5-15 days
31 203-0358 Plug strap $5.92 1 usually ships 5-15 days
32 203-0359 Hose plug $6.84 1 usually ships 5-15 days
33 203-0360 Handle grip $1.62 2 usually ships 5-15 days
