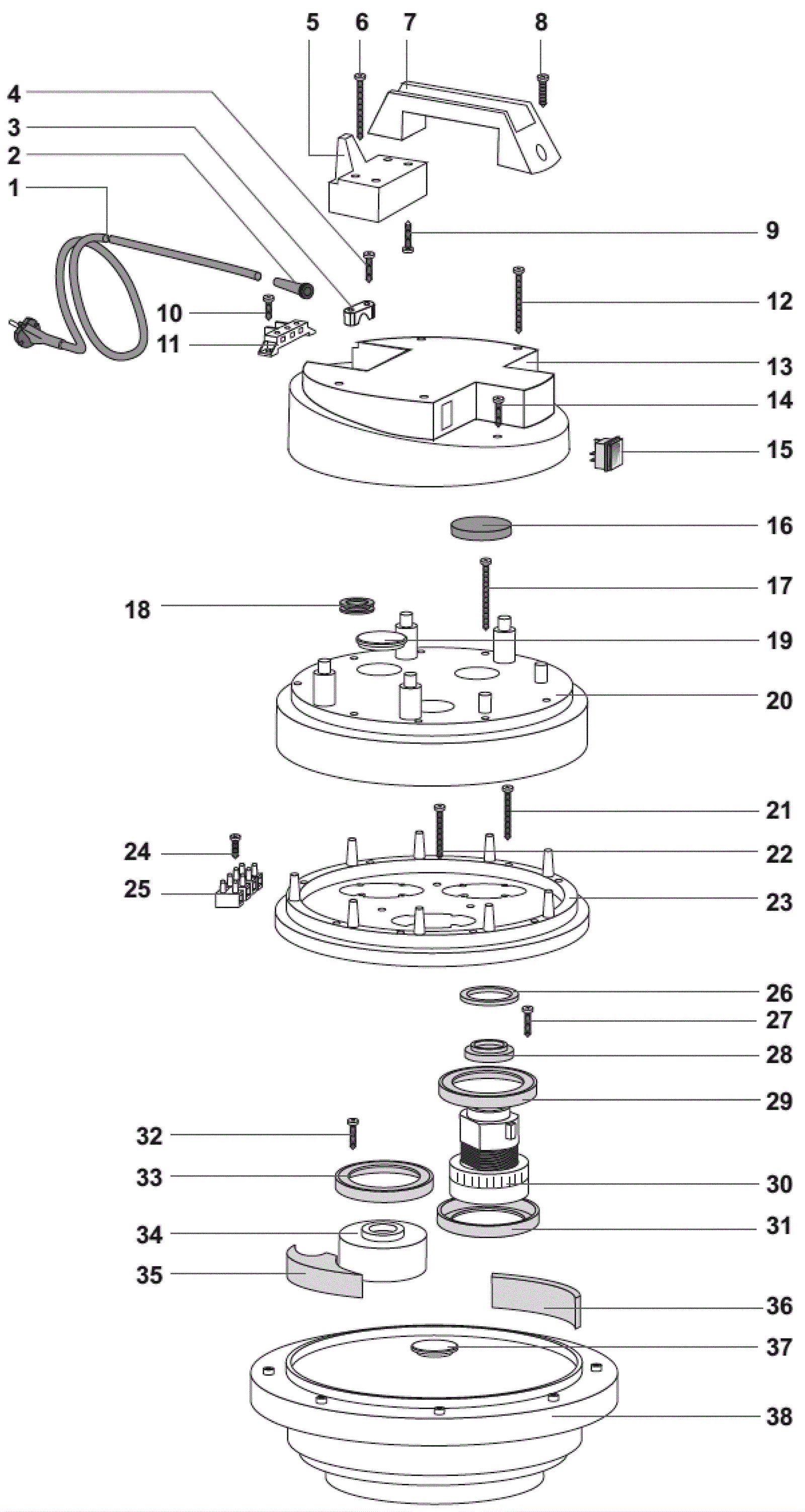

429P Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 203-0281 16/3 power cord 27 foot $71.66 1 (415P/415S/415ST/415PLT) usually ships 1-5 days
1b 203-4621 Power cord 14 x 3 (OBSOLETE) Call for price 1 (429P) usually ships 1-5 days
2 203-0280 Strain relief (black) $0.91 1 ships same day
3 203-0282 Cord clamp $0.90 1 usually ships 1-5 days
4 203-0276 Screw M5 x 20mm $0.90 2 usually ships 5-15 days
5 203-4597 Cord hook $11.60 1 usually ships 5-15 days
6 173-4261 Screw M5 x 30mm $6.55 4 usually ships 7-19 days
7 203-4598 Handle $8.56 1 usually ships 1-5 days
8 203-0307 Screw M5 x 30mm $0.90 1 usually ships 1-5 days
9 203-0276 Screw M5 x 20mm $0.90 2 usually ships 5-15 days
10 203-0286 Screw M5 x 14mm $0.90 2 usually ships 1-5 days
11 203-4599 Terminal block $10.29 1 usually ships 5-15 days
12 173-4261 Screw M5 x 30mm $6.55 4 usually ships 7-19 days
13 203-4600 Single motor cover $33.06 1 usually ships 5-15 days
14 203-0276 Screw M5 x 20mm $0.90 2 usually ships 5-15 days
15 203-0275 On/off switch $11.24 1 usually ships 5-15 days
16 203-0283 Filter $2.35 1 usually ships 5-15 days
17 203-4601 Screw 5 x 55 zinc $0.90 9 usually ships 1-5 days
18 203-0468 Grommet $1.75 1 usually ships 1-5 days
19 203-0425 Plug $1.87 2 usually ships 1-5 days
20 203-4602 Motor cover $28.87 1 usually ships 5-15 days
21 203-0401 Screw M5 x 40mm $0.90 9 usually ships 1-5 days
22 203-0401 Screw M5 x 40mm $0.90 3 usually ships 1-5 days
23 173-4274 Motor base (gray) $77.00 1 usually ships 1-5 days
24 203-4603 Scerw 4 1/2 x 20 (OBSOLETE) Call for price 1 usually ships 1-5 days
25 203-4604 Terminal board $9.90 1 usually ships 1-5 days
26 203-0285 Motor exhaust gasket $3.68 1 usually ships 5-15 days
27 203-0276 Screw M5 x 20mm $0.90 4 usually ships 5-15 days
29 203-0289 Motor gasket $5.00 1 usually ships 5-15 days
30 203-4301 120V vacuum motor $331.10 1 usually ships 5-15 days
31 203-0289 Motor gasket $5.00 1 usually ships 5-15 days
32 203-0276 Screw M5 x 20mm $0.90 8 usually ships 5-15 days
33 203-0289 Motor gasket $5.00 2 usually ships 5-15 days
34 203-4605 Plug $14.28 2 usually ships 1-5 days
35 203-0325 Filter $9.00 3 usually ships 5-15 days
36 203-0326 Filter $0.90 3 usually ships 5-15 days
37 203-0327 Cap $1.68 2 usually ships 1-5 days
38 203-4606 Base with gasket $41.04 1 usually ships 1-5 days
