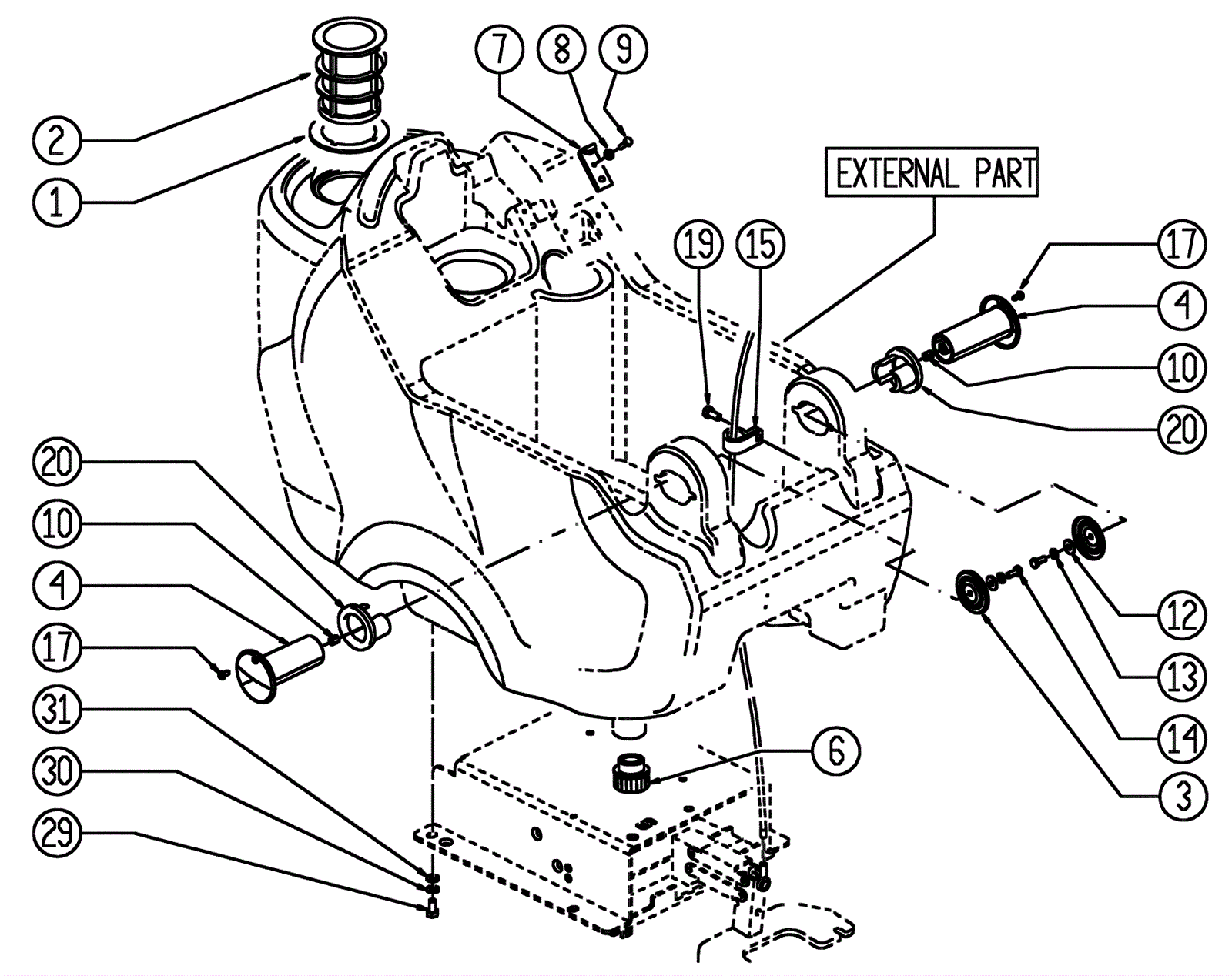

Water Tank Assembly

#PartDescription ReqNotesAvailability
1 203-4753 Gasket 1
2 203-4754 Filter 1
3 203-4755 Sheet metal 2
4a 189-1109 Pin 2 (before 09/10/2014)
4b 203-6144 Pin 2 (after 09/11/2014)
6a 203-4757 Cap 1 (before 12/13/2016)
6b 203-5514 1/2 inch cap 1 (after 12/14/2016)
7 203-4758 Plate 1
8 203-0971 Washer D6 1
9 203-4759 Screw 1
10 189-1108 Insert 2
12 189-1391 Washer D6 2
13 203-0971 Washer D6 2
14 189-1497 Screw 6 x 16 inch 2
15 203-4761 P clamp 2
17 375-9544 Screw 5 x 12 2 (before 09/10/2014)
19 203-4713 Screw 1
20 203-4763 Rubber insert 2
29 189-1499 Screw 4
30 189-1511 Washer 4
31 189-0897 Washer D8 4
