CT90

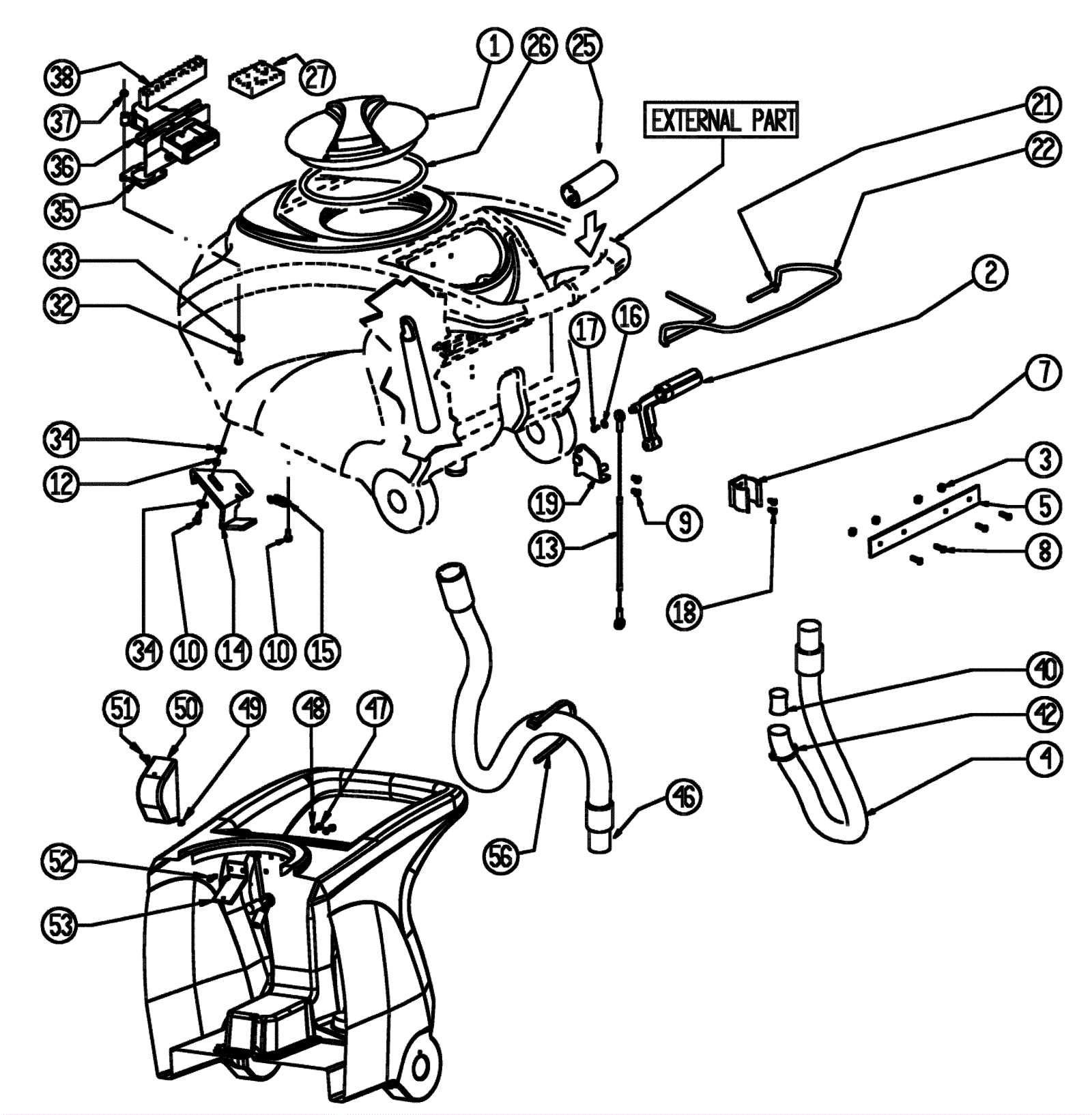

Tank Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
203-4584
Cap
$78.63
1
usually ships 5-15 days
2
203-3061
Lever
$53.72
1
ships same day
3
203-0524
Nut M6 lock
$5.50
4
usually ships 1-5 days
4
203-4683
Drain hose
$54.55
1
ships same day
5
203-4684
Plate
$15.25
1
usually ships 1-5 days
7
203-4318
Clasp
$34.64
1
usually ships 5-15 days
8
189-1465
Screw
$4.77
4
usually ships 5-15 days
9
189-1357
Screw 6 x 12 inch
$4.77
2
usually ships 5-15 days
10
189-1497
Screw 6 x 16 inch
$3.85
3
usually ships 5-15 days
12
203-4686
Spacer
$4.86
2
usually ships 1-5 days
13a
203-4582
Squeegee cable
$36.43
1
(before 10/2013)
usually ships 5-15 days
13b
203-5967
Squeegee lift cable
$34.97
1
(after 10/2013)
usually ships 5-15 days
14
203-4687
Handle
$45.98
1
usually ships 1-5 days
15
203-4688
Spring
$9.42
1
usually ships 1-5 days
16
203-0145
Washer 4-16 inch
$0.99
1
usually ships 5-15 days
17
203-1733
Screw 12 x 45 inch zinc
$5.74
1
usually ships 5-15 days
18
189-1431
Screw
$4.64
2
usually ships 1-5 days
19a
203-4690
Squeegee bracket
$107.09
1
(before 09/06/2016)
usually ships 5-15 days
19b
203-3656
Bracket
$16.76
1
(after 09/07/2016)
usually ships 5-15 days
21
189-0897
Washer D8
$1.10
2
usually ships 5-15 days
22
203-4691
Lever
$54.89
1
usually ships 1-5 days
25
203-4692
Knob
$42.21
2
usually ships 1-5 days
26
189-0293
Gasket
$42.90
1
usually ships 5-15 days
27
203-4693
Filter
$14.18
1
usually ships 5-15 days
32
203-4694
Screw
$2.35
2
usually ships 1-5 days
33
203-0235
Washer
$0.99
2
usually ships 5-15 days
34
189-1393
Washer
$4.75
4
usually ships 1-5 days
35
203-4696
Gasket
$5.67
1
usually ships 1-5 days
36
203-4697
Box
$65.26
1
usually ships 1-5 days
37
189-1472
Nut M4
$0.99
2
usually ships 1-5 days
38
203-4699
Gasket
$5.50
1
usually ships 1-5 days
40
203-4700
Gasket
$9.14
1
usually ships 5-15 days
42
189-0123
Clamp 35-40 inch
$14.96
1
usually ships 5-15 days
46
203-4339
Vacuum hose assembly
$59.03
1
usually ships 5-15 days
47
203-0789
Nut
$3.30
2
usually ships 5-15 days
48
189-1353
Washer D5
$4.75
2
usually ships 1-5 days
49
203-4703
Washer
$2.35
1
usually ships 1-5 days
50
203-4704
Cover
$9.48
1
usually ships 1-5 days
51
203-4705
Screw
$5.74
1
usually ships 1-5 days
52
189-1508
Turned eye screw
$4.77
2
usually ships 1-5 days
53
203-4707
Bracket
$11.62
1
usually ships 1-5 days
56
203-4708
Clamp
$2.33
1
usually ships 5-15 days
