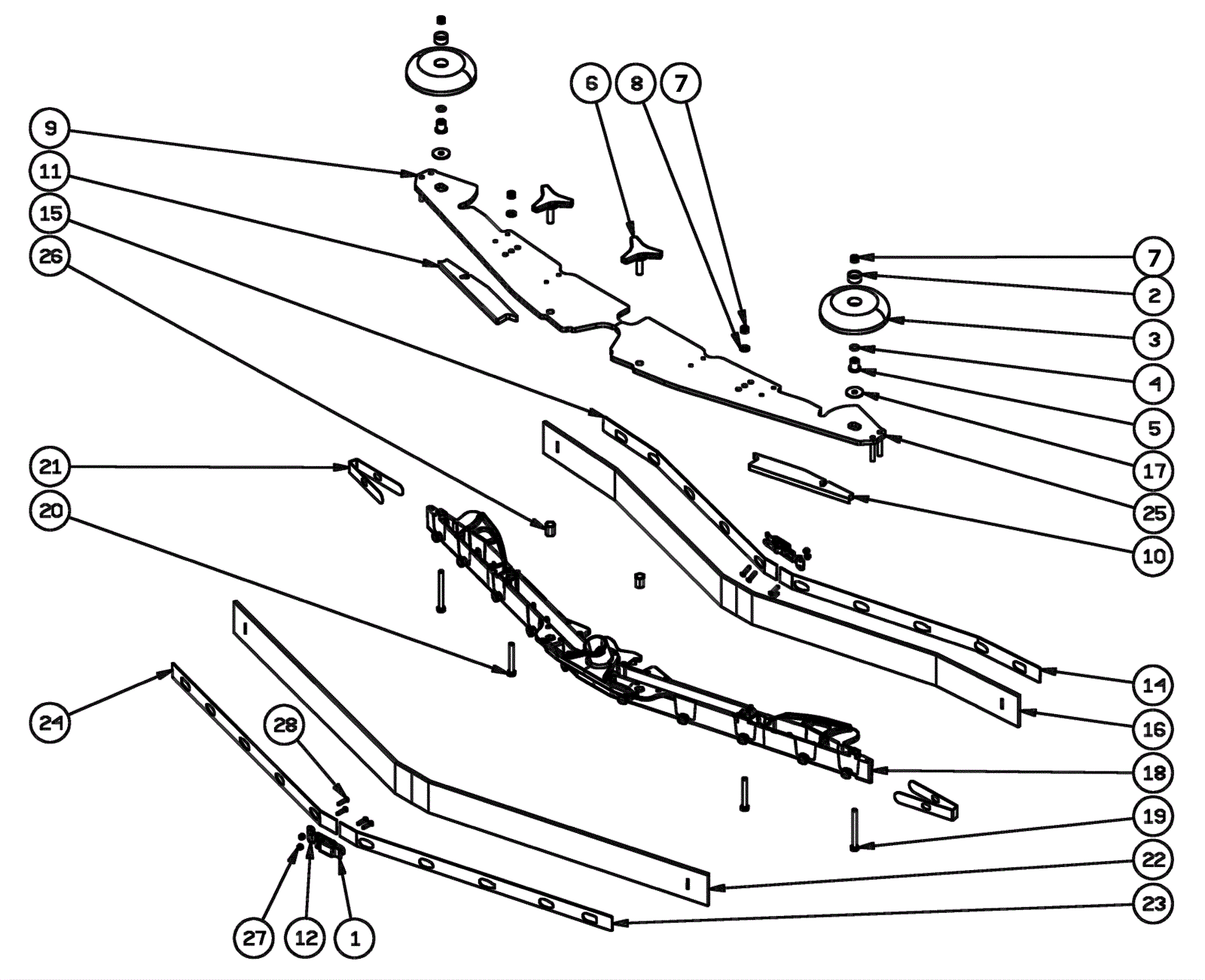

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 203-4765 Retainer closure 2 (after 09/26/2013)
2 189-5086 Bushing 2
3 189-0060 Wheel 2
4 189-0181 Gasket 2
5 203-0920 Spacer 2
6 203-4768 Knob 2
7 375-9499 Nut M6 inox 2
8 203-1286 Washer D6 2
9 203-5434 Plate 1
10 203-5437 Gasket 1
11 203-5436 Gasket 1
12 203-4772 Hook 2 (after 09/26/2013)
14a 203-5620 Bracket 1 (before 09/25/2013)
14b 203-5420 Sheet metal 1 (after 09/26/2013)
15 203-5422 Sheet metal 1
16a 203-5008 Squeegee blade front 1 (before 09/2013)
16b 203-3382 Front latex blade 1 (after 09/2013)
18 189-5084 Body 1
19 203-4778 Screw 6 x 65 2
20 203-4779 Screw M6 x 50mm 2
21 203-4585 Closure 2
22a 203-5027 Squeegee blade rear 1 (before 09/2013)
22b 203-3383 Rear latex blade 1 (after 09/2013)
23a 203-5622 Bracket 1 (before 09/25/2013)
23b 203-5425 Sheet metal 1 (after 09/26/2013)
24a 203-5623 Bracket 1 (before 09/25/2013)
24b 203-5427 Sheet metal 1 (after 09/26/2013)
25 203-5433 Plate 1
26 203-4786 Insert 2
27 203-4787 Nut M3 8 (after 09/26/2013)
28 203-4788 Screw 3 x 8 inch 8 (after 09/26/2013)
