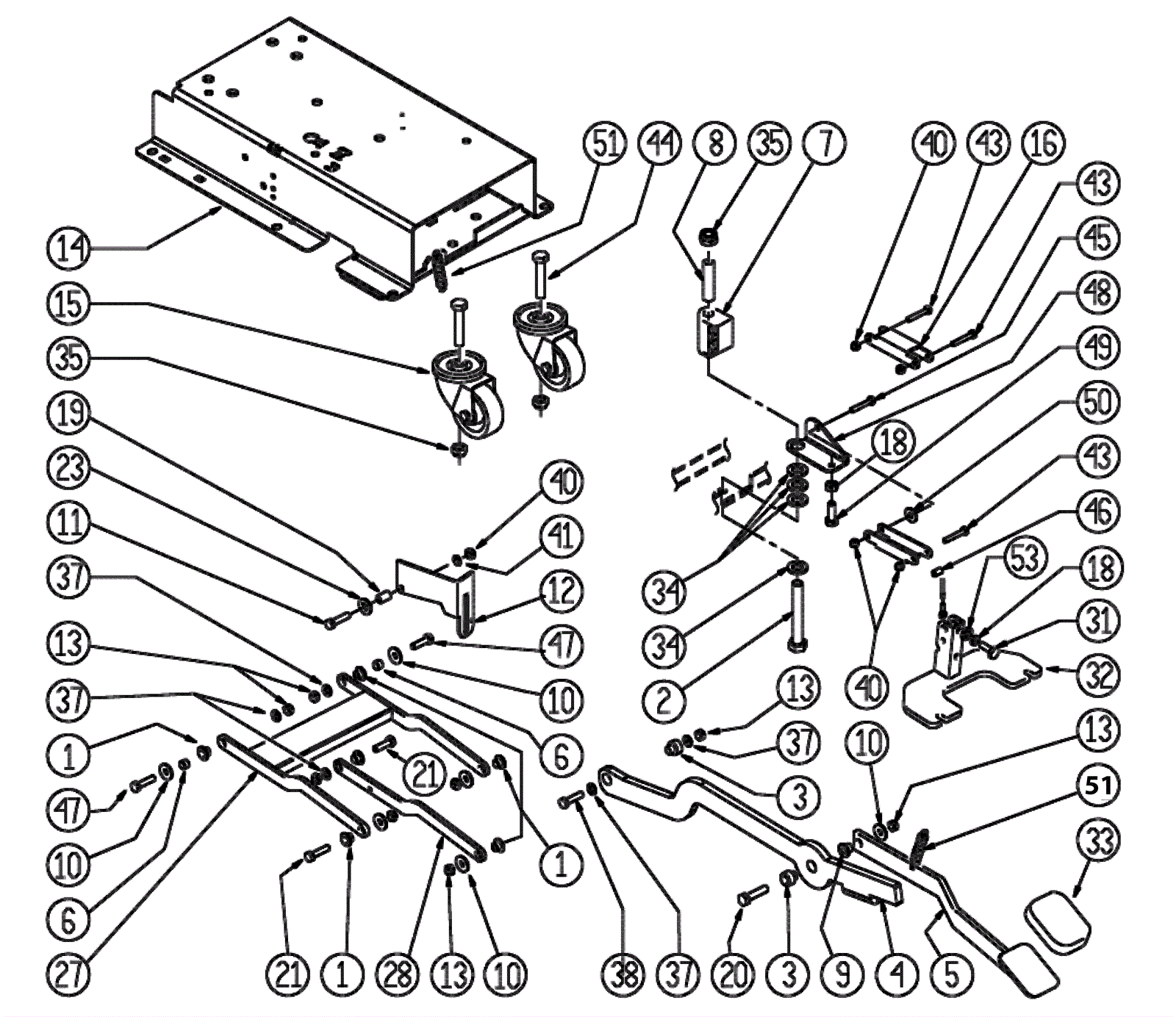

CT90 Frame Assembly-before 10/2013

#PartDescriptionPriceReqNotesAvailability
1 203-4804 Bushing $5.50 6 usually ships 1-5 days
2 203-3651 Screw M12 x 90 $9.93 1 usually ships 10-12 days
3 203-4806 Bushing $18.40 2 usually ships 10-12 days
4 203-4340 Lever $82.35 1 usually ships 1-5 days
5a 203-3652 Lever Call for price 1 (before 06/23/2013) usually ships 10-12 days
5b 203-3653 Lever $212.08 1 (after 06/23/2013) usually ships 10-12 days
6 189-0168 Bushing $3.39 2 usually ships 1-5 days
7 203-4365 Block $10.35 1 usually ships 10-12 days
8 203-4810 Pin $16.01 1 usually ships 10-12 days
9 203-4811 Bushing $33.62 1 usually ships 10-12 days
10 189-1400 Washer $2.99 6 usually ships 10-12 days
11 203-4812 Screw $5.06 1 usually ships 10-12 days
12 203-4813 Plate $23.41 1 usually ships 10-12 days
13 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 7 ships same day
14 203-3654 Frame $536.70 1 usually ships 10-12 days
15a 203-4816 Castor wheel $74.03 2 (before 03/17/2013) usually ships 10-12 days
15b 203-4815 Castor wheel $100.51 2 (after 03/18/2013) usually ships 10-12 days
16 203-4817 Lever arm $58.53 2 usually ships 1-5 days
18 189-1492 Nut M8 $0.99 1 usually ships 10-12 days
19 189-0523 Bushing $10.41 1 usually ships 1-5 days
20 189-1401 Screw $4.20 1 usually ships 1-5 days
21 189-1479 Screw 8 x 25 inch $4.20 4 usually ships 1-5 days
23 189-1393 Washer $2.99 1 usually ships 1-5 days
27 203-5161 Arm $89.85 1 usually ships 10-12 days
28 203-4826 Arm $26.81 1 usually ships 1-5 days
31 189-1344 Screw M8 $4.20 1 usually ships 10-12 days
32 203-4827 Plate $116.88 1 usually ships 10-12 days
33 203-4828 Cover $8.01 1 usually ships 10-12 days
34 203-1341 Washer D12 $2.99 4 usually ships 1-5 days
35 999-0503 Nut M12-1.75 hex stainless steel $1.91 3 ships same day
37 189-0897 Washer D8 $2.99 4 usually ships 10-12 days
38 203-5162 Screw $4.20 1 usually ships 10-12 days
40 189-1536 Nut with nylon ring $5.50 5 usually ships 5-9 days
41 203-1286 Washer D6 $2.99 1 usually ships 10-12 days
43 203-5163 Screw $2.46 4 usually ships 10-12 days
44 203-3655 Screw M12 x 40 $5.30 2 usually ships 10-12 days
45 203-4832 Screw $4.25 1 usually ships 10-12 days
46 203-4833 Spacer $10.35 1 usually ships 10-12 days
47 203-1344 Screw $4.20 2 usually ships 1-5 days
48 203-4835 Bracket $20.14 1 usually ships 1-5 days
49 189-1512 Screw 8 x 20 inch $4.20 1 usually ships 10-12 days
50 189-1391 Washer D6 $0.99 1 usually ships 10-12 days
51 203-4824 Spring $30.02 2 usually ships 10-12 days
53 203-4414 Washer $2.99 1 (after 03/25/2013) usually ships 10-12 days
