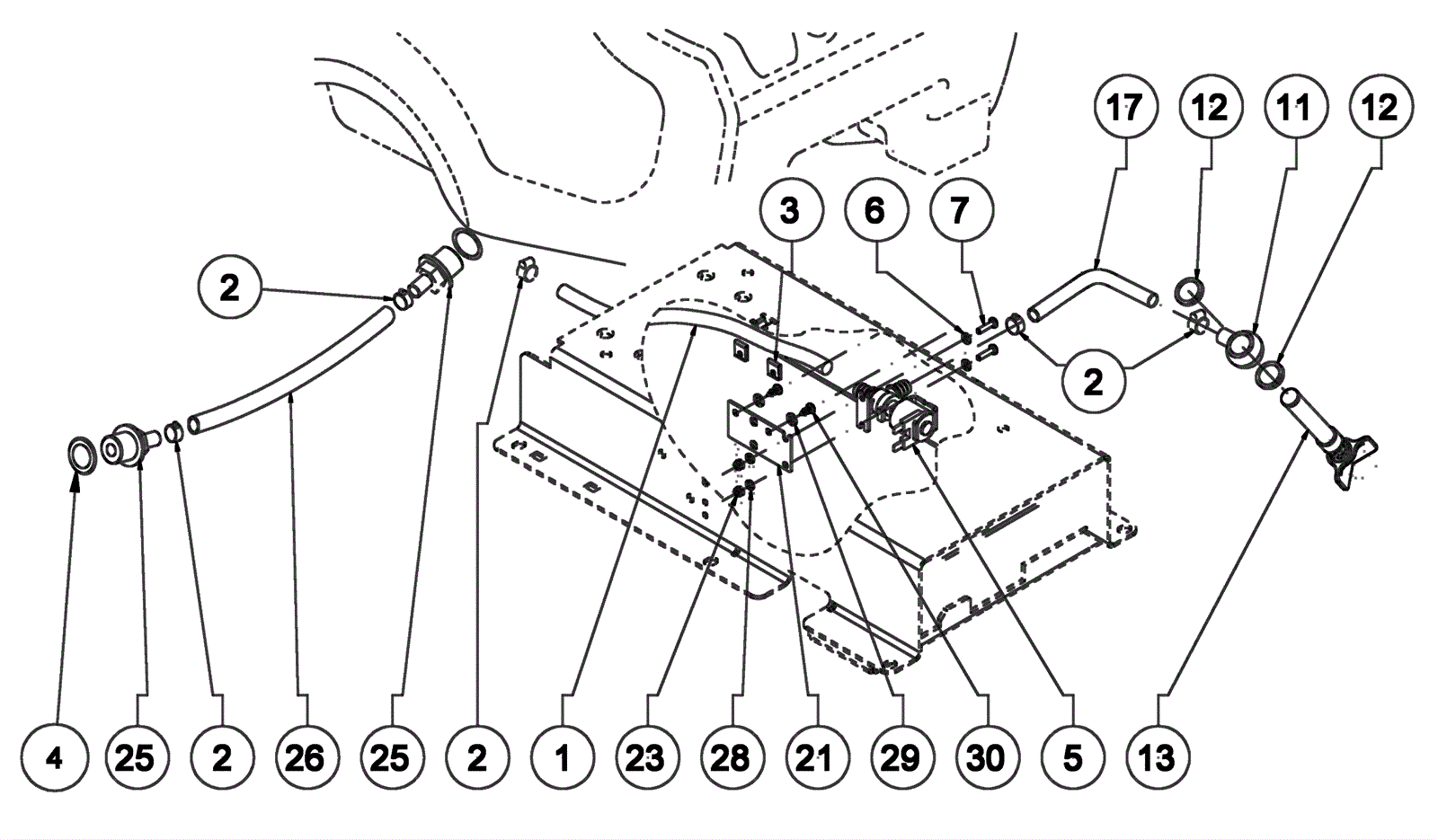

Solenoid Valve Assembly

#PartDescription ReqNotesAvailability
1 203-3645 Hose 1
2 189-0716 Clamp 14-24 inch 5
3 203-3646 Spring 2
4 203-3647 Gasket 2 (after 03/22/2017)
5 203-4749 Solenoid valve 1
6 375-5391 Washer 12D 2
7 189-1431 Screw 2
11 203-4751 Connector 1
12 675-9928 Washer gasket 2
13 203-0852 Filter 1
17 203-4747 Tube (Sold by the meter) 0.6MM
21 203-3649 Plate 1
25 203-3428 Connector 2
26 203-3650 Tube 1
28 375-5391 Washer 12D 2
29 189-1353 Washer D5 2
30 375-9544 Screw 5 x 12 2
