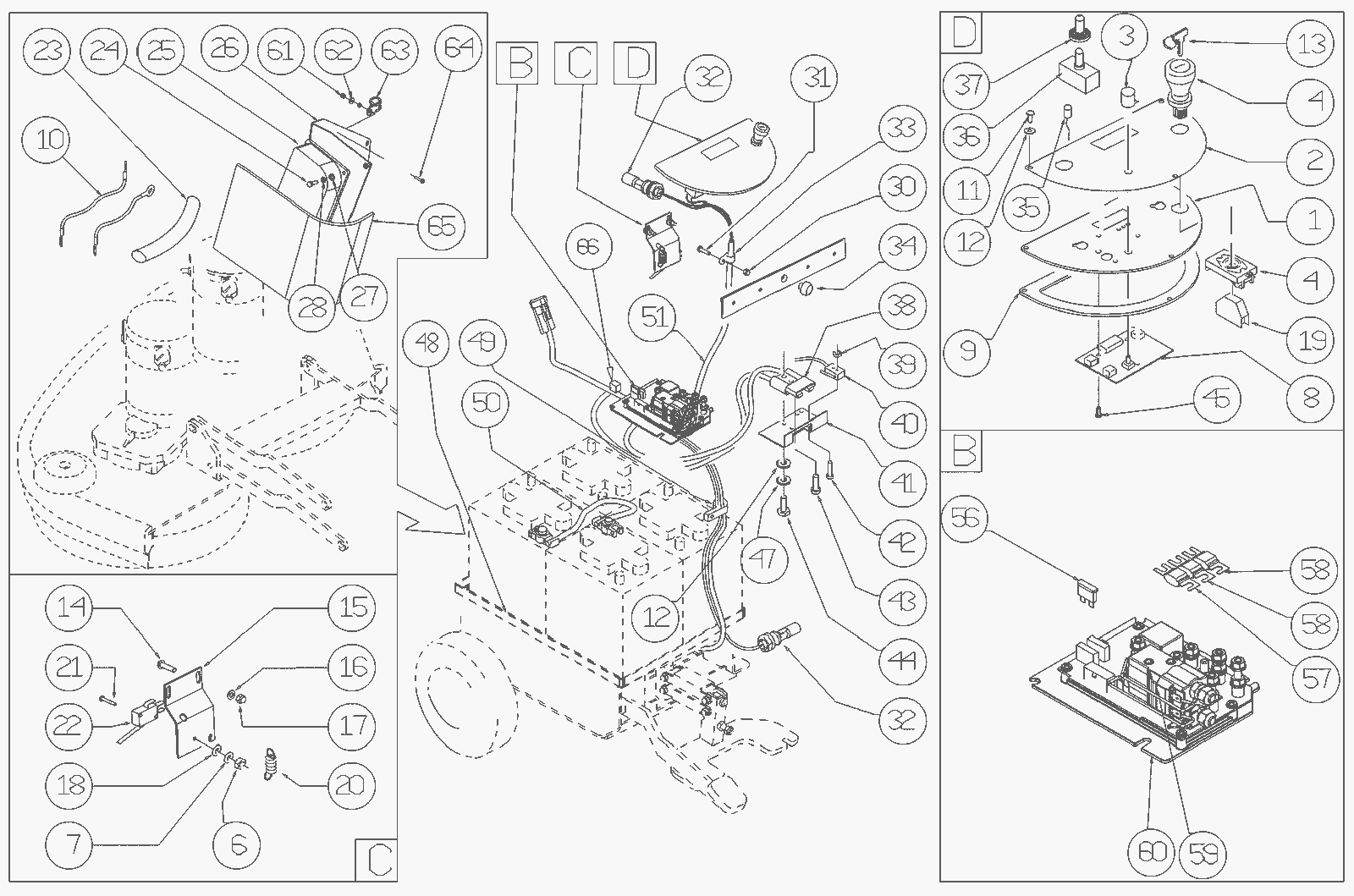

CT90 Electrical Installation Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4715 Support $25.47 1 usually ships 1-5 days
2 203-5046 Control panel decal $22.22 1 usually ships 10-12 days
3 203-5225 Knob $7.67 1 usually ships 10-12 days
6 189-1446 Nut M3 $3.37 2 usually ships 1-5 days
7 189-2241 Washer D3 $4.84 2 usually ships 1-5 days
8 203-3639 Board $427.32 1 usually ships 10-12 days
9 203-4719 Gasket $27.97 1 usually ships 1-5 days
10 N/A Not available Call for price 1 (short wire section) usually ships 3-26 days
11 203-4720 Screw 4 x 10 $3.94 3 usually ships 10-12 days
12 203-0235 Washer $2.79 3 usually ships 10-12 days
13 203-3401 Key (pkg of 2) $32.16 1 ships same day
14 189-1508 Turned eye screw $3.94 2 usually ships 1-5 days
15 203-4723 Plate $25.14 1 usually ships 1-5 days
16 189-1353 Washer D5 $2.79 2 usually ships 1-5 days
17 203-0789 Nut $3.43 4 usually ships 10-12 days
18 189-1441 Washer $2.79 2 usually ships 1-5 days
19 203-4349 Switch $24.30 1 usually ships 1-5 days
20 189-0582 Spring $17.48 1 usually ships 1-5 days
21 203-4726 Screw $3.94 2 usually ships 1-5 days
22 189-0258 Microswitch $28.61 1 usually ships 10-12 days
23 N/A Not available Call for price 1 (conduit) usually ships 3-26 days
24 189-1508 Turned eye screw $3.94 2 usually ships 1-5 days
25 203-3640 Curtis control board $977.06 1 usually ships 10-12 days
26 203-3641 Support $35.50 1 usually ships 10-12 days
27 189-1353 Washer D5 $2.79 2 usually ships 1-5 days
28 203-4956 Spring lock washer $2.79 2 usually ships 10-12 days
30 189-1472 Nut M4 $3.37 1 usually ships 1-5 days
31 189-1527 Screw 4 x 16 inch $3.94 1 usually ships 1-5 days
32 203-4729 Sensor $74.43 2 usually ships 10-12 days
33 203-4730 P clamp $21.98 1 usually ships 1-5 days
34 203-4731 Cap $1.78 1 usually ships 1-5 days
35 203-1577 LED $58.39 1 usually ships 10-12 days
36 203-5227 Switch $40.39 1 usually ships 10-12 days
37 203-5228 Switch guard $11.78 1 usually ships 10-12 days
38 203-4166 50amp charger plug (red) $58.49 1 usually ships 10-12 days
39 189-1458 Nut M2 $3.37 2 usually ships 1-5 days
40 203-4734 4V microswitch $68.31 1 usually ships 10-12 days
41 203-4735 Support $14.25 1 usually ships 1-5 days
42 189-1457 Screw M2 $3.94 2 usually ships 1-5 days
43 203-4737 Screw $3.94 1 usually ships 1-5 days
44 203-4738 Screw M4 $3.94 2 usually ships 10-12 days
45 203-4739 Screw $3.94 3 usually ships 1-5 days
47 203-4740 Washer D4 $2.79 2 usually ships 1-5 days
48 203-3630 Front panel $78.21 1 usually ships 10-12 days
49 203-4730 P clamp $21.98 1 usually ships 1-5 days
50 189-0113 Battery jumper cable $84.18 3 usually ships 10-12 days
51 203-3642 CT90 wiring $1,312.10 1 usually ships 10-12 days
56 203-4743 Fuse $1.19 1 usually ships 10-12 days
57 203-4744 80amp fuse $6.26 1 usually ships 1-5 days
58 203-4745 40amp fuse $16.46 2 usually ships 1-5 days
59 203-4746 100amp contactor $118.56 1 usually ships 1-5 days
60 203-4638 Control board $282.47 1 usually ships 10-12 days
61 N/A Not available Call for price 1 (screw) usually ships 3-26 days
62 203-0971 Washer D6 $2.79 1 usually ships 10-12 days
63 203-7165 Clamp $17.23 1 usually ships 10-12 days
64 189-1357 Screw 6 x 12 inch $3.94 1 usually ships 10-12 days
65 203-3643 Protection $12.67 1 usually ships 10-12 days
66 203-3644 Mousse Call for price 1 (after 05/26/2015) usually ships 10-12 days
