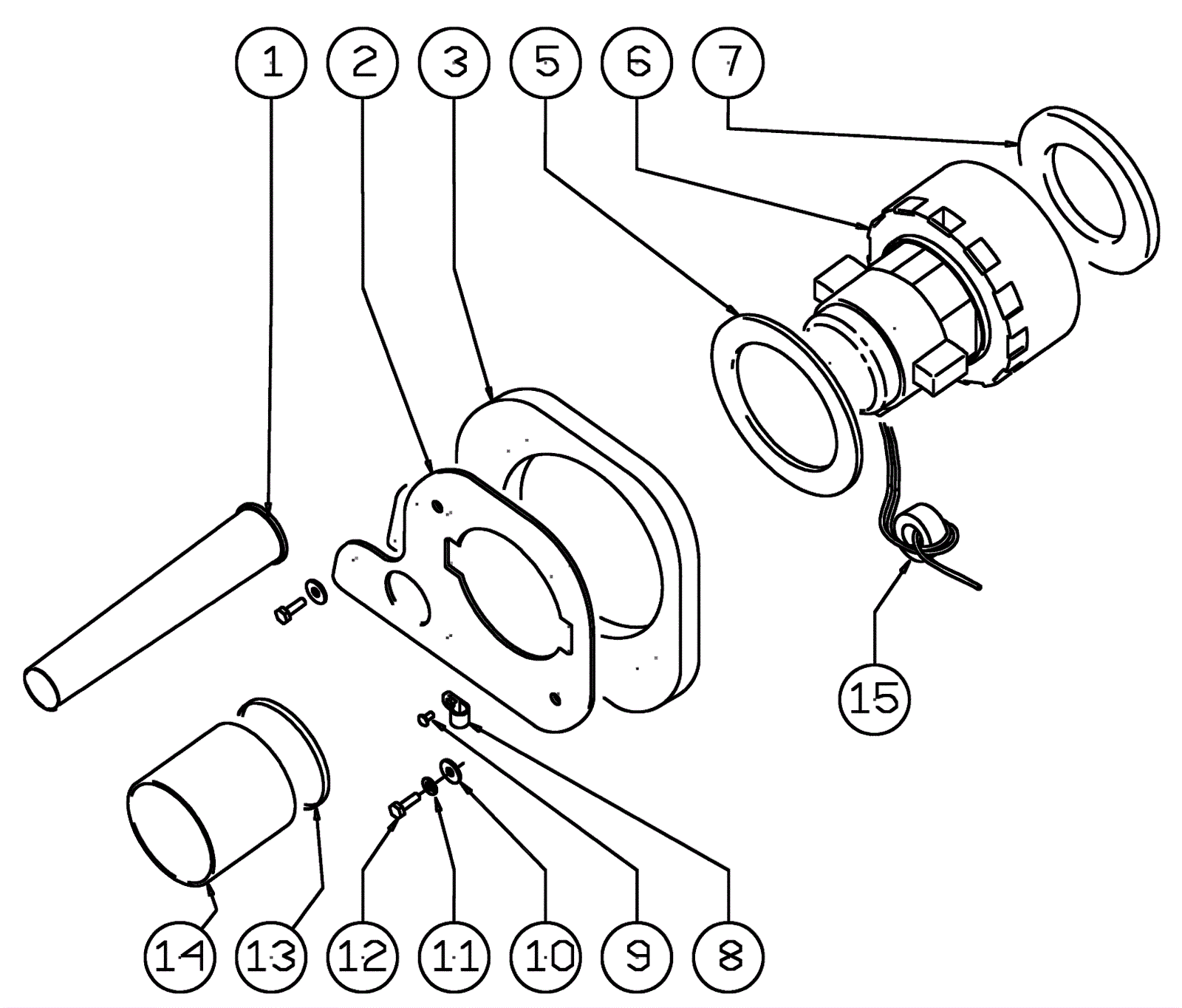

Vacuum Cleaner Assembly

#PartDescription ReqNotesAvailability
1 203-4661 Tube 1
2 203-4663 Flange 1
3 203-4664 Sound-proofing aspirator 1
5 203-4665 Flange 1
6 203-3359 24V 2 stage vacuum motor 1
7 203-4495 Gasket 1
8 203-4730 P clamp 1
9 189-1634 Screw 4 x 8 inch 1
10 189-1391 Washer D6 2
11 203-0971 Washer D6 2
12 189-1497 Screw 6 x 16 inch 2
13 203-4668 Clamp 1
14 203-4673 Tube 1
15 203-3638 Toriod filter 1
