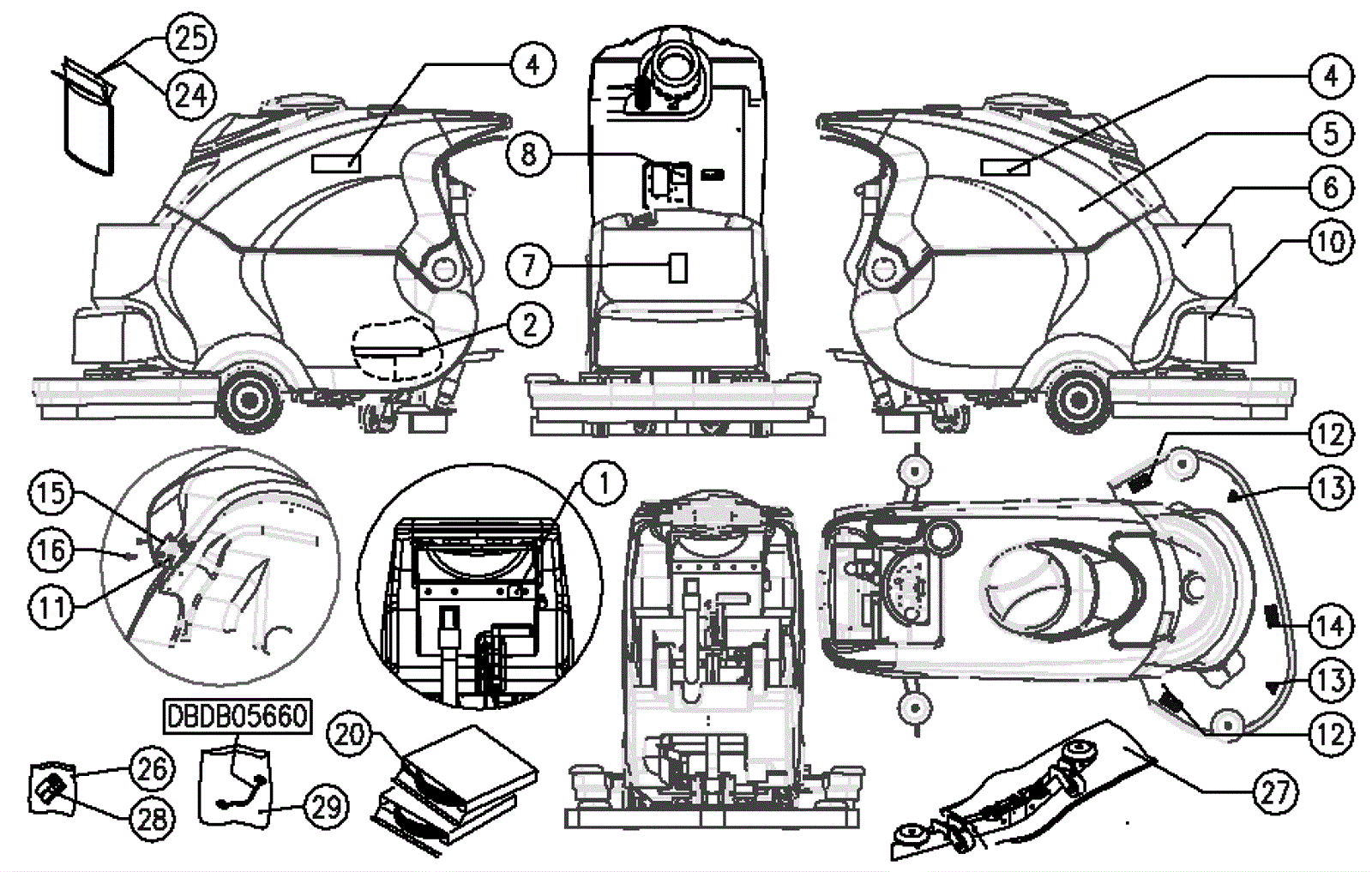

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-3629
|
Decal |
1 |
|
|
2 |
203-3630
|
Front panel |
1 |
|
|
4 |
203-3631
|
Decal |
2 |
|
|
5 |
203-3632
|
Recovery tank |
1 |
|
|
6 |
203-3633
|
Solution tank |
1 |
|
|
7 |
203-5643
|
Decal |
1 |
|
|
8 |
203-5615
|
Decal |
1 |
|
|
10 |
203-3634
|
Front panel |
1 |
|
|
11 |
203-3635
|
Screw 5 x 10 thread cutting |
4 |
|
|
12 |
203-5648
|
Adhesive |
2 |
|
|
13 |
203-5642
|
Adhesive |
2 |
|
|
14 |
203-5644
|
Adhesive |
1 |
|
|
15 |
203-3636
|
Bracket |
2 |
|
|
16 |
203-4713
|
Screw |
4 |
|
|
20 |
996-1204
|
Nylon brush |
2 |
|
|
24 |
N/A
|
Not available |
1 |
(instruction manual) |
|
25 |
N/A
|
Not available |
1 |
(manual) |
|
26 |
N/A
|
Not available |
1 |
(plastic envelope) |
|
27 |
203-5651
|
Tube |
1 |
|
|
28 |
203-4166
|
50amp charger plug (red) |
1 |
|
|
29 |
N/A
|
Not available |
1 |
(envelope) |
|
