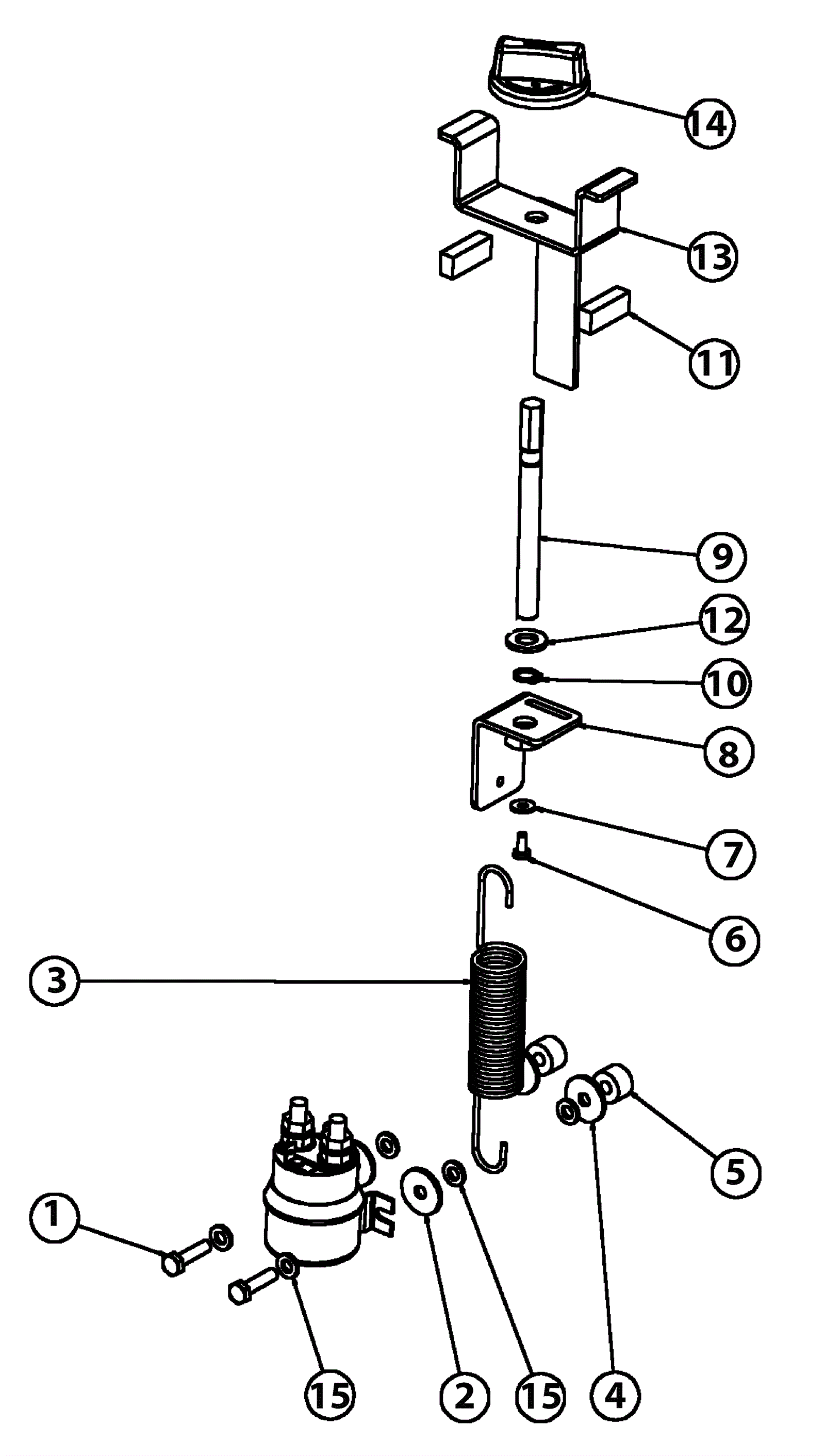

CT90 Kit Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
2 189-1398 Washer 6 x 24 inch $2.99 4 usually ships 10-12 days
3 203-3622 Spring $45.44 1 usually ships 10-12 days
4 189-1398 Washer 6 x 24 inch $2.99 4 usually ships 10-12 days
5 203-5603 Spacer $18.60 2 usually ships 10-12 days
6 189-1376 Screw 4 x 10 inch $4.20 1 usually ships 10-12 days
7 203-0145 Washer 4-16 inch $2.99 1 usually ships 10-12 days
8 203-3623 Support bracket $45.45 1 usually ships 10-12 days
9 203-3624 Support $67.45 1 usually ships 10-12 days
10 203-3625 Circlip $5.19 1 usually ships 10-12 days
11 203-3626 Mousse $4.36 2 usually ships 10-12 days
12 203-1325 Washer 10 x 21 inch washer $0.99 1 usually ships 1-5 days
13 203-3627 Support $56.80 1 usually ships 10-12 days
14a 203-0118 Hand grip $27.72 1 (before 07/15/2009) usually ships 1-5 days
14b 203-3628 Knob $14.66 1 (after 07/16/2009) usually ships 10-12 days
15 203-1286 Washer D6 $2.99 1 usually ships 10-12 days
