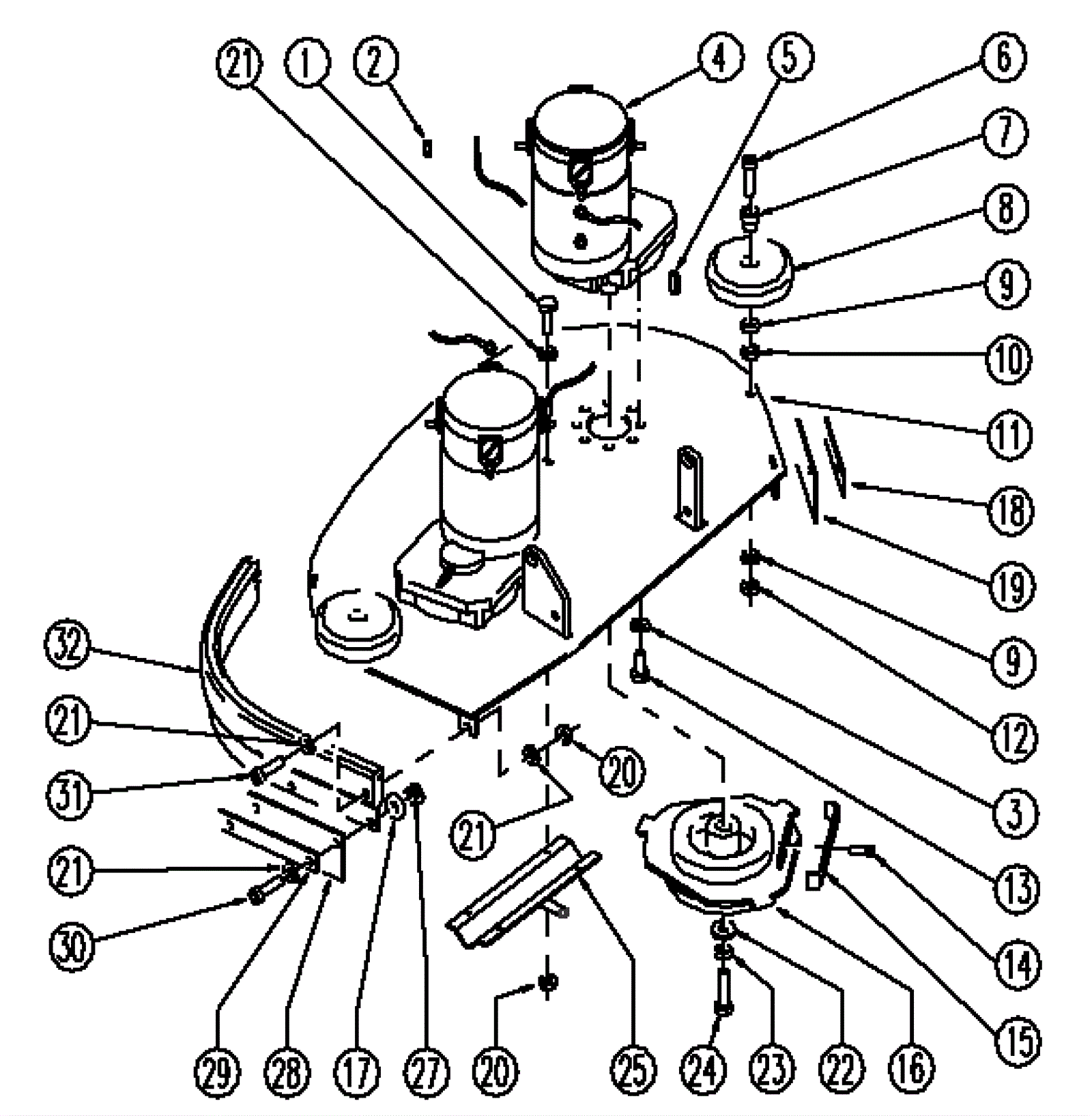

Head Assembly

#PartDescription ReqNotesAvailability
1 189-1497 Screw 6 x 16 inch 4
2 203-1290 Nut M6 4
3 203-0971 Washer D6 14
4a 203-5123 Carbon brush 2
4b 203-3376 Carbon brush (sold individually) 4
5 203-0644 Square keyway 2
6a 189-1399 Screw M8 zinc 2 (before 06/16/2009)
6b 375-8016 Screw M8 x 40 2 (after 06/17/2009)
7 189-0901 Bushing 2
8 189-0060 Wheel 2
9 189-0897 Washer D8 4
10 189-1492 Nut M8 2
11 203-3608 Head 85 1
12 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
13 189-1357 Screw 6 x 12 inch 14
14 189-1376 Screw 4 x 10 inch 2
15a 203-1759 Spring 2 (before 09/05/2007)
15b 189-2373 Spring 2 (between 09/06/2007 and 05/23/2012)
15c 203-5128 Spring 2 (after 05/24/2012)
16a 375-8019 Driver kit (aluminum) 2 (before 05/23/2012)
16b 203-2903 Drive disk 2 (after 05/24/2012)
17 189-1498 Washer 8
18 203-5135 Right hand retainer 1 (after 07/06/2007)
19 203-4640 Flap 1 (after 07/06/2007)
20 189-1536 Nut with nylon ring 9
21 189-1391 Washer D6 22
22 375-9615 Washer D. 8 x 24 inox 2
23 375-9732 Washer D8 2
24 189-1512 Screw 8 x 20 inch 2
25 203-3609 Distributor 1
27 203-4306 Nut M6 8
28 203-4641 Flap 1
29 203-5132 Left hand retainer 1
30 189-1497 Screw 6 x 16 inch 8
31 189-1397 Screw 5
32 203-3611 Bumper 1
