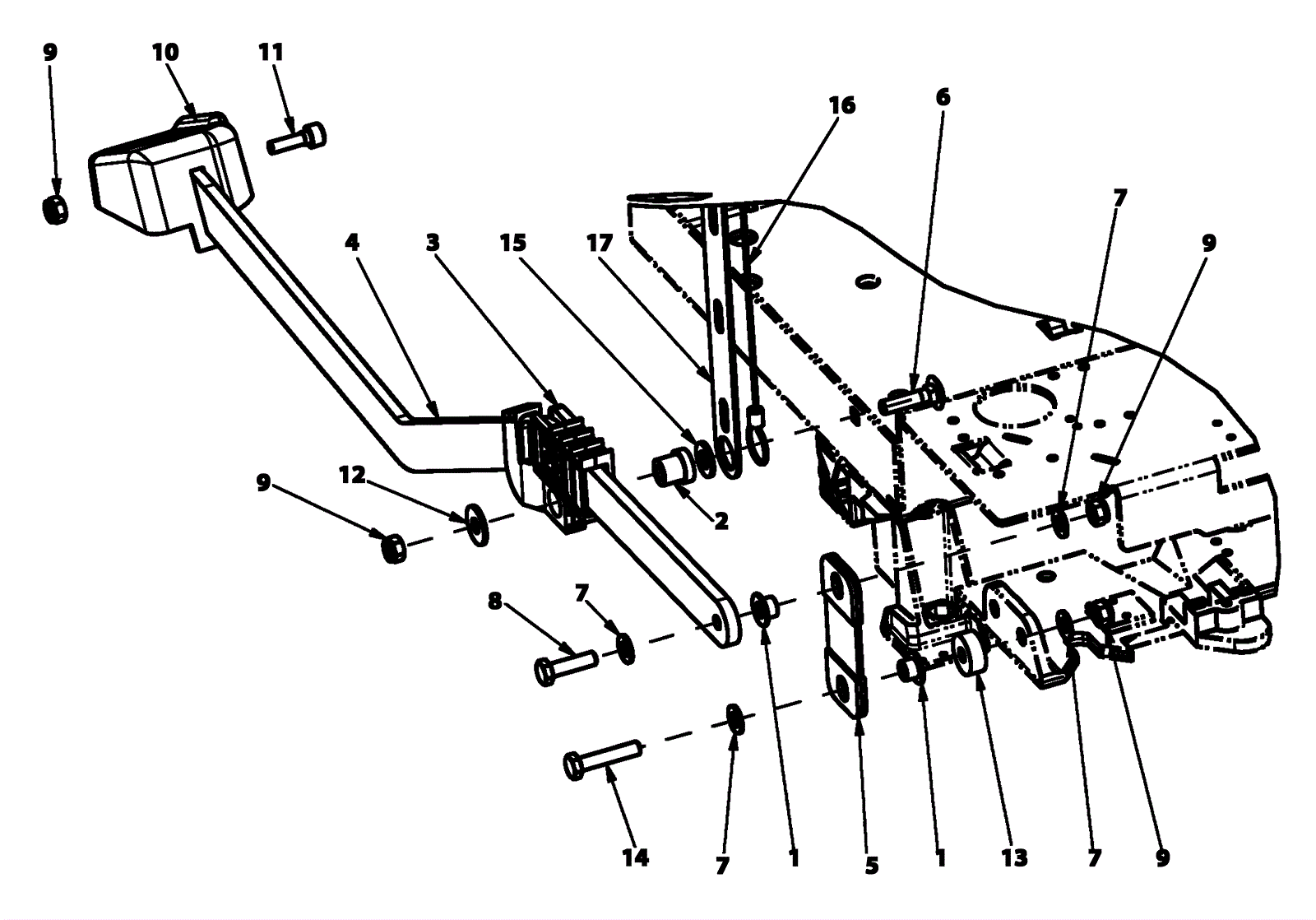

GANSOW CT51 Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5787 Bushing $5.50 2 usually ships 10-12 days
2 203-5816 Spacer $4.09 1 usually ships 10-12 days
3 203-5817 Lifting pedal support $6.49 1 usually ships 10-12 days
4 203-5818 Lever pedal brush head $56.29 1 usually ships 10-12 days
5 203-5819 Plate link $2.11 1 usually ships 10-12 days
6 203-5820 Screw M8x35 $0.99 1 usually ships 10-12 days
7 189-0897 Washer D8 $2.79 4 usually ships 10-12 days
8 203-1344 Screw $3.94 1 usually ships 1-5 days
9 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
10 203-5821 Pedal head lifting $3.83 1 usually ships 10-12 days
11 203-5822 Screw 8x25 $0.99 1 usually ships 10-12 days
12 189-1400 Washer $2.79 1 usually ships 10-12 days
13 203-5823 Spacer $0.99 1 usually ships 10-12 days
14 189-1404 Screw M8 $0.99 1 usually ships 1-5 days
15 203-1325 Washer 10 x 21 inch washer $0.99 1 usually ships 1-5 days
16 203-5824 Cable steel safety $28.04 1 usually ships 10-12 days
17 203-5825 Guide Call for price 1 usually ships 10-12 days
