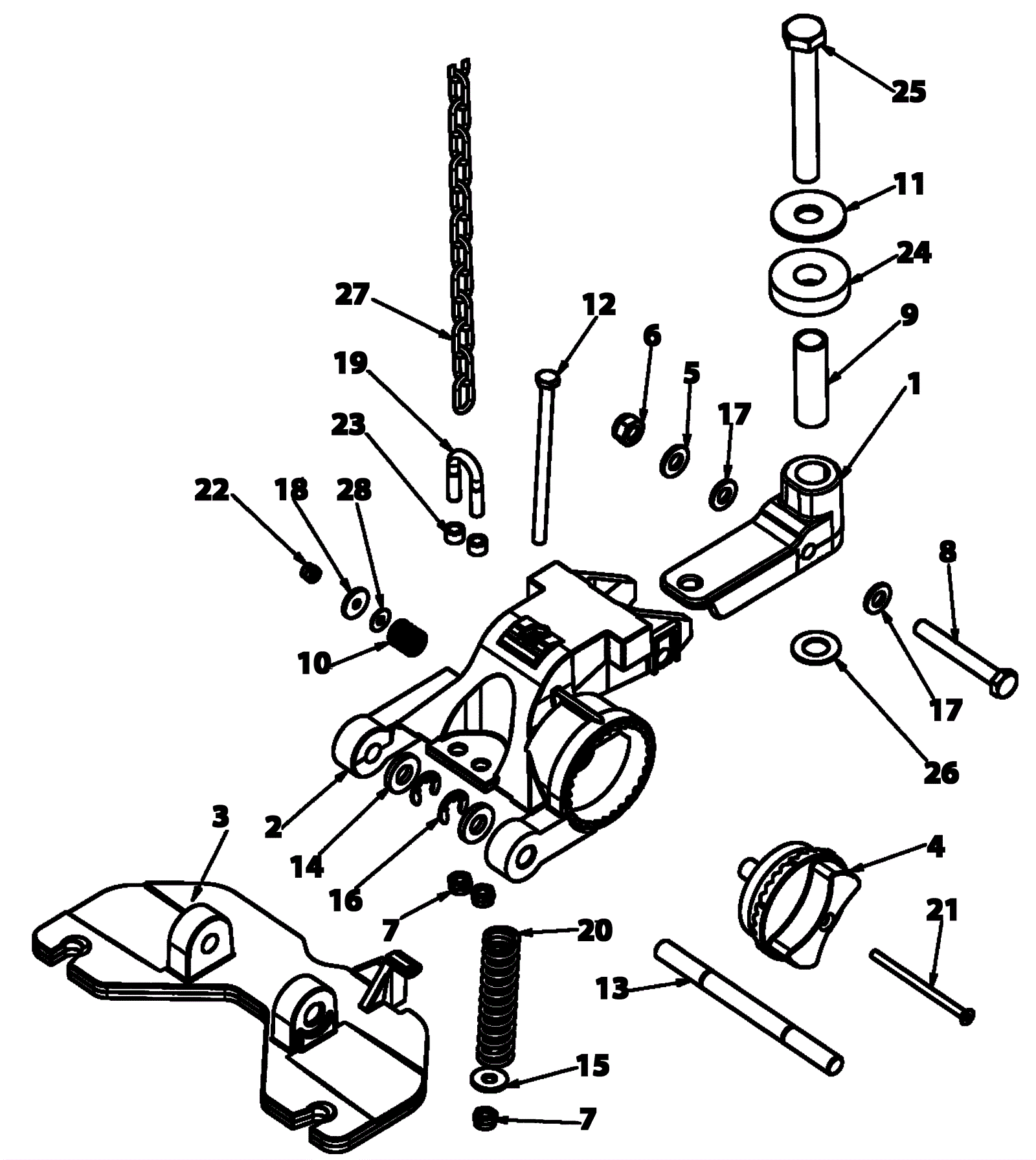

GANSOW CT51 Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5801 Squeegee pivot support $8.25 1 usually ships 10-12 days
2 203-5802 Squeegee regulation support $23.54 1 usually ships 10-12 days
3 203-5803 Squeegee support $17.38 1 usually ships 10-12 days
4 203-5804 Squeegee angle adjustment knob $3.30 1 usually ships 10-12 days
5 189-0897 Washer D8 $2.79 1 usually ships 10-12 days
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
7 189-1536 Nut with nylon ring $1.98 3 usually ships 5-9 days
8 203-4847 Screw $3.94 1 usually ships 1-5 days
9 203-5805 Bushing 13x16x51 $6.38 1 usually ships 10-12 days
10 203-5806 Squeegee spring knob $3.70 1 usually ships 10-12 days
11 203-4842 Washer $2.79 1 usually ships 10-12 days
12 203-5807 Screw te M6x100 $18.37 1 usually ships 10-12 days
13 203-5808 Pin for squeegee support $5.50 1 usually ships 10-12 days
14 203-5809 Washer $0.99 2 usually ships 10-12 days
15 189-1391 Washer D6 $0.99 1 usually ships 10-12 days
16 203-5810 Snap ring $4.84 2 usually ships 10-12 days
17 189-1393 Washer $2.79 2 usually ships 1-5 days
18 203-0145 Washer 4-16 inch $2.79 1 usually ships 10-12 days
19 203-4845 Bracket $10.85 1 usually ships 1-5 days
20 203-5811 Spring $3.17 1 usually ships 10-12 days
21 203-5812 Screw 4x70 $18.26 1 usually ships 10-12 days
22 189-1472 Nut M4 $3.37 1 usually ships 1-5 days
23 203-3564 Tube $43.12 1 usually ships 10-12 days
24 203-4849 Washer $5.50 1 usually ships 1-5 days
25 203-5813 Screw te M12-90 $2.50 1 usually ships 10-12 days
26 203-5814 Washer $0.99 1 usually ships 10-12 days
27 203-5815 Squeegee lifting chain $3.96 1 usually ships 10-12 days
28 203-5800 Washer 4x12 steel inox $2.90 1 (after 05/23/2018) usually ships 10-12 days
