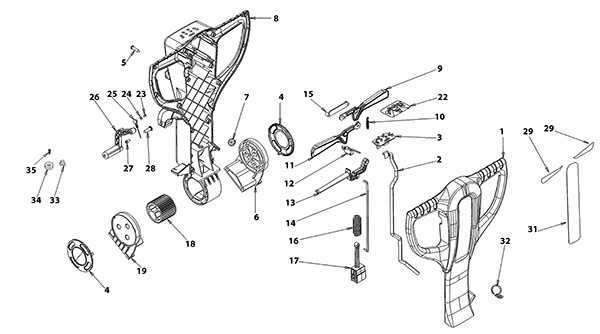

Gansow CT46 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5477 Front handle $128.49 1 usually ships 5-15 days
2a 203-3377 Cable $80.33 1 (before 09/20/2015) usually ships 5-15 days
2b 203-5006 Ribbon cable $48.77 1 (between 09/21/2015 and 11/25/2015) usually ships 5-15 days
2c 203-5476 Wiring $68.94 1 (after 11/26/2015) usually ships 5-15 days
3a 203-3394 Circuit board kit $143.88 1 (before 09/20/2015) usually ships 5-15 days
3b 203-3393 Display card - DO NOT ORDER - SEE NOTE (OBSOLETE) Call for price 1 (between 09/21/2015 and 06/15/2016) usually ships 5-15 days
3c 203-5473 Board $81.29 1 (after 06/16/2015) usually ships 5-15 days
4 203-5463 Cover $16.66 2 usually ships 5-15 days
5 203-4931 Screw 4.8 x 19 $0.90 14 usually ships 5-15 days
6 203-5462 Shell $112.42 1 usually ships 5-15 days
7 203-5464 Bearing $9.38 1 usually ships 5-15 days
8 203-5501 Handle $273.54 1 usually ships 5-15 days
9 203-5468 Lever $40.41 1 usually ships 5-15 days
10 203-5469 Spring $15.83 1 usually ships 5-15 days
11 203-5468 Lever $40.41 1 usually ships 5-15 days
12 189-0258 Microswitch $17.22 1 usually ships 5-15 days
13 203-4932 Adjustment lever $20.53 1 usually ships 5-15 days
14 203-3510 Lever rod kit $77.18 1 usually ships 5-15 days
15 203-5467 Electronic card support $14.56 1 usually ships 5-15 days
16 203-5471 Spring $18.59 1 usually ships 5-15 days
17 203-5472 Handle support $88.68 1 usually ships 5-15 days
18 203-5502 Gear $138.76 1 usually ships 5-15 days
19 203-5462 Shell $112.42 1 usually ships 5-15 days
22a 203-5248 Decal $29.13 1 (before 09/20/2015) usually ships 5-15 days
22b 203-5249 PCB decal $15.60 1 (after 09/21/2015) ships same day
23 203-1733 Screw 12 x 45 inch zinc $3.76 1 (after 09/22/2014) usually ships 5-15 days
24 203-0145 Washer 4-16 inch $0.90 1 (after 09/22/2014) usually ships 5-15 days
25 203-3427 Squeegee lift cable $57.92 1 (after 09/22/2014) usually ships 5-15 days
26 203-3061 Lever $48.84 1 (after 09/22/2014) usually ships 5-15 days
27 203-5480 Screw 6 x 12mm $0.90 1 (after 09/22/2014) usually ships 5-15 days
28 203-5478 Pin $9.37 1 (after 09/22/2014) usually ships 5-15 days
29a 203-5495 Label (blue) $15.93 1 usually ships 5-15 days
29b 203-5496 Label (red) $15.93 1 usually ships 5-15 days
29c 203-5497 Label (green) $8.11 1 usually ships 5-15 days
31a 203-5498 Label (blue) $15.60 1 usually ships 5-15 days
31b 203-5499 Label (red) $15.93 1 usually ships 5-15 days
31c 203-5500 Label (green) $8.40 1 usually ships 5-15 days
32 203-3509 Hook $6.34 1 (after 04/15/2016) usually ships 5-15 days
33 203-3511 Screw 4.8 x 9.5 zinc $1.72 1 (after 06/10/2019) usually ships 5-15 days
34 203-3512 Magnet $5.69 1 (after 06/10/2019) usually ships 5-15 days
35 203-3513 Screw 3 x 12 vite tspc $1.72 1 (after 06/10/2019) usually ships 5-15 days
N/S 203-3394 Circuit board kit $143.88 1 (control board kit) usually ships 5-15 days
