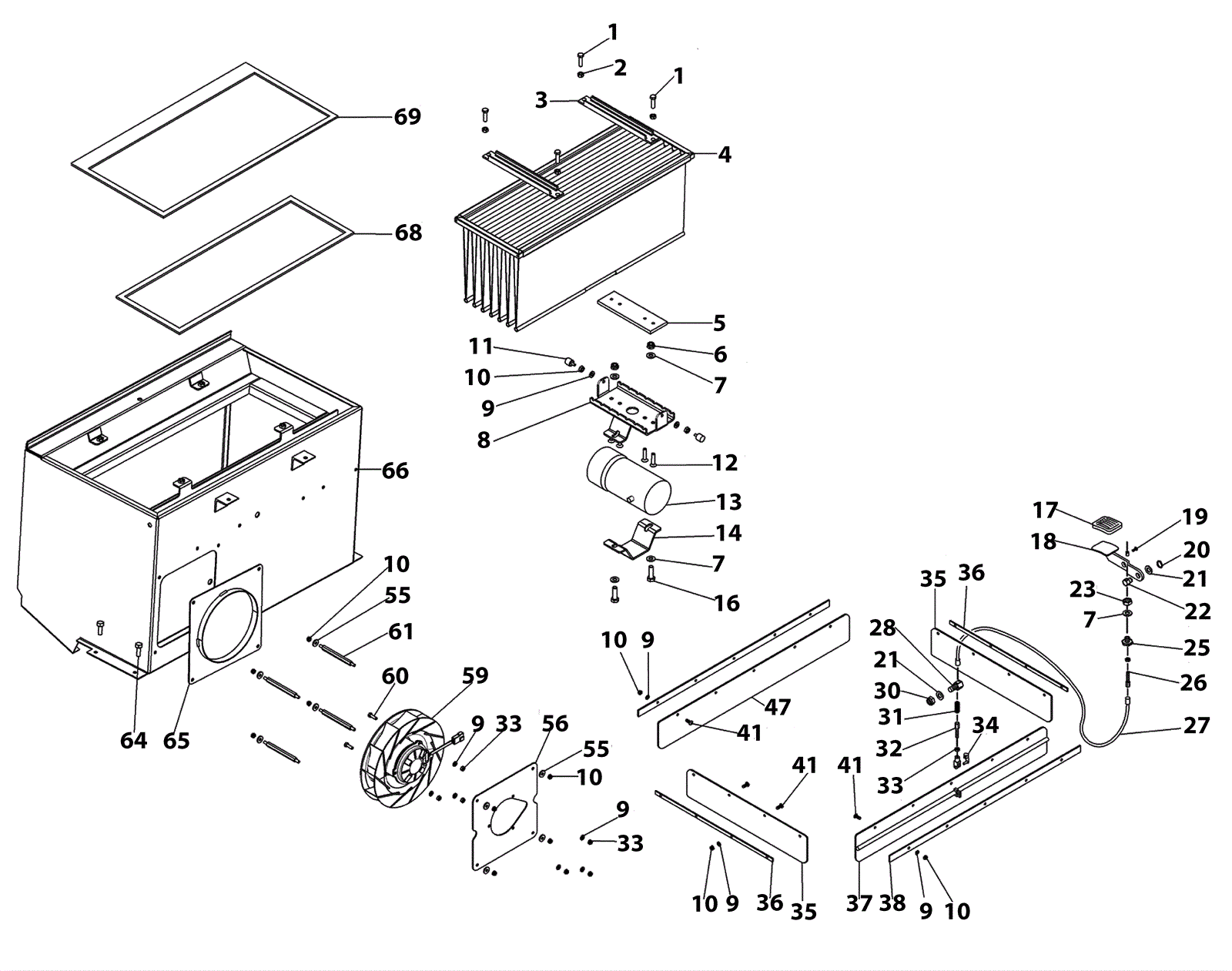

1280 Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-7164 Screw 8 x 25mm $4.25 4 usually ships 15-24 days
2 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 4 ships same day
3 203-1661 Bracket $107.62 2 usually ships 15-24 days
4 203-1662 Filter $776.47 1 usually ships 15-24 days
5 203-1663 Plate $48.73 1 usually ships 15-24 days
6 189-1415 Nut $3.67 2 usually ships 1-5 days
7 203-4537 Washer M10 $17.42 5 usually ships 1-5 days
8 203-1664 Bracket $131.70 1 usually ships 15-24 days
9 203-1291 Washer $3.10 25 usually ships 15-24 days
10 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 27 ships same day
11 203-1665 Vibration dampener $6.59 2 usually ships 15-24 days
12 203-5833 Screw 8x35 zinc $4.25 4 usually ships 15-24 days
13 203-1666 Motor $961.49 1 usually ships 15-24 days
14 203-1667 Bracket $36.72 1 usually ships 15-24 days
16 203-1668 Screw M10 x 35 hex head zinc $0.99 2 usually ships 15-24 days
17 203-1383 Rubber $10.12 1 usually ships 1-5 days
18 203-1669 Pedal flap $98.29 1 usually ships 15-24 days
19 203-1670 Clamp $18.60 1 usually ships 15-24 days
20 203-1988 Outer snap ring $4.80 1 usually ships 1-5 days
21 189-1414 Washer D12 $3.67 2 usually ships 15-24 days
22 203-1991 Cable fixing pivot $28.48 1 usually ships 1-5 days
23 999-0503 Nut M12-1.75 hex stainless steel $1.91 1 ships same day
25 203-1987 Cable centering pivot $15.53 1 usually ships 1-5 days
26 203-1986 Turned adjuster $33.66 1 usually ships 15-24 days
27 203-1671 Cable casing $33.55 1 usually ships 15-24 days
28 203-1977 Pivot $29.19 1 usually ships 1-5 days
30 203-1976 Nut M12 self locking $3.67 1 usually ships 1-5 days
31 203-1672 Spring $21.89 1 usually ships 15-24 days
32 203-1675 Cord $43.55 1 usually ships 15-24 days
33 203-4326 Nut $3.67 7 usually ships 15-24 days
34 203-4328 Clip $17.53 1 usually ships 1-5 days
35 203-1676 Flap $51.56 2 usually ships 15-24 days
36 203-1677 Flap clamp $34.73 2 usually ships 15-24 days
37 203-1678 Rubber flap $88.63 1 usually ships 15-24 days
38 203-1679 Flap clamp $55.91 1 usually ships 15-24 days
41 203-3026 Screw M6 x 16 $4.25 18 usually ships 15-24 days
47 203-1680 Rubber flap $62.61 1 usually ships 15-24 days
55 203-4235 Washer 6 x 18 x 2.38 $3.10 8 usually ships 1-5 days
56 203-1681 Sheet metal $40.14 1 usually ships 15-24 days
59 203-1682 Impeller $566.26 1 usually ships 15-24 days
60 203-3200 Screw 6 x 18 $30.60 3 usually ships 15-24 days
61 203-2904 Spacer $28.37 4 usually ships 15-24 days
64 203-3281 Screw M6 x 16 $4.25 4 ships same day
65 203-2905 Adapter $108.28 1 usually ships 15-24 days
66 203-2906 Washer $1,204.78 1 usually ships 15-24 days
68 203-2907 Kit $36.65 1 usually ships 15-24 days
69 203-2908 Kit $15.53 1 usually ships 15-24 days
