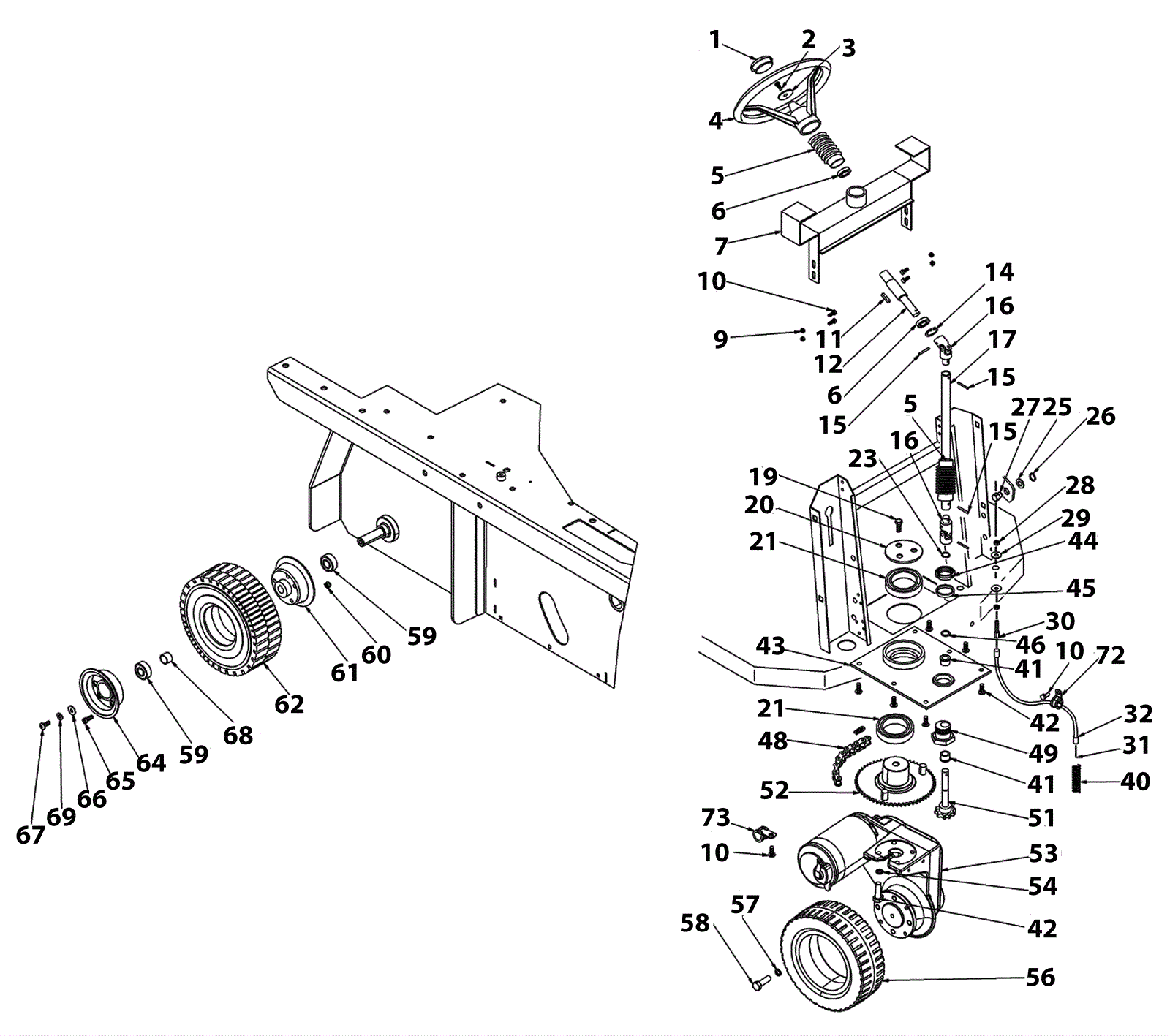

1280 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-1293 Black cap $20.71 1 usually ships 1-5 days
2 203-3143 Screw 10 x 16 $4.25 1 usually ships 1-5 days
3 203-1294 Washer $2.99 1 usually ships 1-5 days
4 203-1318 Steering wheel $180.90 1 usually ships 1-5 days
5 203-2085 Brush shaft damper $34.49 2 usually ships 1-5 days
6 203-1169 Bearing 6202 2RS $48.49 2 usually ships 11-14 days
7 203-1646 Support $369.93 1 usually ships 11-14 days
9 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
10 203-3281 Screw M6 x 16 $4.25 6 ships same day
11 203-2057 Key 5x5x30 $18.25 1 usually ships 1-5 days
12 203-1647 Steering shaft $94.86 1 usually ships 11-14 days
14 189-2409 Seeger $4.80 1 usually ships 1-5 days
15 203-7070 Plug 5 x 25 $2.82 3 usually ships 11-14 days
16 203-1648 Articulation $131.10 2 usually ships 11-14 days
17 203-1649 Shaft $201.62 1 usually ships 11-14 days
19 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 3 ships same day
20 203-1650 Flange $89.93 1 usually ships 11-14 days
21 203-5384 Bearing $116.03 2 usually ships 11-14 days
23 203-1242 Outer snap ring 0 15 $4.80 1 usually ships 1-5 days
25 189-1414 Washer D12 $3.67 1 usually ships 11-14 days
26 203-1988 Outer snap ring $4.80 1 usually ships 1-5 days
27 203-1991 Cable fixing pivot $28.48 1 usually ships 1-5 days
28 203-4326 Nut $3.67 2 usually ships 11-14 days
29 203-4235 Washer 6 x 18 x 2.38 $3.10 2 usually ships 1-5 days
30 203-4898 Register $33.19 1 usually ships 1-5 days
31 203-1651 Cable $35.54 1 usually ships 11-14 days
32 203-1652 Sheath $28.13 1 usually ships 11-14 days
40 203-3329 Spring $8.32 1 ships same day
41 203-2895 Bushing $26.03 2 usually ships 11-14 days
42 203-1959 Screw 10x25 $2.40 10 usually ships 1-5 days
43 203-1653 Steering plate $278.83 1 usually ships 11-14 days
44 203-1312 Ring nut $46.96 1 usually ships 1-5 days
45 203-1654 Spacer $10.59 1 usually ships 11-14 days
46 203-4030 Shim 15 x 22 x 1/2 $16.25 1 usually ships 1-5 days
48 203-1655 Chain $202.21 1 usually ships 11-14 days
49 203-1656 Bushing Call for price 1 usually ships 11-14 days
51 203-1657 Pin $224.22 1 usually ships 11-14 days
52 203-1658 Brake $290.95 1 usually ships 11-14 days
53 203-1659 Motor $3,700.96 1 usually ships 11-14 days
54 203-4537 Washer M10 $17.42 4 usually ships 1-5 days
56 203-1660 Wheel $529.30 1 usually ships 11-14 days
57 203-5418 Washer $2.99 4 usually ships 11-14 days
58 203-1645 Screw M12 x 16mm $4.25 4 usually ships 11-14 days
59 203-4146 Bearing $48.57 4 usually ships 11-14 days
60 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 10 ships same day
61 203-4154 Hub $163.25 2 usually ships 11-14 days
62 203-1946 Super elastic wheel $310.02 2 usually ships 1-5 days
64 203-1945 Rear wheel hub $200.21 2 usually ships 1-5 days
65 203-1944 Screw 8x25 $30.95 10 usually ships 1-5 days
66 203-4212 Washer 8 x 24 $2.99 2 usually ships 1-5 days
67 203-4941 Screw M8 x 16 $4.20 2 usually ships 11-14 days
68 203-1970 Spacer $34.96 2 usually ships 1-5 days
69 189-1403 Washer D8 $3.10 2 usually ships 11-14 days
72 189-0239 Ductlock $17.18 1 usually ships 1-5 days
73 203-7165 Clamp $18.44 1 usually ships 11-14 days
