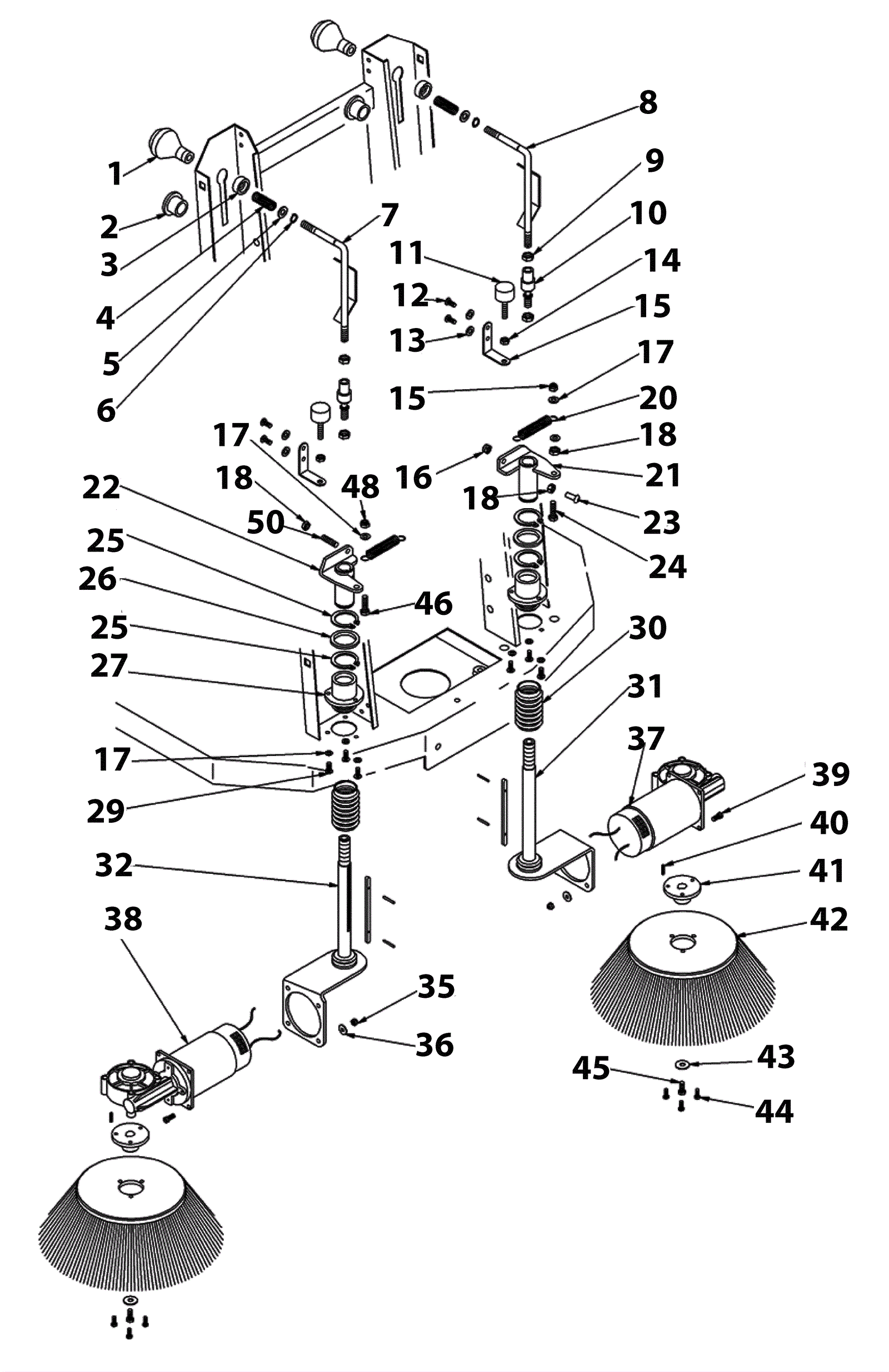

1280 Side Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-2105 Knob $17.05 2 usually ships 1-5 days
2 203-2104 Bushing $29.48 2 usually ships 1-5 days
3 203-2103 Bushing $30.25 2 usually ships 1-5 days
4 203-2102 Spring $22.99 2 usually ships 1-5 days
5 203-4537 Washer M10 $16.28 2 usually ships 1-5 days
6 375-7814 Seeger D10 $27.39 2 usually ships 5-16 days
7 203-1635 Arm $99.22 1 usually ships 5-15 days
8 203-1636 Arm $97.13 1 usually ships 5-15 days
9a 999-1428 Nut M10-1.5 hex zinc finish $0.99 4 (after 11/2014) ships same day
9b 999-6697 Nut M10-1.5 hex stainless steel $1.01 2 (before 11/2014) ships same day
10 203-2095 Axle joint $41.91 2 usually ships 1-5 days
11a 203-2099 Vibration damper $5.50 2 (after 11/2014) usually ships 1-5 days
11b 203-3122 Screw M6 x 15mm $20.02 2 (before 11/2014) usually ships 5-15 days
12 999-0920 Screw M6-1 x 16mm button head socket $0.99 4 ships same day
13 203-4235 Washer 6 x 18 x 2.38 $2.90 4 usually ships 1-5 days
14 203-4326 Nut $3.43 2 usually ships 5-15 days
15 203-2098 Lateral brush adjustment stand $19.14 2 usually ships 1-5 days
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
17 203-4179 Washer D8 $15.95 9 usually ships 5-15 days
18 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 3 ships same day
20 203-1637 Side arm spring $27.06 2 usually ships 5-15 days
21 203-1638 Guide $106.70 1 usually ships 5-15 days
22 203-1639 Guide $129.36 1 usually ships 5-15 days
23 203-3092 Screw M8 x 22 $3.96 1 usually ships 1-5 days
24 203-7164 Screw 8 x 25mm $3.96 1 usually ships 5-15 days
25 203-2090 Outer snap ring $4.49 4 usually ships 1-5 days
26 203-2089 Spacer $29.92 2 usually ships 1-5 days
27 203-1640 Flange $94.82 2 usually ships 5-15 days
29 203-2109 Screw 6 x 10 $3.96 6 ships same day
30 203-2085 Brush shaft damper $32.23 2 usually ships 1-5 days
31 203-1641 Support $200.31 1 usually ships 5-15 days
32 203-1642 Support $200.31 1 usually ships 5-15 days
35 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
36 203-1291 Washer $2.90 8 usually ships 5-15 days
37a 203-1643 90W motor $834.43 1 (after 02/2015) usually ships 5-15 days
37a 203-2081 Gear motor 24V 90W SX $782.83 1 (before 02/2015) usually ships 1-5 days
38a 203-1644 90W motor $834.43 1 (after 02/2015) usually ships 5-15 days
38b 203-2082 Gear motor 24V 90W DX $782.83 1 (before 02/2015) usually ships 1-5 days
39 203-3270 Screw 6 x 20 $3.96 8 usually ships 1-5 days
40 203-2079 Key 5x5x25 $6.05 2 usually ships 5-15 days
41 203-2080 Lateral brush holder flange $49.83 2 usually ships 1-5 days
42 203-2078 Lateral brush $177.10 2 usually ships 5-15 days
43 203-1171 Washer 6 x 24 $2.90 2 ships same day
44 203-3281 Screw M6 x 16 $3.96 6 ships same day
45 203-1164 Screw 6x10 $3.43 2 usually ships 11-24 days
46 203-4538 Screw M8 x 16mm $3.96 1 usually ships 1-5 days
48 203-4899 Nut M8 $28.60 1 usually ships 1-5 days
50 203-1633 Dowel 8 x 35 $3.96 1 usually ships 5-15 days
