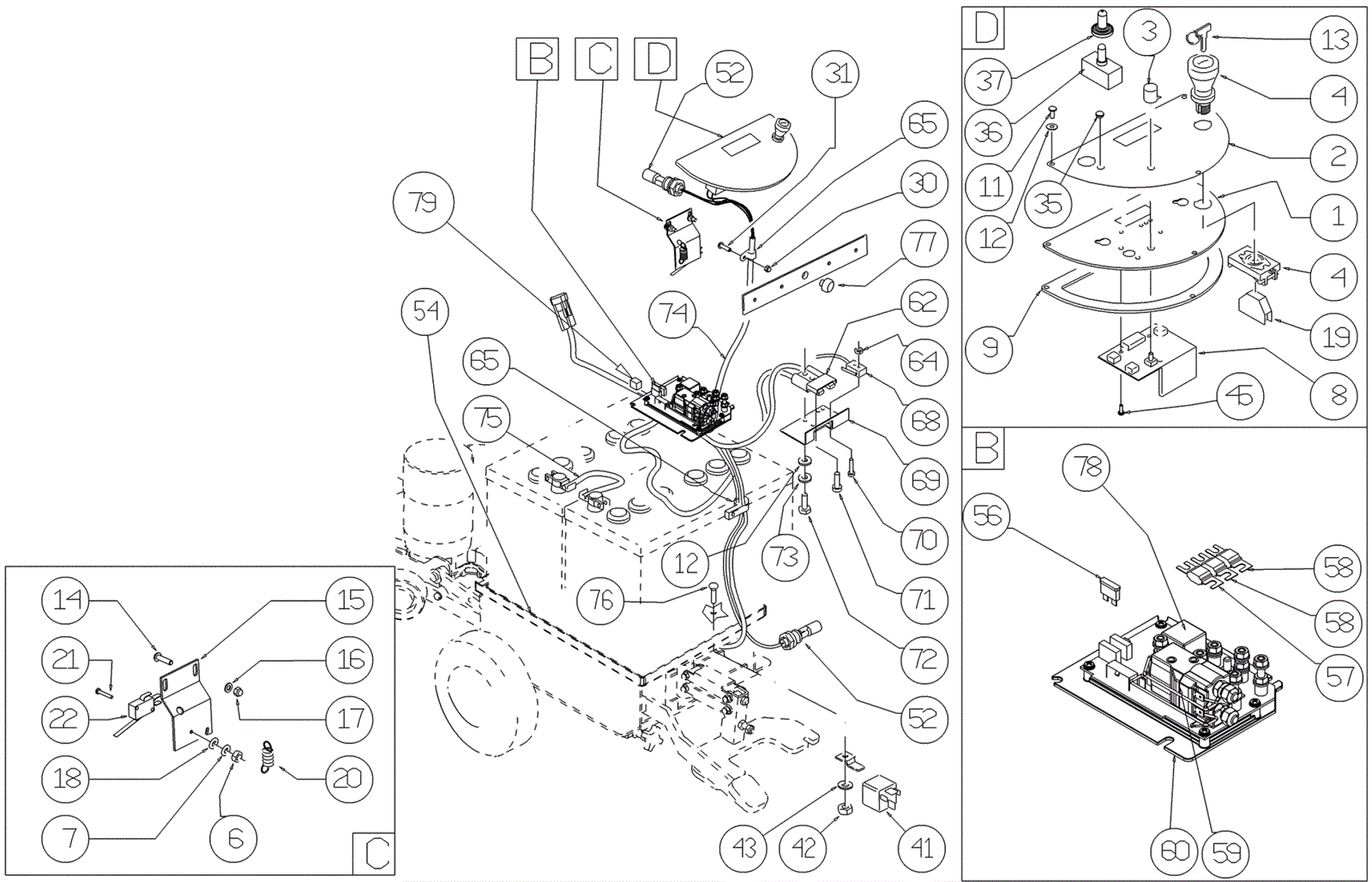

Gansow CT40 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4715 Support $25.47 1 usually ships 1-5 days
2 203-5046 Control panel decal $22.22 1 usually ships 10-12 days
3 203-5225 Knob $7.67 1 usually ships 10-12 days
6 189-1446 Nut M3 $3.37 5 usually ships 1-5 days
7 189-2241 Washer D3 $4.84 5 usually ships 1-5 days
8a 203-5045 Control board $748.31 1 (after April, 2013) usually ships 10-12 days
8b 203-5045 Control board $748.31 1 (before April, 2013) usually ships 10-12 days
9 203-4719 Gasket $27.97 1 usually ships 1-5 days
11 203-4720 Screw 4 x 10 $3.94 3 usually ships 10-12 days
12 203-0235 Washer $2.79 10 usually ships 10-12 days
13 203-3401 Key (pkg of 2) $32.16 1 ships same day
14 189-1508 Turned eye screw $3.94 2 usually ships 1-5 days
15 203-4723 Plate $25.14 1 usually ships 1-5 days
16 189-1353 Washer D5 $2.79 2 usually ships 1-5 days
17 203-0789 Nut $3.43 6 usually ships 10-12 days
18 189-1441 Washer $2.79 2 usually ships 1-5 days
19 203-4349 Switch $24.30 1 usually ships 1-5 days
20a 203-4688 Spring $9.72 1 (after July, 2014) usually ships 1-5 days
20b 189-0582 Spring $17.48 1 (before July, 2014) usually ships 1-5 days
21 203-4726 Screw $3.94 2 usually ships 1-5 days
22 189-0258 Microswitch $28.61 1 usually ships 10-12 days
30 189-1472 Nut M4 $3.37 1 usually ships 1-5 days
31 189-1527 Screw 4 x 16 inch $3.94 5 usually ships 1-5 days
35 203-5226 Spacer $4.33 1 usually ships 10-12 days
36 203-5227 Switch $40.39 1 usually ships 10-12 days
37 203-5228 Switch guard $11.78 1 usually ships 10-12 days
41 203-5231 24V relay $73.29 1 usually ships 10-12 days
42 189-1536 Nut with nylon ring $1.98 1 usually ships 5-9 days
43 203-1286 Washer D6 $2.79 1 usually ships 10-12 days
45 203-4739 Screw $3.94 3 usually ships 1-5 days
52 203-4729 Sensor $74.43 2 usually ships 10-12 days
54 203-4742 Battery support $41.65 1 usually ships 10-12 days
56 203-4743 Fuse $1.19 1 usually ships 10-12 days
57 203-4744 80amp fuse $6.26 1 usually ships 1-5 days
58 203-4745 40amp fuse $16.46 2 usually ships 1-5 days
59 203-4746 100amp contactor $118.56 1 usually ships 1-5 days
60 203-4638 Control board $282.47 1 usually ships 10-12 days
62 203-4166 50amp charger plug (red) $58.49 1 usually ships 10-12 days
64 189-1458 Nut M2 $3.37 2 usually ships 1-5 days
65 203-4730 P clamp $21.98 2 usually ships 1-5 days
68 203-4734 4V microswitch $68.31 1 usually ships 10-12 days
69 203-4735 Support $14.25 1 usually ships 1-5 days
70 189-1457 Screw M2 $3.94 2 usually ships 1-5 days
71 203-4737 Screw $3.94 1 usually ships 1-5 days
72 203-4738 Screw M4 $3.94 2 usually ships 10-12 days
73 203-4740 Washer D4 $2.79 2 usually ships 1-5 days
74a 203-6146 Wiring Call for price 1 (before April, 2013) usually ships 10-12 days
74b 203-5229 Wiring $1,034.70 1 (after April, 2013) usually ships 10-12 days
75 189-0113 Battery jumper cable $84.18 1 usually ships 10-12 days
76 203-5230 Screw $3.94 1 usually ships 10-12 days
77 203-4731 Cap $1.78 1 usually ships 1-5 days
78 203-3374 Relay $55.96 1 usually ships 10-12 days
79 203-6147 Gasket $19.40 1 (after May, 2015) usually ships 10-12 days
N/S 162-0057 12V 150Ah wet battery (SNSR) $402.47 2 ships same day
