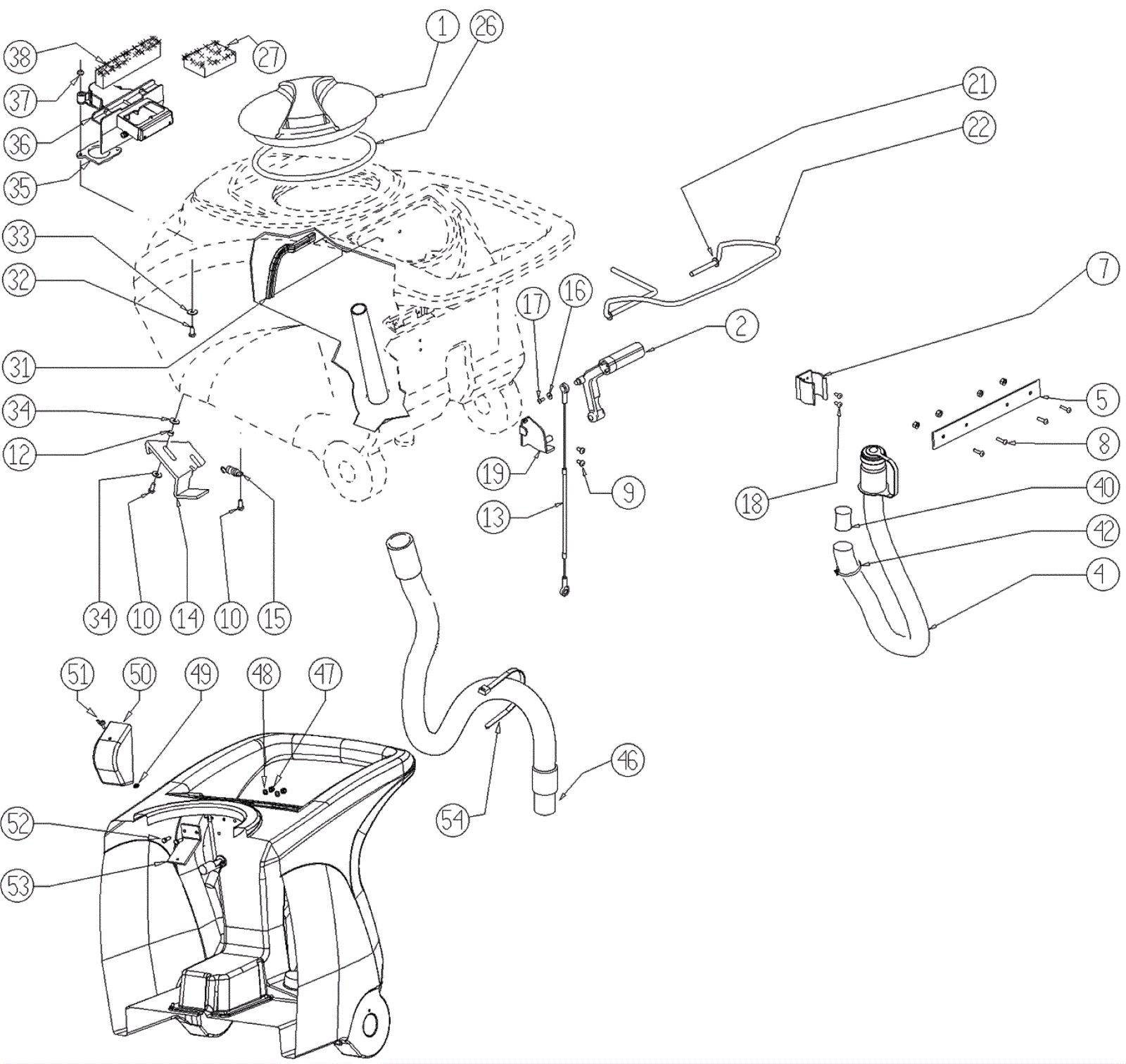

Gansow CT40 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4584 Cap $85.81 1 usually ships 10-12 days
2 203-3061 Lever $58.63 1 usually ships 10-12 days
4a 203-4683 Drain hose $77.21 1 (before April 2013) ships same day
4b 203-4683 Drain hose $77.21 1 (after April 2013) ships same day
5 203-4684 Plate $11.50 1 usually ships 1-5 days
7 203-4318 Clasp $42.74 1 usually ships 10-12 days
8 189-1508 Turned eye screw $4.20 4 usually ships 1-5 days
9 189-1357 Screw 6 x 12 inch $4.20 2 usually ships 10-12 days
10 189-1497 Screw 6 x 16 inch $4.20 3 usually ships 10-12 days
12 203-4686 Spacer $3.39 1 usually ships 1-5 days
13 203-4582 Squeegee cable $39.74 1 usually ships 10-12 days
14 203-6138 Handle bracket $23.41 1 usually ships 10-12 days
15 203-4688 Spring $10.41 1 usually ships 1-5 days
16 203-0145 Washer 4-16 inch $2.99 1 usually ships 10-12 days
17 203-1733 Screw 12 x 45 inch zinc $6.26 1 usually ships 10-12 days
18 189-1431 Screw $0.99 2 usually ships 1-5 days
19 203-4690 Squeegee bracket $84.38 1 usually ships 10-12 days
21 189-0897 Washer D8 $2.99 2 usually ships 10-12 days
22a 203-4691 Lever $46.59 1 (before June 2014) usually ships 1-5 days
22b 203-4691 Lever $46.59 1 (after June 2014) usually ships 1-5 days
26 189-0293 Gasket $46.82 1 usually ships 10-12 days
27 203-4693 Filter $15.48 1 usually ships 10-12 days
31 203-6139 Plate $16.45 1 usually ships 10-12 days
32 203-4738 Screw M4 $4.20 2 usually ships 10-12 days
33 203-0235 Washer $2.99 2 usually ships 10-12 days
34 189-1393 Washer $2.99 4 usually ships 1-5 days
35 203-4696 Gasket $3.61 1 usually ships 1-5 days
36 203-4697 Box $39.52 1 usually ships 1-5 days
37 189-1472 Nut M4 $3.61 2 usually ships 1-5 days
38 203-4699 Gasket $20.74 1 usually ships 1-5 days
40 203-4700 Gasket $9.99 2 usually ships 10-12 days
42 189-0123 Clamp 35-40 inch $1.14 1 usually ships 10-12 days
46 203-4339 Vacuum hose assembly $42.49 1 usually ships 10-12 days
47 203-0789 Nut $3.67 2 usually ships 10-12 days
48 189-1353 Washer D5 $2.99 4 usually ships 1-5 days
49 203-4703 Washer $23.35 1 usually ships 1-5 days
50 203-4704 Cover $6.33 1 usually ships 1-5 days
51 203-4705 Screw $4.20 1 usually ships 1-5 days
52 203-5980 Screw 5x20 $0.99 2 usually ships 10-12 days
53 203-4707 Bracket $9.15 1 usually ships 1-5 days
54 203-4708 Clamp $0.99 1 usually ships 10-12 days
N/S 189-1536 Nut with nylon ring $5.50 4 usually ships 5-9 days
