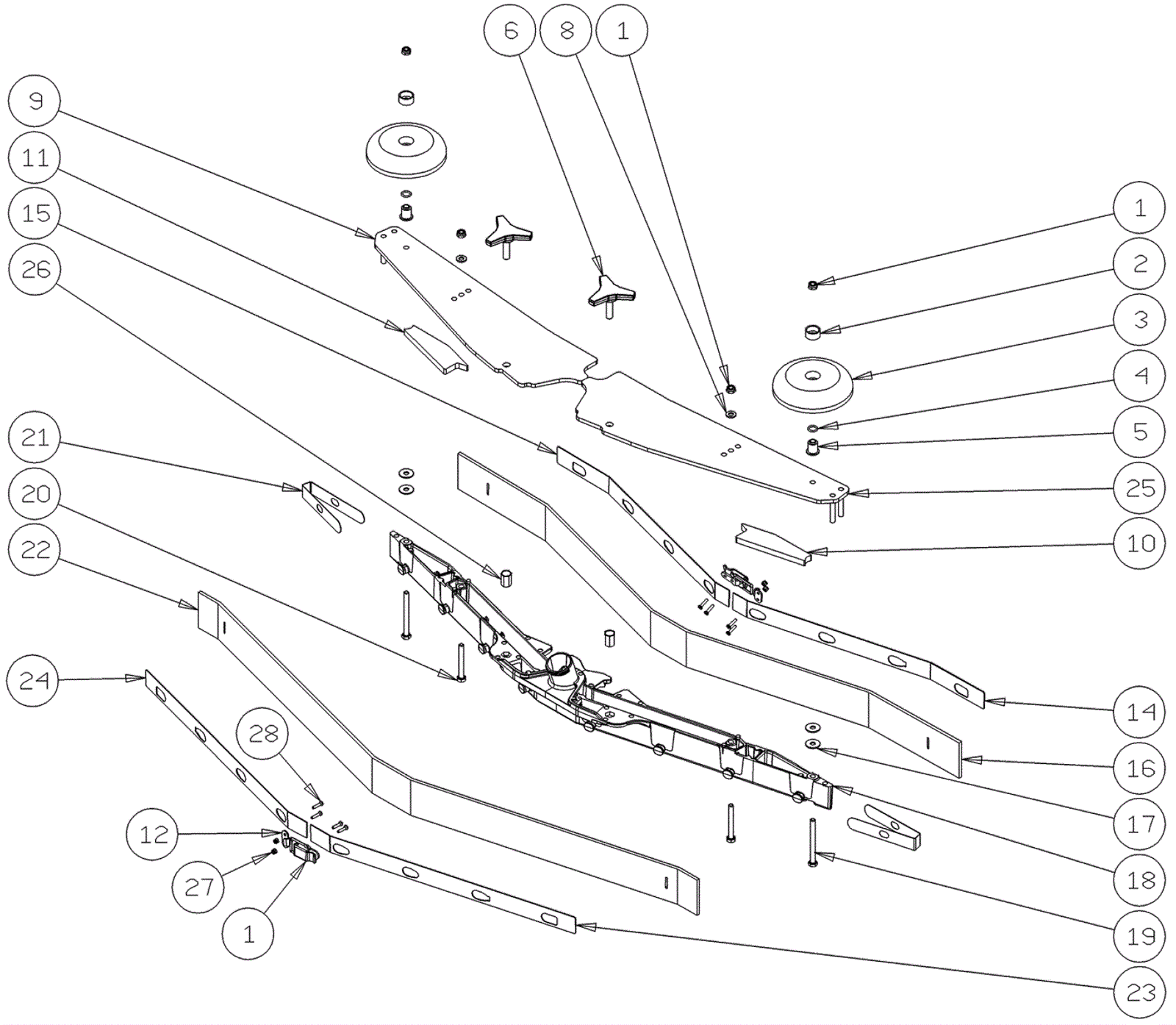

Gansow CT40 Floor Wiper Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4765 Retainer closure $9.72 2 (after September 2013) usually ships 10-12 days
2 189-5086 Bushing $14.41 2 usually ships 10-12 days
3 189-0060 Wheel $7.85 2 usually ships 10-12 days
4 189-0181 Gasket $2.77 2 usually ships 10-12 days
5 203-0920 Spacer $10.29 2 usually ships 10-12 days
6a 203-4768 Knob $9.35 2 (before March 2013) ships same day
6b 203-4768 Knob $9.35 2 (after March 2013) ships same day
8 203-1286 Washer D6 $2.79 2 usually ships 10-12 days
9 203-4769 Plate $46.73 1 usually ships 1-5 days
10 203-4770 Gasket $7.48 1 usually ships 10-12 days
11 203-4771 Gasket $5.50 1 usually ships 10-12 days
12 203-4772 Socket $7.11 2 (after September 2013) usually ships 10-12 days
14a 203-4774 Front left hand squeegee band $13.65 1 (before September 2013) usually ships 10-12 days
14b 203-4774 Front left hand squeegee band $13.65 1 (after September 2013) usually ships 10-12 days
15a 203-4776 Front right hand squeegee band $26.16 1 (before September 2013) usually ships 10-12 days
15b 203-4776 Front right hand squeegee band $26.16 1 (after September 2013) usually ships 10-12 days
16 203-3360 Squeegee blade front $64.08 1 usually ships 10-12 days
17 189-1391 Washer D6 $0.99 4 usually ships 10-12 days
18 203-4777 Squeegee weldment $120.43 1 ships same day
19 203-4778 Screw 6 x 65 $3.94 2 usually ships 10-12 days
20 203-4779 Screw M6 x 50mm $3.94 2 usually ships 10-12 days
21 203-4780 Closure $0.99 2 usually ships 10-12 days
22 203-3361 Squeegee blade rear $74.46 1 usually ships 10-12 days
23a 203-4782 Rear right hand squeegee band $26.04 1 (before September 2013) usually ships 10-12 days
23b 203-4782 Rear right hand squeegee band $26.04 1 (after September 2013) usually ships 10-12 days
24a 203-4784 Rear left hand squeegee band $26.04 1 (before September 2013) usually ships 10-12 days
24b 203-4784 Rear left hand squeegee band $26.04 1 (after September 2013) usually ships 10-12 days
25 203-4785 Plate $43.25 1 usually ships 1-5 days
26 203-4786 Insert $2.46 2 usually ships 10-12 days
27 203-4787 Nut M3 $3.37 8 (after September 2013) usually ships 10-12 days
28 203-4788 Screw 3 x 8 inch $3.94 8 (after September 2013) usually ships 10-12 days
