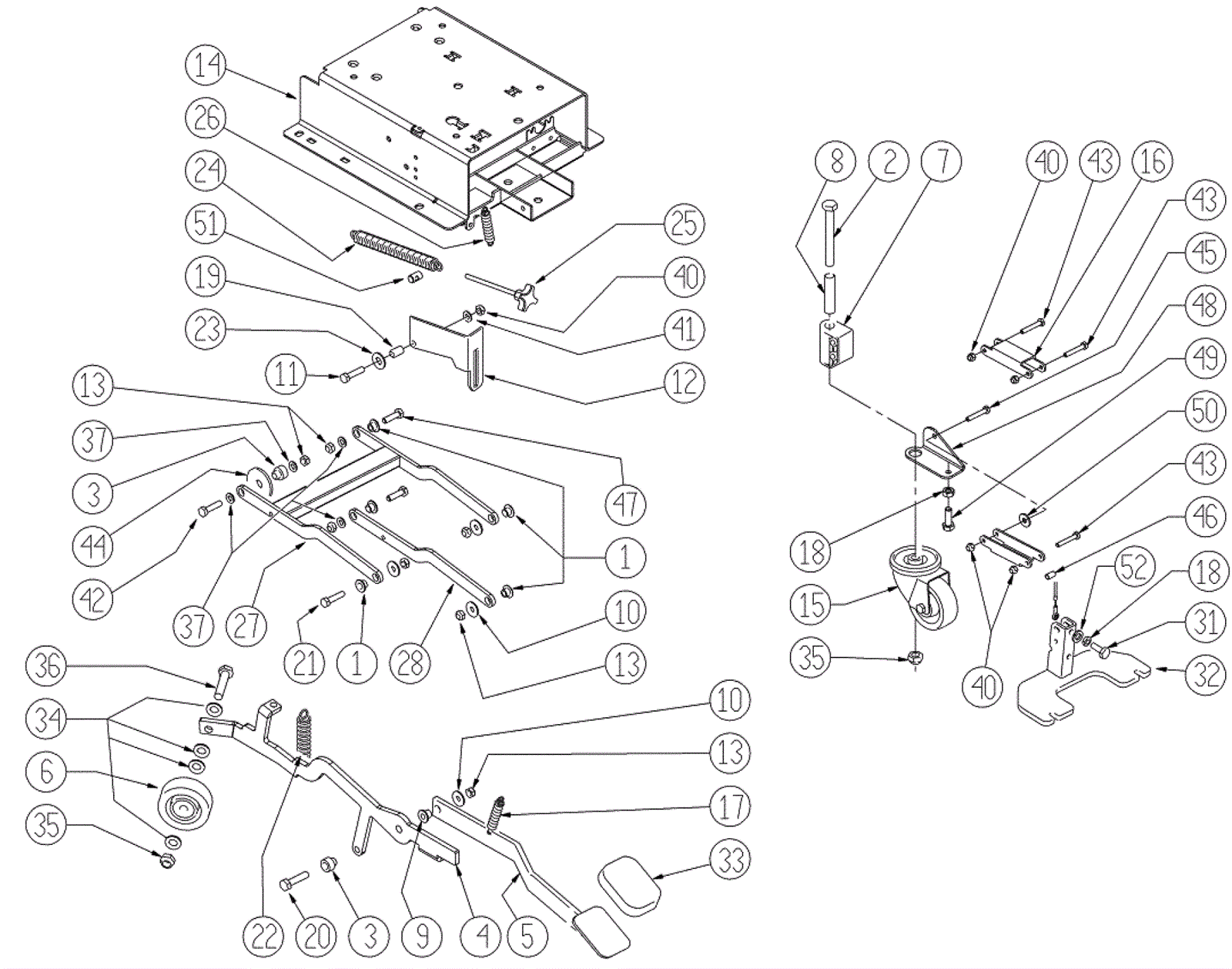

Gansow CT40 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4804 Bushing $5.50 5 usually ships 1-5 days
2 203-4805 Screw $22.01 1 usually ships 10-12 days
3 203-4806 Bushing $18.40 2 usually ships 10-12 days
4 203-4807 Lever $106.99 1 usually ships 1-5 days
5a 203-4809 Pedal $51.62 1 (before June 2013) usually ships 1-5 days
5b 203-4809 Pedal $51.62 1 (after July 2013) usually ships 1-5 days
6 203-0865 Wheel $354.85 1 usually ships 10-12 days
7 203-4365 Block $10.35 1 usually ships 10-12 days
8 203-4810 Pin $16.01 1 usually ships 10-12 days
9 203-4811 Bushing $33.62 1 usually ships 10-12 days
10 189-1400 Washer $2.99 4 usually ships 10-12 days
11 203-4812 Screw $5.06 1 usually ships 10-12 days
12 203-4813 Plate $23.41 1 usually ships 10-12 days
13 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 7 ships same day
14 203-4814 Base $474.44 1 usually ships 1-5 days
15 203-4308 Caster wheel (OBSOLETE) $70.02 1 usually ships 10-12 days
16 203-4817 Lever arm $58.53 2 usually ships 1-5 days
17 189-0582 Spring $18.70 1 usually ships 1-5 days
18 189-1492 Nut M8 $0.99 1 usually ships 10-12 days
19 189-0523 Bushing $10.41 1 usually ships 1-5 days
20 189-1401 Screw $4.20 1 usually ships 1-5 days
21 189-1479 Screw 8 x 25 inch $4.20 3 usually ships 1-5 days
22 203-4821 Spring $9.41 1 usually ships 1-5 days
23 189-1393 Washer $2.99 1 usually ships 1-5 days
24 189-0166 Spring $15.61 1 usually ships 1-5 days
25 189-1516 Knob $28.19 1 usually ships 1-5 days
26 203-4824 Spring $30.02 1 usually ships 10-12 days
27 203-4825 Arm $146.84 1 usually ships 1-5 days
28 203-4826 Arm $26.81 1 usually ships 1-5 days
31 189-1344 Screw M8 $4.20 1 usually ships 10-12 days
32 203-4827 Plate $116.88 1 usually ships 10-12 days
33 203-4828 Cover $8.01 1 usually ships 10-12 days
34 203-1341 Washer D12 $2.99 4 usually ships 1-5 days
35 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 2 usually ships 12-18 days
36 203-4829 Screw $4.20 1 usually ships 1-5 days
37 189-0897 Washer D8 $2.99 4 usually ships 10-12 days
40 189-1536 Nut with nylon ring $5.50 5 usually ships 5-9 days
41 203-1286 Washer D6 $2.99 1 usually ships 10-12 days
42 189-1344 Screw M8 $4.20 1 usually ships 10-12 days
43 203-5163 Screw $2.46 3 usually ships 10-12 days
44 203-4841 Gasket $21.59 1 usually ships 1-5 days
45 203-4832 Screw $4.25 1 usually ships 10-12 days
46 203-4833 Spacer $10.35 1 usually ships 10-12 days
47 203-1344 Screw $4.20 2 usually ships 1-5 days
48 203-4835 Bracket $20.14 1 usually ships 1-5 days
49 189-1512 Screw 8 x 20 inch $4.20 1 usually ships 10-12 days
50 189-1391 Washer D6 $0.99 1 usually ships 10-12 days
51 189-1515 Spring coupling $14.65 1 usually ships 1-5 days
52 203-4414 Washer $2.99 1 (after March 2013) usually ships 10-12 days
