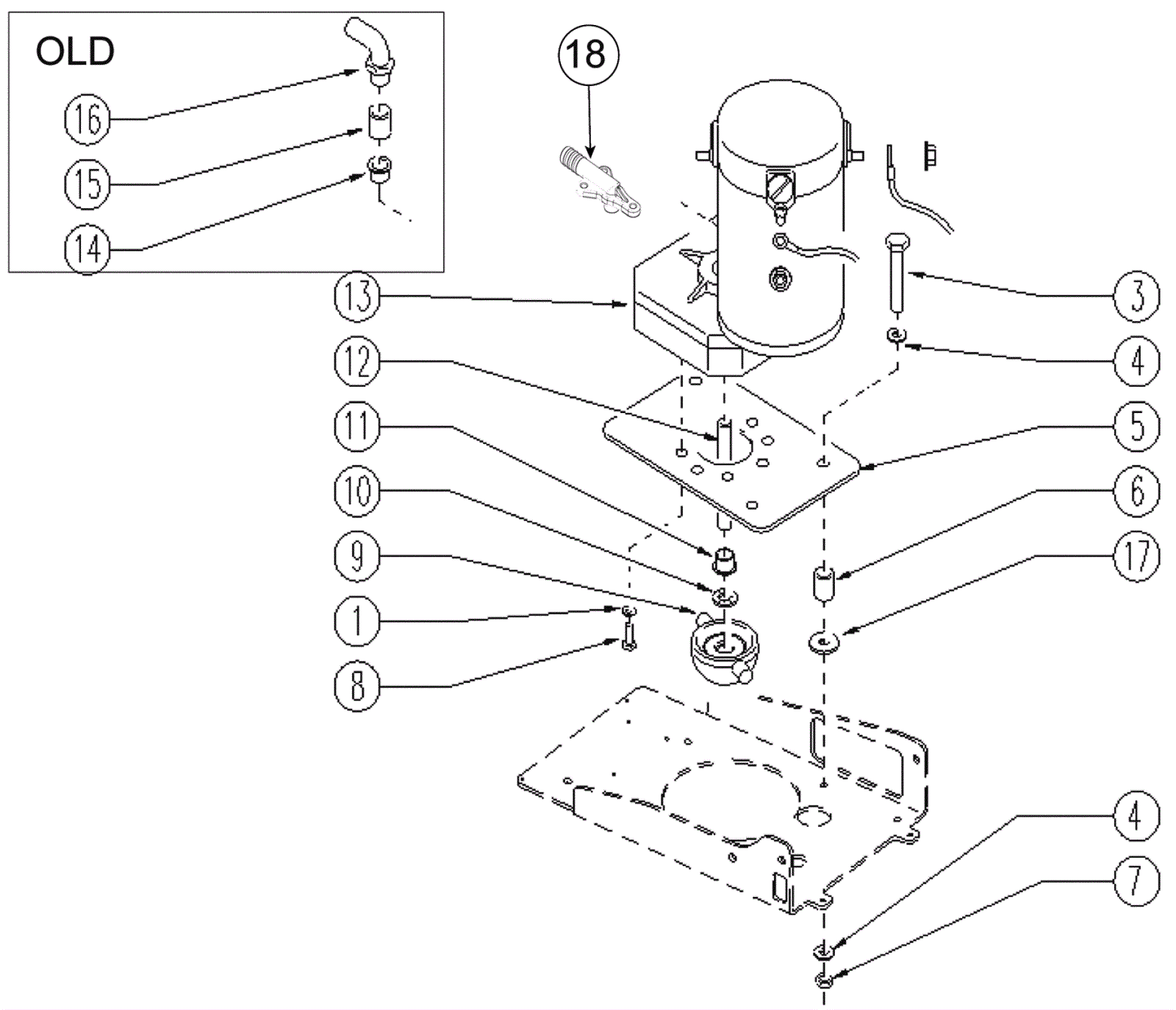

Gansow CT40 Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-0971 Washer D6 $3.01 8 usually ships 5-15 days
3 203-1344 Screw $1.10 4 (before March 2008) usually ships 1-5 days
4 189-0897 Washer D8 $1.10 4 (before March 2008) usually ships 5-15 days
5 203-4653 Flange $57.65 1 (before March 2008) usually ships 1-5 days
6 189-0168 Bushing $4.36 4 (before March 2008) usually ships 1-5 days
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 (before March 2008) ships same day
8 189-1357 Screw 6 x 12 inch $4.77 8 usually ships 5-15 days
9 203-4655 Drive disk $53.63 1 usually ships 1-5 days
10a 203-4658 Washer $4.88 1 (before May 2009) usually ships 1-5 days
10b 203-4658 Washer $4.88 1 (after May 2009) usually ships 1-5 days
11 189-1122 Bearing $18.63 1 (before July 2013) usually ships 1-5 days
12 203-4657 Tube $35.73 1 (before July 2013) usually ships 1-5 days
13a 203-4801 Gearbox motor $2,514.83 1 (before February 2008) usually ships 1-5 days
13b 203-4802 Gearbox motor $1,482.97 1 (between February 2008 and July 2013) usually ships 1-5 days
13c 203-3376 Carbon brush (sold individually) $16.54 4 usually ships 1-5 days
13d 203-4803 Gearbox motor $1,163.39 1 (after July 2013) usually ships 1-5 days
14 189-1122 Bearing $18.63 1 (before July 2013) usually ships 1-5 days
15 203-4659 Bushing $19.36 1 (before July 2013) usually ships 1-5 days
16 189-0142 Union/connector $11.44 1 (before July 2013) usually ships 5-15 days
17 189-1378 Washer $4.75 4 (before March 2008) usually ships 1-5 days
18 203-6130 Connector $10.19 1 (after July 2013) usually ships 5-15 days
