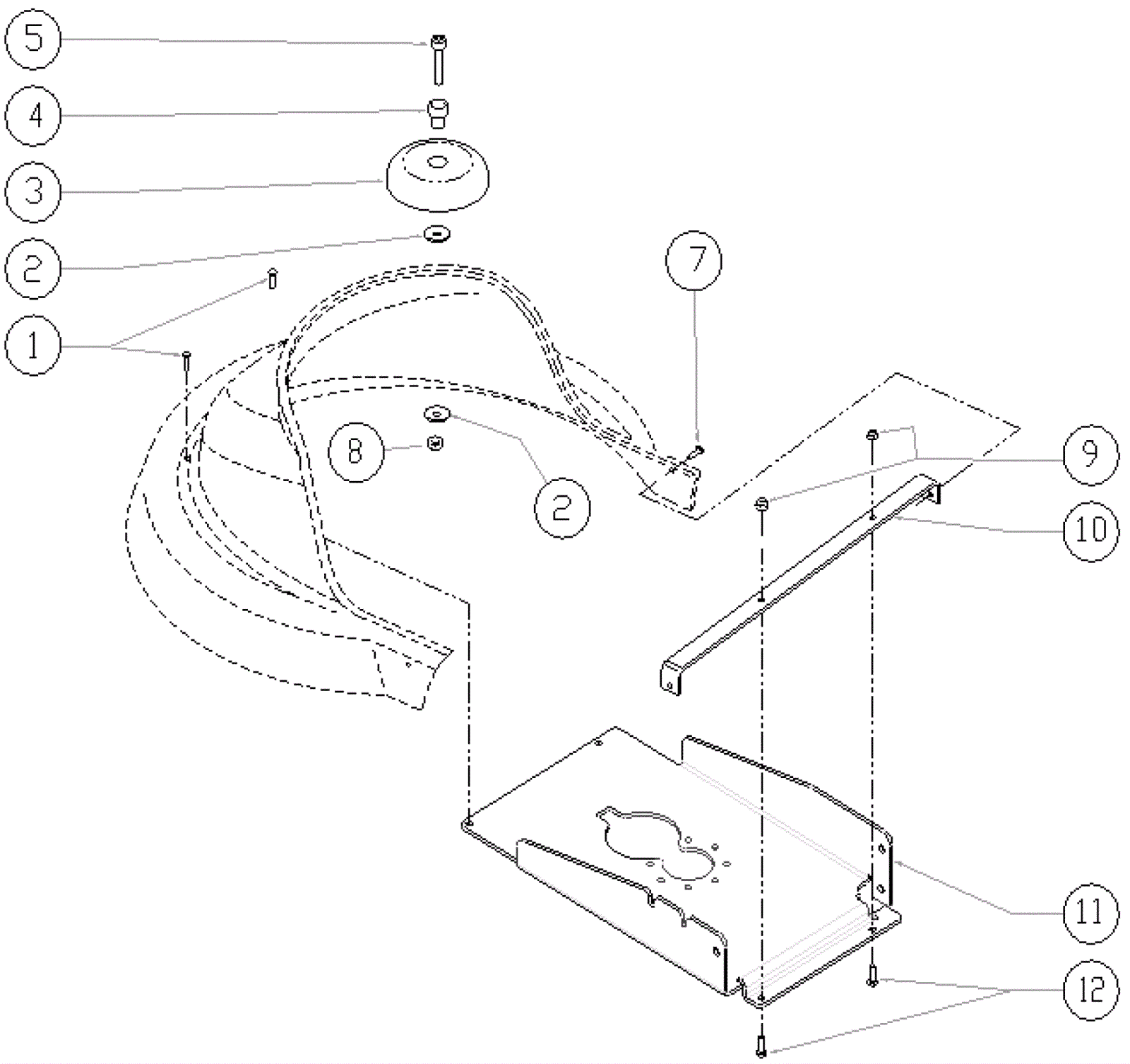

Gansow CT40 Motor Support Assembly

#PartDescriptionPriceReqNotesAvailability
1a 189-1352 Screw $4.77 2 (before February 2010) usually ships 5-15 days
1b 203-4647 Screw M4 x 16 $2.35 2 (after February 2010) usually ships 5-15 days
2 189-1400 Washer $4.75 2 usually ships 5-15 days
3 189-0060 Wheel $7.70 1 usually ships 5-15 days
4 189-0901 Bushing $34.64 1 usually ships 1-5 days
5a 203-4648 Screw M8 x 30 $4.77 1 (after June 2009) usually ships 1-5 days
5b 203-4648 Screw M8 x 30 $4.77 1 (before June 2009) usually ships 1-5 days
7 203-4647 Screw M4 x 16 $2.35 2 usually ships 5-15 days
8 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
9 203-0524 Nut M6 lock $5.50 2 usually ships 1-5 days
10 203-4650 Support bracket $88.22 1 usually ships 1-5 days
11 203-4651 Plate $149.23 1 usually ships 1-5 days
12 189-1497 Screw 6 x 16 inch $3.85 2 usually ships 5-15 days
