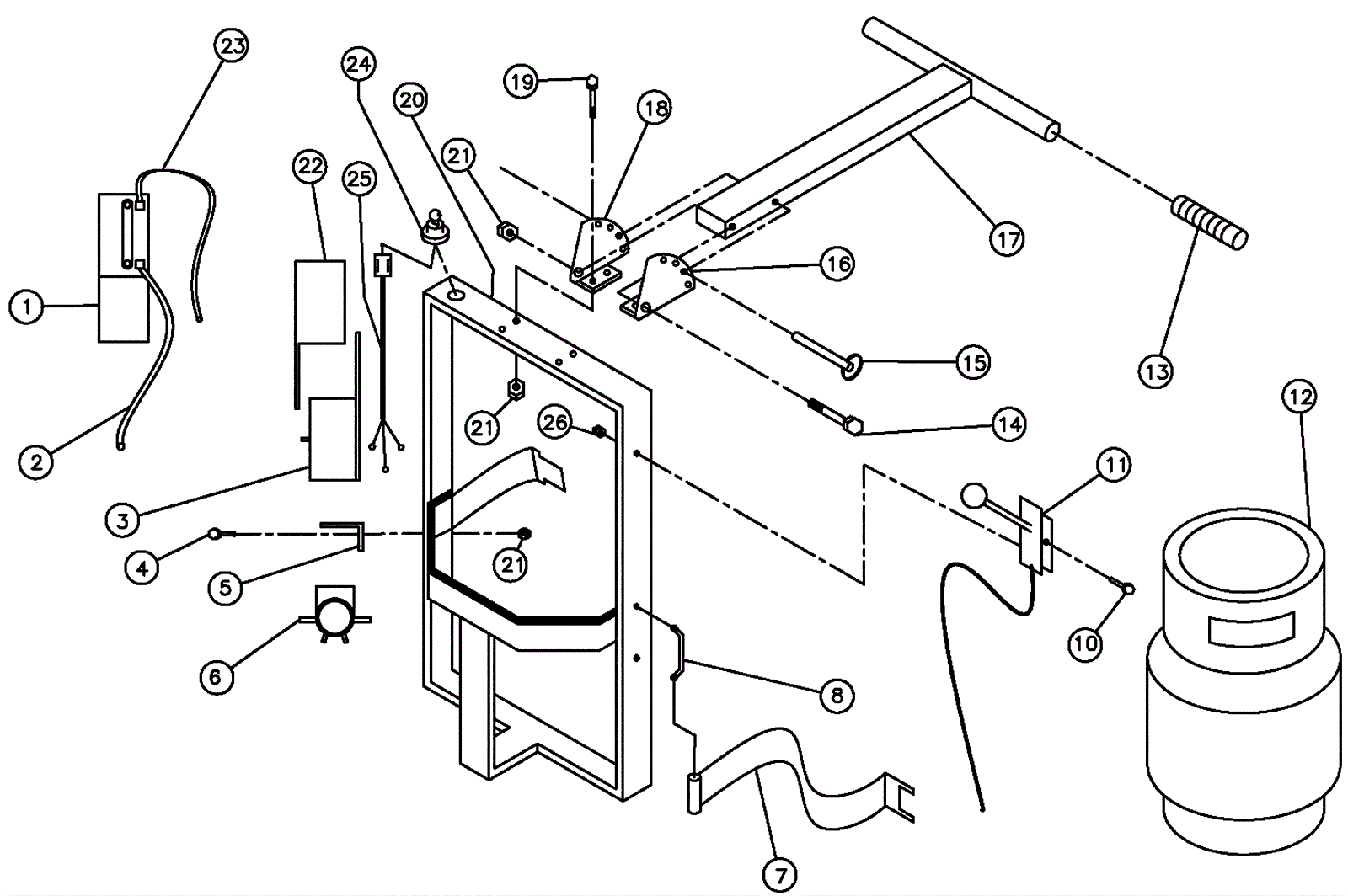

PB27 Handle assembly

#PartDescriptionPriceReqNotesAvailability
1 162-0007 12V 12Ah sealed battery $124.80 1 ships same day
2 201-0059 Battery cable 16 1/2 inch $24.41 1 usually ships 3-11 days
3 201-0025 Bottom battery cover $43.52 1 usually ships 3-11 days
4 999-0578 Bolt 3/8-16 x 1/2 hex head grade 5 plain finish $0.99 2 ships same day
5 201-0060 Battery box bracket $30.99 1 usually ships 1-5 days
6 201-0061 Starter solenoid $73.39 1 usually ships 3-11 days
7 N/A Not available Call for price 1 usually ships 3-26 days
8 201-0063 Tank strap bracket loop $8.18 2 usually ships 1-5 days
10 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 1 ships same day
11 201-0064 Throttle cable $51.16 1 usually ships 3-11 days
12 161-0004 Steel propane tank $382.95 1 usually ships 5-16 days
13 201-0066 Handle grip (OBSOLETE) $4.98 2 usually ships 3-11 days
14 999-0042 Bolt 3/8-16 x 3 hex head grade 5 zinc plated $1.21 1 ships same day
15 201-0067 Lock pin $21.88 1 usually ships 3-11 days
16 201-0068 Handle bracket left $40.08 1 usually ships 1-5 days
17 201-0069 T-handle $74.62 1 usually ships 1-5 days
18 201-0070 Handle bracket right $40.27 1 usually ships 1-5 days
19 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
20 201-0071 Handle main frame (OBSOLETE) $259.59 1 usually ships 1-5 days
21 201-0072 Nut 3/8-16 stover lok $1.93 7 usually ships 3-11 days
22 201-0024 Battery top cover $286.96 1 usually ships 3-11 days
23 201-0073 Battery cable 26 inch $16.45 1 usually ships 1-5 days
24 201-0074 Key switch $50.92 1 usually ships 3-11 days
25 203-5579 Polystyrene Call for price 1 usually ships 5-15 days
26 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
