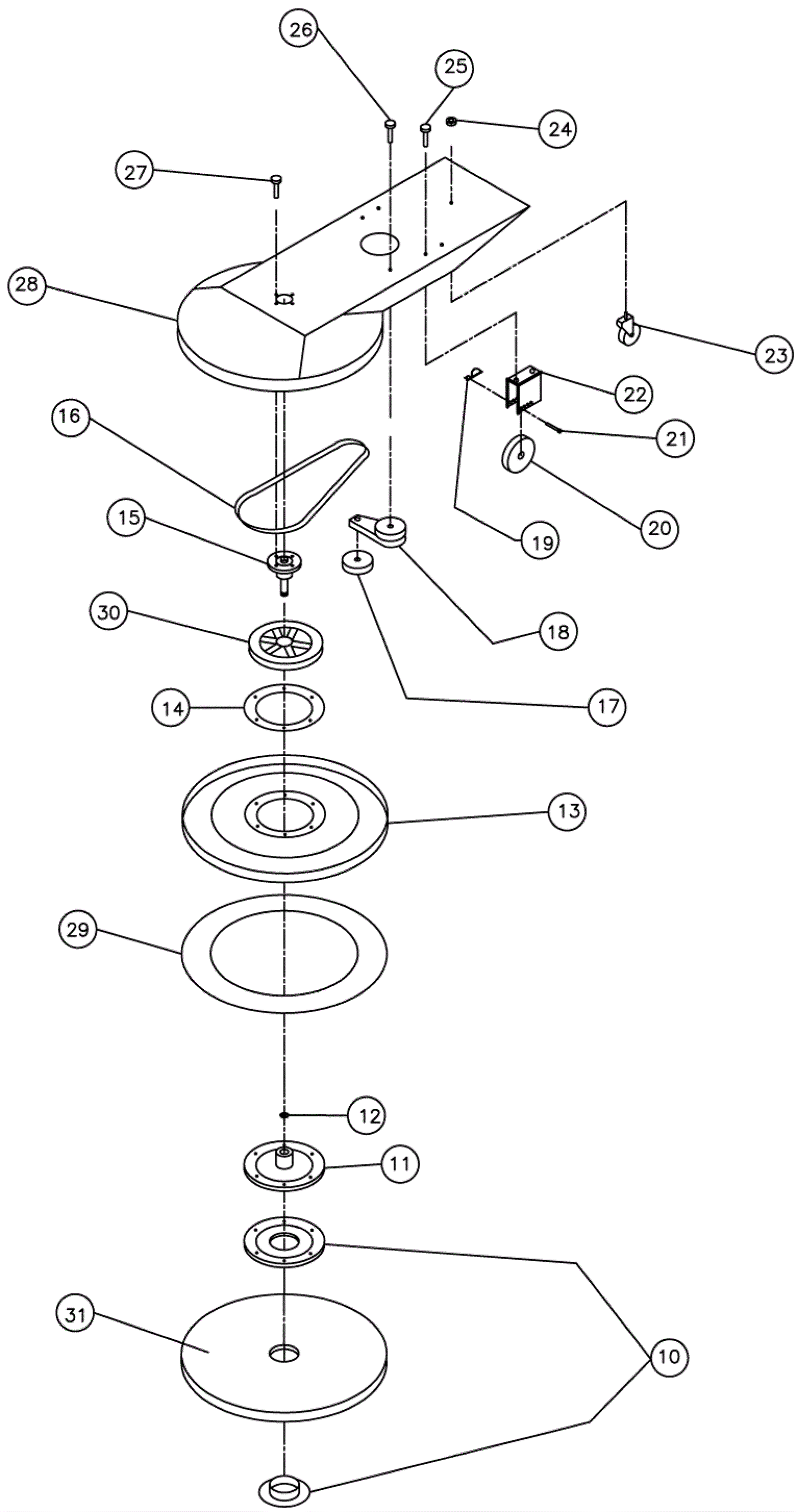

PB27 Body Assembly

#PartDescriptionPriceReqNotesAvailability
10 203-3434 Filter $6.77 1 usually ships 10-12 days
11 201-0077 Pad drive hub $49.51 1 usually ships 1-5 days
12 201-0078 Washer $3.81 1 usually ships 1-5 days
13a 201-0093 21 inch pad driver (OBSOLETE) $254.88 1 usually ships 1-5 days
13b 201-2045 27 inch pad driver with hub (OBSOLETE) $490.40 1 (Mighty lok) usually ships 8-10 days
14 201-0080 Pad driver support ring $12.23 1 usually ships 1-5 days
15 201-0081 Spindle assembly with bub and bearings $197.30 1 usually ships 8-10 days
16 201-0094 Belt $57.77 1 usually ships 1-5 days
17 201-0083 Tensioner pulley $60.53 1 usually ships 8-10 days
18 201-0084 Belt tensioner $139.48 1 usually ships 8-10 days
19 201-0085 Hitch pin clip $2.30 2 usually ships 8-10 days
20 991-2012 5 inch wheel $18.47 2 (5") ships same day
21 201-0086 Clevis pin $2.30 2 usually ships 8-10 days
22 201-0087 Wheel bracket (OBSOLETE) $32.49 2 usually ships 8-10 days
23 201-0088 Swivel castor $19.77 1 usually ships 8-10 days
24 201-0089 Nut 1/2-13 x 1 1/2 $1.97 1 usually ships 1-5 days
25 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
26 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated $1.19 1 ships same day
27 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 4 ships same day
28a 201-0095 21 inch aluminum body frame (OBSOLETE) $383.90 1 (21") usually ships 1-5 days
28b 201-0090 27 inch aluminum body frame (OBSOLETE) Call for price 1 (27") usually ships 1-5 days
30a 201-0097 Spindle pulley 6 3/4 inch (OBSOLETE) $47.85 1 (6 3/4") usually ships 1-5 days
30b 201-0092 Spindle pulley 7 1/2 inch $101.22 1 (7 1/2") usually ships 1-5 days
