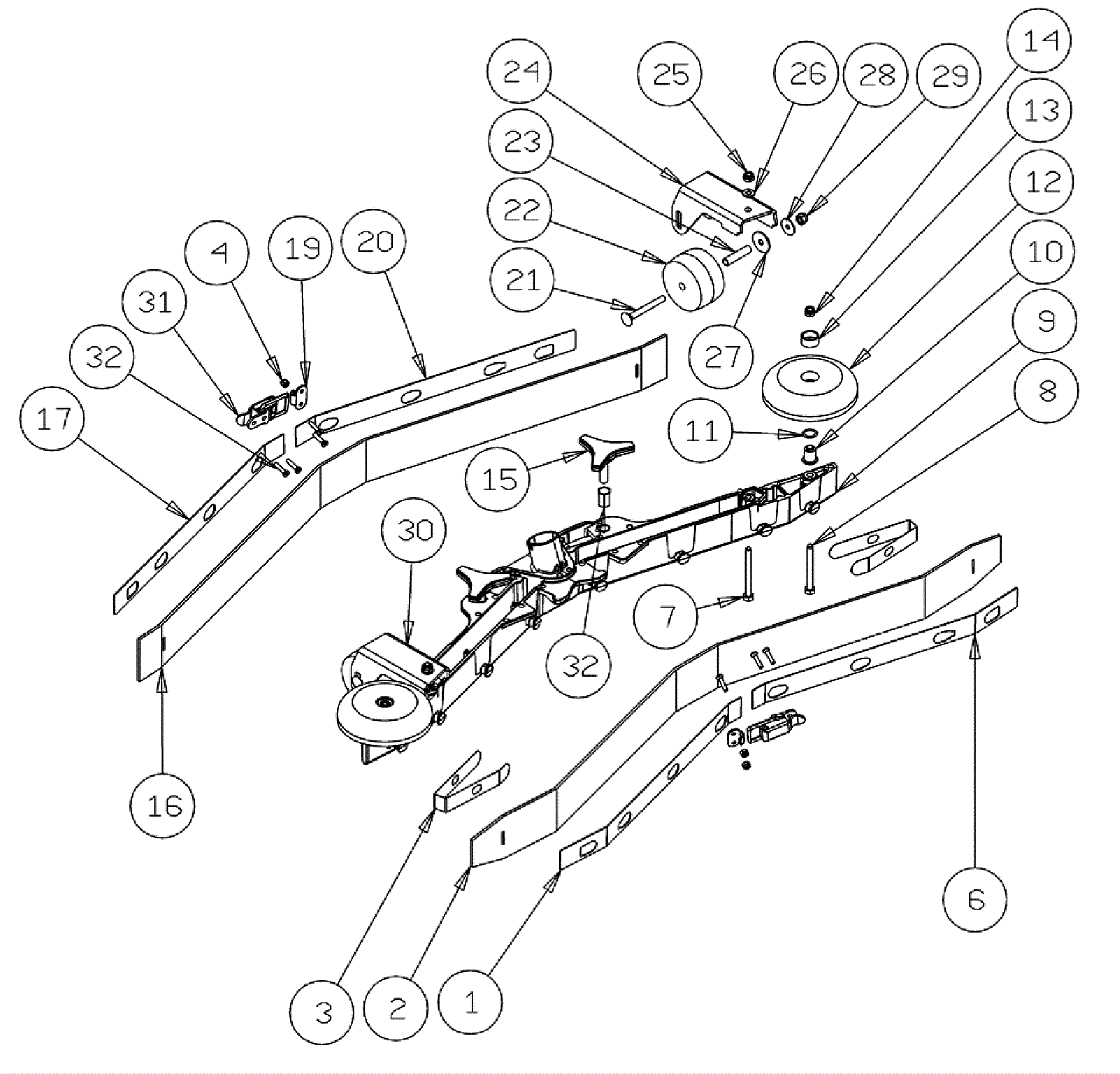

CT45 Squeegee Assembly- Old Style

#PartDescriptionPriceReqNotesAvailability
1b 203-5534 Sheet metal $14.96 1 (after 09/2013) usually ships 10-12 days
2a 203-5535 Squeegee blade rubber front $51.65 1 (before 07/2013) ships same day
2b 203-5535 Squeegee blade rubber front $51.65 1 (after 07/2013) ships same day
3 203-4780 Closure $0.99 2 usually ships 10-12 days
4 203-4787 Nut M3 $3.37 8 (after 09/2013) usually ships 10-12 days
6b 203-5537 Sheet metal $14.96 1 (after 09/2013) usually ships 10-12 days
7 189-1539 Screw $3.94 2 usually ships 10-12 days
8 189-1488 Screw M6 $3.94 2 usually ships 10-12 days
9 203-5538 Squeegee body $51.92 1 usually ships 10-12 days
10 203-0920 Spacer $10.29 2 usually ships 10-12 days
11 189-0181 Gasket $2.77 2 usually ships 10-12 days
12 189-0060 Wheel $7.85 2 usually ships 10-12 days
13 189-5086 Bushing $14.41 2 usually ships 10-12 days
14 189-1536 Nut with nylon ring $1.98 2 usually ships 5-9 days
15a 203-4768 Knob $9.35 2 (before 03/2013) ships same day
15b 203-4768 Knob $9.35 2 (after 03/2013) ships same day
16 203-5539 Squeegee blade rubber rear $51.74 1 ships same day
17 203-5541 Right hand rear squeegee retainer $22.44 1 (after 09/2013) usually ships 10-12 days
19 203-4772 Socket $7.11 2 (after 09/2013) usually ships 10-12 days
20a 203-5542 Bracket Call for price 1 (before 09/2013) usually ships 10-12 days
20b 203-5543 Left hand rear squeegee retainer $22.25 1 (after 09/2013) usually ships 10-12 days
21 203-5428 Screw M6 $3.94 2 usually ships 10-12 days
22 203-5544 Wheel Call for price 2 usually ships 10-12 days
23 203-5430 Spacer $8.79 2 usually ships 10-12 days
24 203-5545 Support $15.75 1 usually ships 10-12 days
25 189-1536 Nut with nylon ring $1.98 2 usually ships 5-9 days
26 203-1286 Washer D6 $2.79 2 usually ships 10-12 days
27 189-1398 Washer 6 x 24 inch $2.79 2 usually ships 10-12 days
28 189-1391 Washer D6 $0.99 2 usually ships 10-12 days
29 203-0524 Nut M6 lock $5.50 2 usually ships 1-5 days
30 203-5546 Support $42.85 1 usually ships 10-12 days
31 203-4765 Retainer closure $9.72 2 (after 09/2013) usually ships 10-12 days
32a 203-5426 Insert $22.67 2 usually ships 10-12 days
32b 203-4788 Screw 3 x 8 inch $3.94 8 (after 09/2013) usually ships 10-12 days
