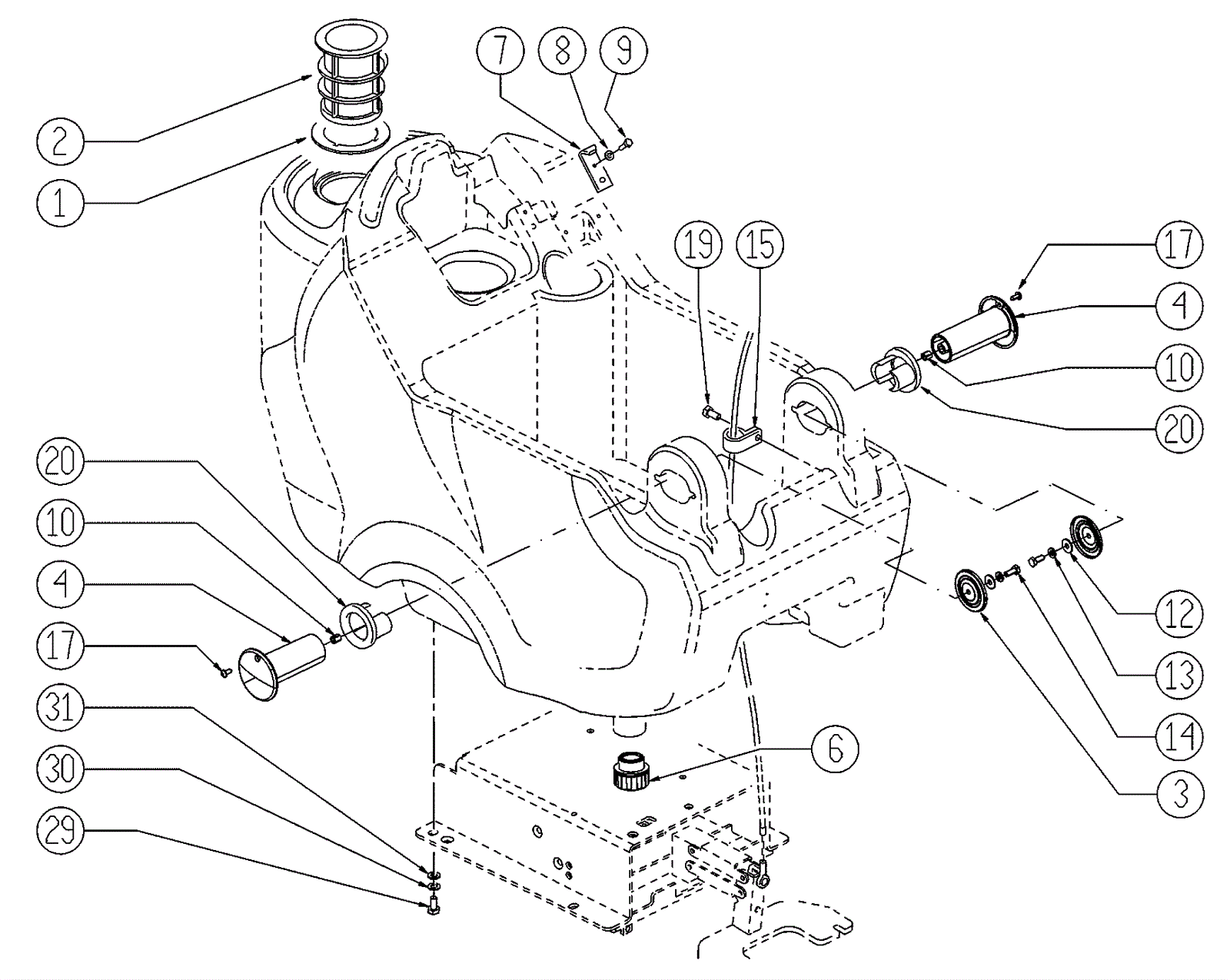

CT70 Water Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4753 Gasket $9.15 1 usually ships 5-15 days
2 203-4754 Filter $36.28 1 usually ships 5-15 days
3 203-4755 Sheet metal $2.27 2 usually ships 1-5 days
4 189-1109 Pin $84.12 2 usually ships 1-5 days
6 203-4757 Cap $33.77 1 usually ships 5-15 days
7 203-4758 Plate $11.75 1 usually ships 1-5 days
8 203-0971 Washer D6 $3.01 1 usually ships 5-15 days
9 203-4759 Screw $3.85 1 usually ships 1-5 days
10 189-1108 Insert $4.75 2 usually ships 1-5 days
12 189-1391 Washer D6 $3.16 2 usually ships 5-15 days
13 203-0971 Washer D6 $3.01 2 usually ships 5-15 days
14 189-1497 Screw 6 x 16 inch $3.85 2 usually ships 5-15 days
15 203-4761 P clamp $7.63 2 usually ships 1-5 days
17 189-1629 Screw 5 x 12 inch screw $3.21 2 ships same day
19 203-4713 Screw $4.64 1 usually ships 1-5 days
20 203-4763 Rubber insert $9.48 2 usually ships 1-5 days
29 189-1499 Screw $4.77 4 usually ships 1-5 days
30 189-1511 Washer $4.75 4 usually ships 5-15 days
31 189-0897 Washer D8 $1.10 4 usually ships 5-15 days
