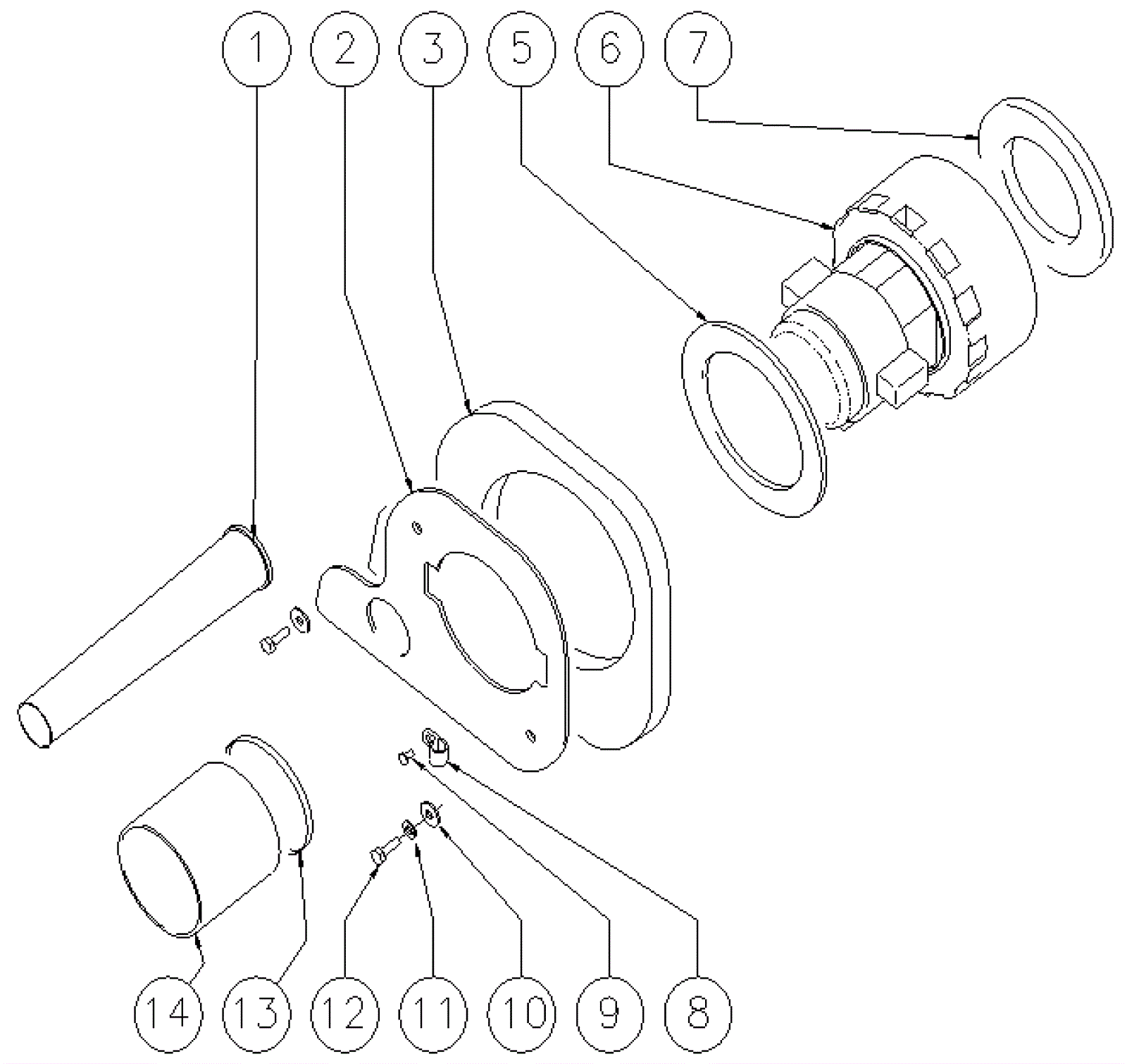

CT70 Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1a 203-4661 Tube $15.25 1 (before 06.2007) usually ships 1-5 days
1b 203-4662 Tube $22.23 1 (after 06.2007) usually ships 5-15 days
2 203-4663 Flange $38.37 1 usually ships 5-15 days
3 203-4664 Sound-proofing aspirator $23.51 1 usually ships 5-15 days
5 203-4665 Flange $7.63 1 usually ships 5-15 days
6a 203-3359 24V 2 stage vacuum motor $387.92 1 (before 11.2008) usually ships 5-15 days
6b 203-4666 Carbon brush (sold individually) $23.03 2 (after 11.2008) usually ships 5-15 days
7 203-4495 Gasket $19.99 1 usually ships 5-15 days
8 203-4730 P clamp $21.55 1 usually ships 1-5 days
10 189-1391 Washer D6 $3.16 2 usually ships 5-15 days
11 203-0971 Washer D6 $3.01 2 usually ships 5-15 days
12 189-1497 Screw 6 x 16 inch $3.85 2 usually ships 5-15 days
13a 203-4668 Clamp $5.74 1 (before 05.2007) usually ships 1-5 days
13b 203-4671 Clamp $14.96 1 (after 04.2007) usually ships 1-5 days
14a 203-4673 Tube $11.25 1 (before 05.2007) usually ships 5-15 days
14b 203-4673 Tube $11.25 1 (after 04.2007) usually ships 5-15 days
