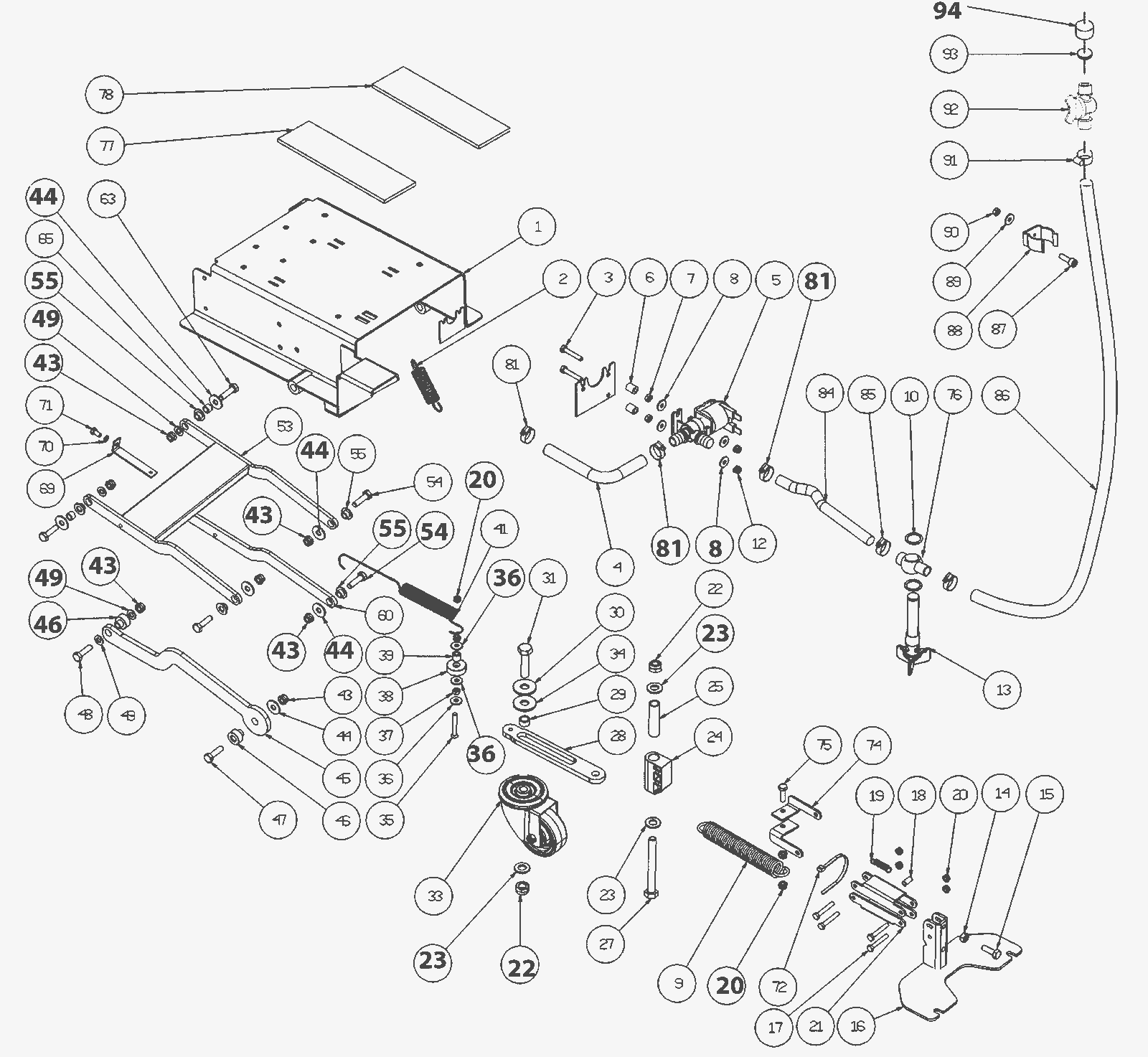

Frame Assembly

#PartDescription ReqNotesAvailability
1 203-9099 Base 1
2 203-9100 Spring 1
3 203-4738 Screw M4 2
4 203-4747 Tube (Sold by the meter) 70mm
5 203-4749 Solenoid valve 1
6 203-9101 Spacer 2
7 189-1434 Nut 2
8 375-5391 Washer 12D 4
9 203-9102 Spring 1
10 675-9928 Washer gasket 2
13a 203-0852 Filter 1 (before 02/2013)
13b 203-0852 Filter 1 (after 02/2013)
14 189-1492 Nut M8 1
15a 189-1344 Screw M8 1 (before 04/2011)
15b 203-1344 Screw 1 (after 04/2011)
16 203-4827 Plate 1
17 189-1483 Screw 6 x 40 inch 4
18 203-4833 Spacer 1
19 203-4824 Spring 1
20 189-1536 Nut with nylon ring 8
21 203-4817 Lever arm 2
22 999-0503 Nut M12-1.75 hex stainless steel 2
23 203-1341 Washer D12 3
24 203-4365 Block 1
25 203-9103 Pin 1
27 203-3651 Screw M12 x 90 1
28 203-9104 Arm 1
29 203-9105 Spacer 1
30 203-4842 Washer 1
31 203-9106 Screw M12 x 50 1
33 203-4815 Castor wheel 1
34 203-9107 Washer 1
35 203-5302 Screw M6 1
36 189-1391 Washer D6 3
37 189-1489 Nut M6 1
38 203-9108 Bushing 1
39 203-5603 Spacer 1
41 189-0556 Spring 1
43 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
44 375-9615 Washer D. 8 x 24 inox 5
45 203-9109 Lever 1
46 203-4806 Bushing 2
47 189-1344 Screw M8 1
48 203-5162 Screw 1
49 189-0897 Washer D8 4
53 203-5161 Arm 1
54 189-1479 Screw 8 x 25 inch 2
55 203-4804 Bushing 4
60 203-4826 Arm 1
63 203-1344 Screw 2
65 189-0168 Bushing 2
69 203-9110 Tie rod 1
70 203-0971 Washer D6 1
71 189-1357 Screw 6 x 12 inch 1
72 203-4708 Clamp 1
74 203-9111 Bracket 2
75 189-1445 Turned eye screw 1
76 203-4796 Connector 1
77 203-9112 Plate 1
78 203-9113 Plate 1
81 203-1506 Clamp 3
84 203-4747 Tube (Sold by the meter) 16mm
85 203-3596 Clamp 1
86 203-3594 Solution hose (sold in meters) 70mm
87 203-2110 Screw 5x25 1
88 203-4789 Clip 1
89 189-1462 Washer 5 x 14 inch 1
90 203-0789 Nut 1
91 189-0716 Clamp 14-24 inch 1
92 203-4794 Connector 1
93 203-4793 Gasket 1
94 203-4792 Cap 1
