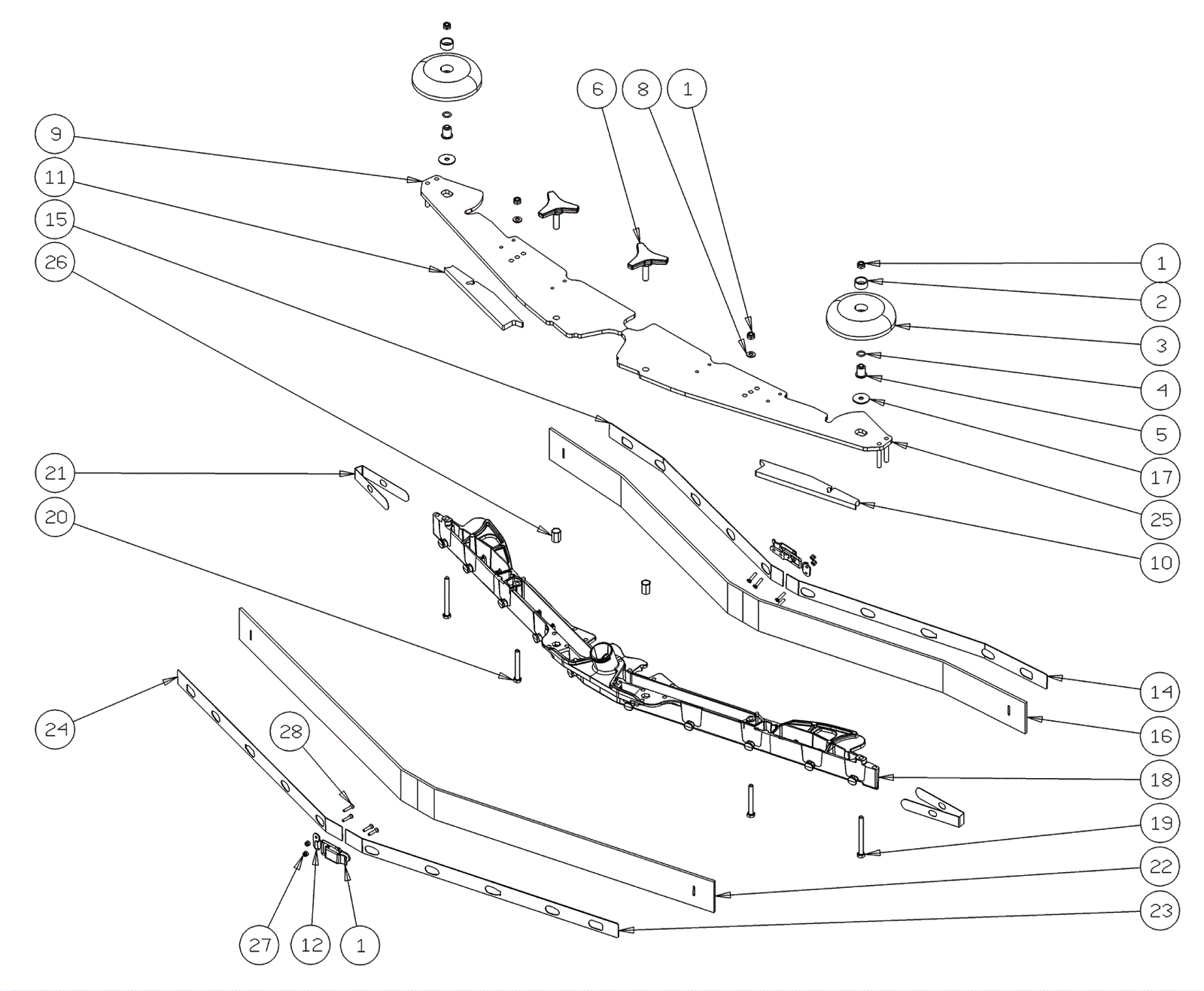

CT 70 Squeegee Assembly after 02/2012

#PartDescriptionPriceReqNotesAvailability
1 203-4765 Retainer closure $10.41 2 (after 09/2013) usually ships 10-12 days
2 189-5086 Bushing $15.42 2 usually ships 10-12 days
3 189-0060 Wheel $8.40 2 usually ships 10-12 days
4 189-0181 Gasket $2.97 2 usually ships 10-12 days
5 203-0920 Spacer $11.00 2 usually ships 10-12 days
6a 203-4768 Knob $10.01 2 (before 03/2013) ships same day
6b 203-4768 Knob $10.01 2 (after 03/2013) ships same day
8 203-1286 Washer D6 $2.99 2 usually ships 10-12 days
9 203-5434 Plate $49.19 1 usually ships 10-12 days
10 203-5437 Gasket $22.01 1 usually ships 10-12 days
11 203-5436 Gasket $22.01 1 usually ships 10-12 days
12 203-4772 Socket $7.60 2 (after 09/2013) usually ships 10-12 days
14a 203-5620 Bracket Call for price 1 (before 09/2013) usually ships 10-12 days
14b 203-5420 Sheet metal $35.21 1 (after 09/2013) usually ships 10-12 days
15a 203-5422 Sheet metal $34.62 1 (before 09/2013) usually ships 10-12 days
15b 203-5422 Sheet metal $34.62 1 (after 09/2013) usually ships 10-12 days
16 203-5008 Squeegee blade front $68.67 1 usually ships 10-12 days
17 189-1398 Washer 6 x 24 inch $2.99 2 usually ships 10-12 days
18 189-5084 Body $144.33 1 usually ships 10-12 days
19 203-4778 Screw 6 x 65 $4.20 2 usually ships 10-12 days
20 203-4779 Screw M6 x 50mm $4.20 2 usually ships 10-12 days
21 203-4585 Closure $1.34 2 usually ships 1-5 days
22 203-5027 Squeegee blade rear $79.90 1 usually ships 10-12 days
23a 203-5622 Bracket Call for price 1 (before 09/2013) usually ships 10-12 days
23b 203-5425 Sheet metal $34.42 1 (after 09/2013) usually ships 10-12 days
24a 203-5623 Bracket $61.96 1 (before 09/2013) usually ships 10-12 days
24b 203-5427 Sheet metal $35.82 1 (after 09/2013) usually ships 10-12 days
25 203-5433 Plate Call for price 1 usually ships 10-12 days
26 203-4786 Insert $2.64 2 usually ships 10-12 days
27 203-4787 Nut M3 $3.61 8 (after 09/2013) usually ships 10-12 days
28 203-4788 Screw 3 x 8 inch $4.20 8 (after 09/2013) usually ships 10-12 days
