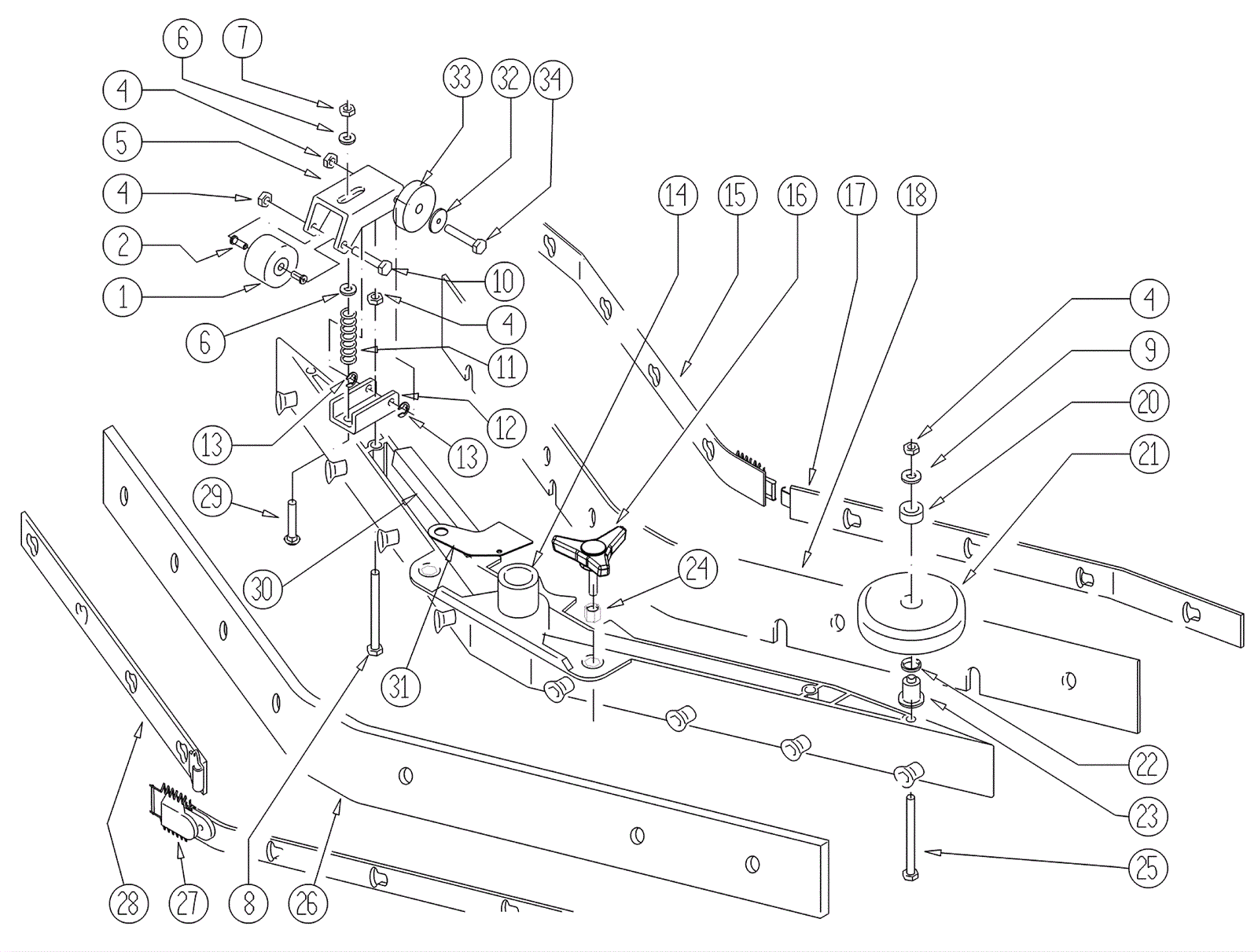

CT 70 Squeegee Assembly before 02/2012

#PartDescriptionPriceReqNotesAvailability
1 203-5239 Wheel $15.04 2 usually ships 5-15 days
2 203-5240 Bushing $27.81 4 usually ships 5-15 days
4 189-1536 Nut with nylon ring $1.80 8 usually ships 5-9 days
5 203-0916 Support $87.11 2 usually ships 5-15 days
6 189-0897 Washer D8 $1.00 4 usually ships 5-15 days
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
8 189-1509 Screw M6 $9.10 2 usually ships 5-15 days
9 203-1286 Washer D6 $0.90 2 usually ships 5-15 days
10 203-4779 Screw M6 x 50mm $2.92 4 usually ships 5-15 days
11 189-0285 Spring $31.30 2 usually ships 5-15 days
12 203-5241 Support $55.58 2 usually ships 5-15 days
13 203-4065 Seeger $4.32 4 usually ships 5-15 days
14 189-5084 Body $131.21 1 usually ships 5-15 days
15 203-3347 Left side squeegee blade retainer $105.57 1 usually ships 5-15 days
16 203-4768 Knob $8.32 2 ships same day
17 203-3348 Right side squeegee blade retainer $75.27 1 usually ships 5-15 days
18 203-1820 Squeegee blade curved front $110.06 1 usually ships 5-15 days
20 189-5086 Bushing $12.84 2 usually ships 5-15 days
21 189-0060 Wheel $7.00 2 usually ships 5-15 days
22 189-0181 Gasket $4.22 2 usually ships 5-15 days
23 203-0920 Spacer $9.17 2 usually ships 5-15 days
24 203-4338 Insert $5.22 2 usually ships 5-15 days
25 203-4778 Screw 6 x 65 $3.50 2 usually ships 5-15 days
26 203-1822 Squeegee blade curved rear $139.40 1 usually ships 5-15 days
27 203-5616 Blade holder $105.57 1 usually ships 5-15 days
28 189-5081 Squeegee blade holder $132.97 1 usually ships 1-5 days
29 203-5244 Screw M8 $6.87 2 usually ships 5-15 days
30 203-5245 Weight $45.55 2 usually ships 5-15 days
31 203-5246 Sheet metal $6.62 2 usually ships 5-15 days
32 189-1398 Washer 6 x 24 inch $2.50 2 usually ships 5-15 days
33 203-5247 Washer $5.30 2 usually ships 5-15 days
34 189-1539 Screw $9.10 2 usually ships 5-15 days
