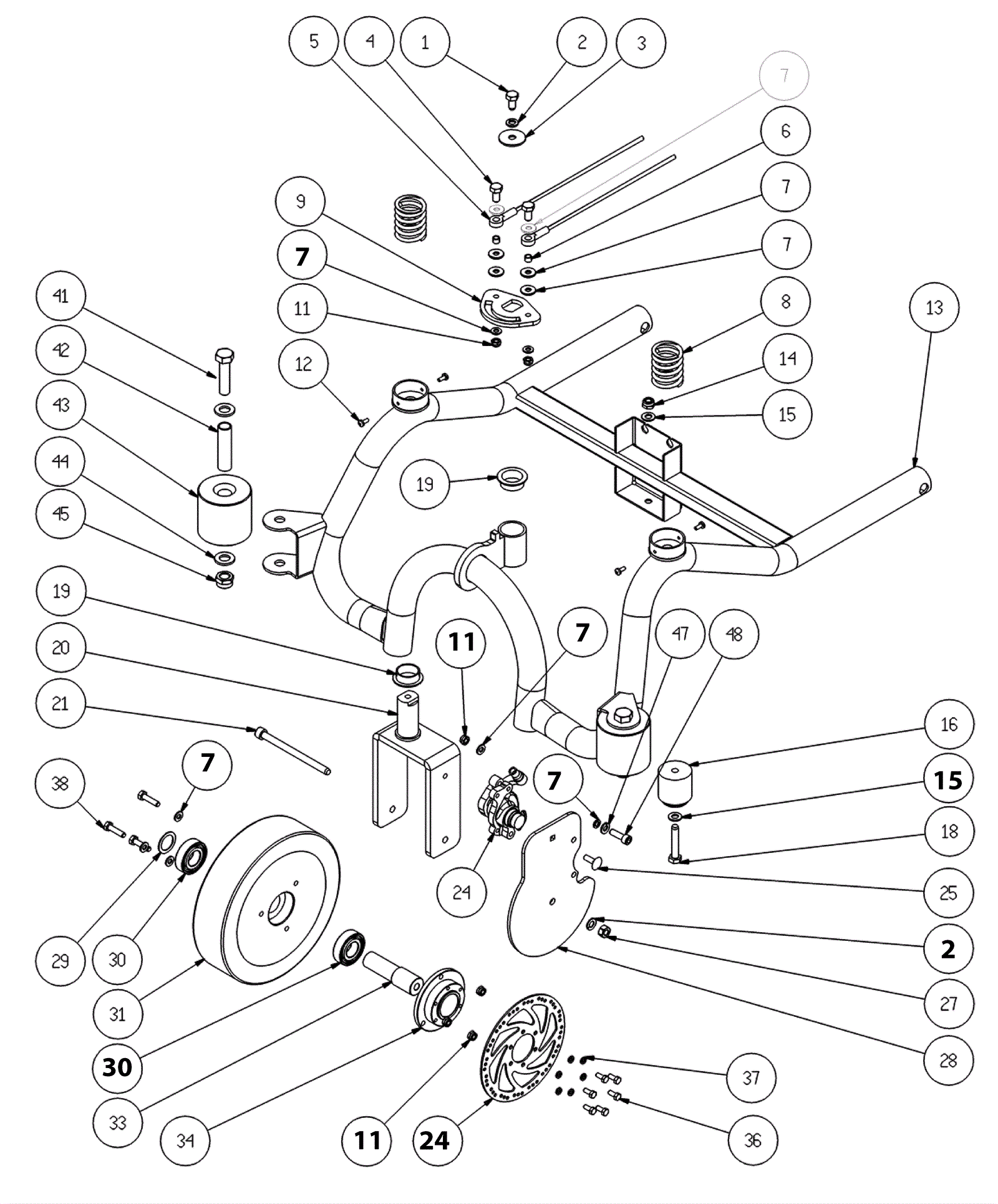

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-1499
|
Screw |
1 |
|
|
2 |
375-9732
|
Washer D8 |
2 |
|
|
3 |
203-1497
|
Washer |
1 |
|
|
4 |
189-1537
|
Screw |
2 |
|
|
5 |
203-9082
|
Cable steering |
2 |
|
|
6 |
203-5269
|
Spacer |
2 |
|
|
7 |
203-1286
|
Washer D6 |
14 |
|
|
8 |
203-5274
|
Spring |
2 |
|
|
9 |
203-9083
|
Plate |
1 |
|
|
11 |
189-1536
|
Nut with nylon ring |
6 |
|
|
12 |
203-9084
|
Screw M4 x 10 |
4 |
|
|
13 |
203-9085
|
Tube |
1 |
|
|
14 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
15 |
189-0897
|
Washer D8 |
2 |
|
|
16 |
203-9086
|
Plug |
1 |
|
|
18 |
375-9702
|
Screw M8 x 50 inox |
1 |
|
|
19 |
203-9008
|
Bushing |
2 |
|
|
20 |
203-9087
|
Bracket |
1 |
|
|
21 |
203-1503
|
Screw M8 x 110mm |
1 |
|
|
24 |
203-9088
|
Brake |
2 |
|
|
25 |
203-9089
|
Screw M6 x 20 |
1 |
|
|
27 |
189-1492
|
Nut M8 |
1 |
|
|
28 |
203-9090
|
Plate |
1 |
|
|
29 |
203-9091
|
Thickness |
1 |
|
|
30 |
250-1152
|
Bearing |
2 |
|
|
31 |
203-9092
|
Wheel |
1 |
|
|
33 |
203-9093
|
Pin |
1 |
|
|
34 |
203-9094
|
Spacer |
1 |
|
|
36 |
203-4317
|
Screw |
6 |
|
|
37 |
203-4956
|
Spring lock washer |
6 |
|
|
38 |
203-9095
|
Screw M6 x 20 |
3 |
|
|
41 |
203-3651
|
Screw M12 x 90 |
2 |
|
|
42 |
203-9096
|
Spacer |
2 |
|
|
43 |
203-9097
|
Roller |
2 |
|
|
44 |
203-1341
|
Washer D12 |
2 |
|
|
45 |
999-0503
|
Nut M12-1.75 hex stainless steel |
2 |
|
|
47 |
203-0971
|
Washer D6 |
2 |
|
|
48 |
203-1323
|
Screw |
2 |
|
|
