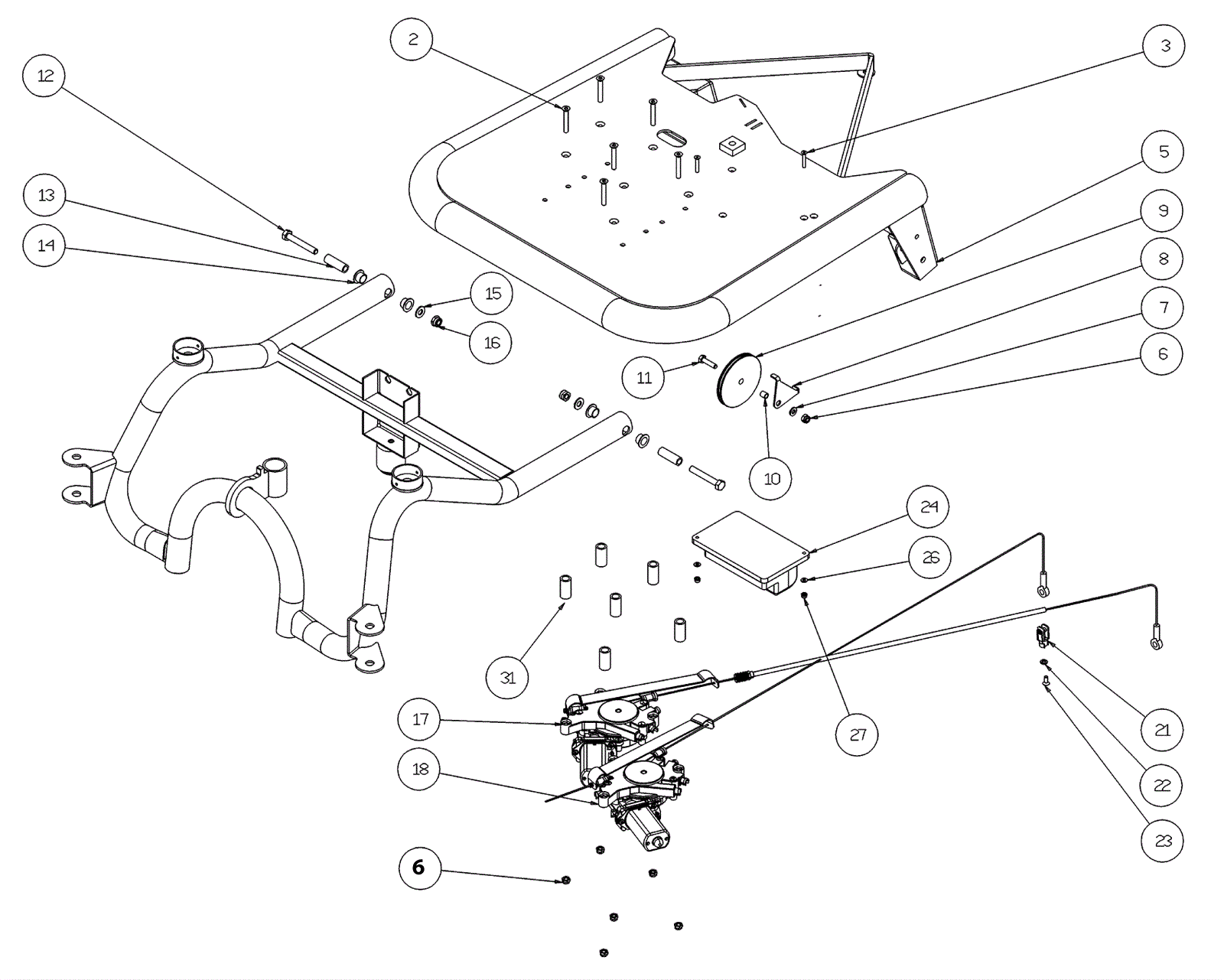

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
203-9070
|
Screw M6 x 55 |
6 |
|
|
3 |
203-9071
|
Screw |
2 |
|
|
5 |
203-9072
|
Plane |
1 |
|
|
6 |
189-1536
|
Nut with nylon ring |
7 |
|
|
7 |
203-1286
|
Washer D6 |
1 |
|
|
8 |
203-9073
|
Sheet metal |
1 |
|
|
9 |
203-9074
|
Pulley |
1 |
|
|
10 |
203-9075
|
Spacer |
1 |
|
|
11 |
189-1537
|
Screw |
1 |
|
|
12 |
203-9076
|
Screw M8 x 55 |
2 |
|
|
13 |
203-9077
|
Pin |
2 |
|
|
14 |
203-1744
|
Bushing |
4 |
|
|
15 |
189-0897
|
Washer D8 |
2 |
|
|
16 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
17 |
203-9078
|
Squeegee actuator |
1 |
(squeegee) |
|
18 |
203-9079
|
Brush head actuator |
1 |
(brush head) |
|
21a |
203-5060
|
Fork pin |
1 |
|
|
21b |
203-5061
|
Clip |
1 |
|
|
22 |
375-9732
|
Washer D8 |
1 |
|
|
23 |
189-1512
|
Screw 8 x 20 inch |
1 |
|
|
24 |
203-9080
|
Board |
1 |
|
|
26 |
203-0235
|
Washer |
2 |
|
|
31 |
203-9081
|
Spacer |
6 |
|
|
