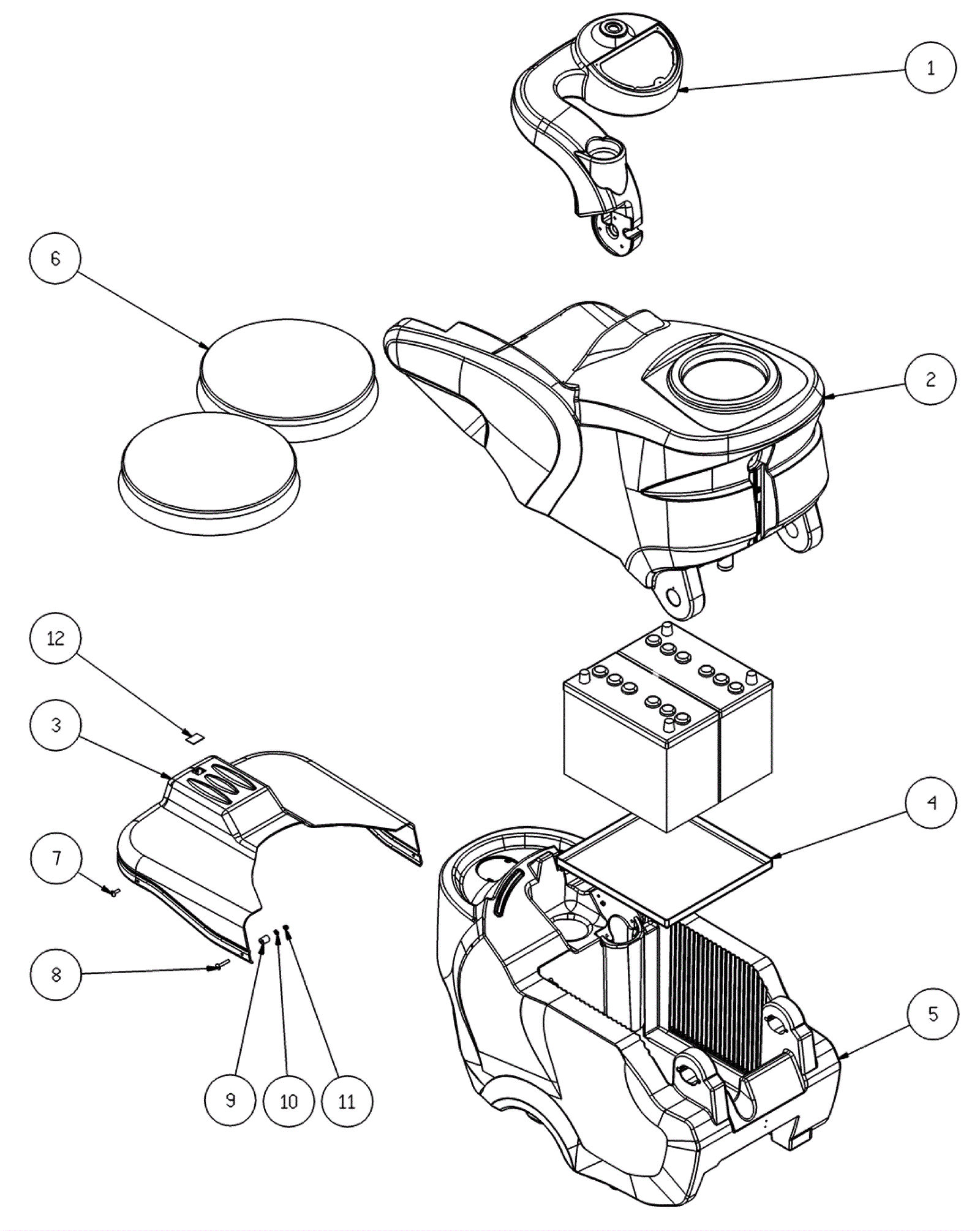

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-9066
|
Arm |
1 |
|
|
2 |
203-9067
|
Tank |
1 |
|
|
3 |
203-9068
|
Cover |
1 |
|
|
4 |
203-4742
|
Battery support |
1 |
|
|
5 |
203-4710
|
Solution tank |
1 |
|
|
6 |
996-1208
|
Polypropelene scrubbing brush |
2 |
|
|
7 |
189-1638
|
Screw 6 x 20 inch |
2 |
|
|
8 |
203-9039
|
Screw |
2 |
|
|
9 |
203-9056
|
Spacer |
2 |
|
|
10 |
203-1286
|
Washer D6 |
2 |
|
|
11 |
189-1536
|
Nut with nylon ring |
2 |
|
|
12 |
203-9069
|
Cover |
1 |
|
|
