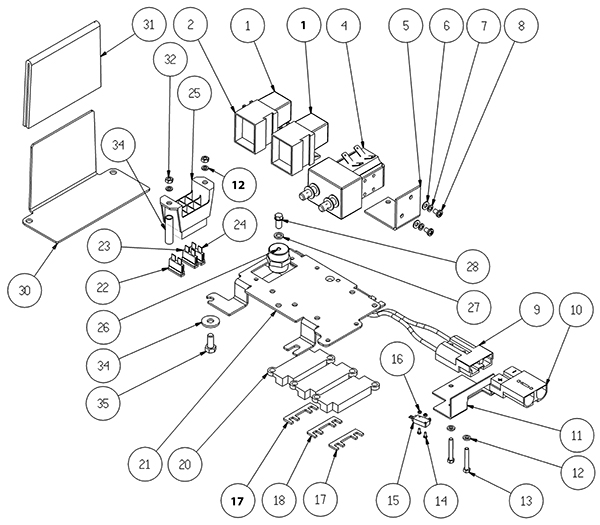

Electrical Installation Assembly

#PartDescription ReqNotesAvailability
1 203-3374 Relay 2
2 203-0783 Relay support 2
4 203-4746 100amp contactor 1
5 203-9060 Bracket 1
9 203-4166 50amp charger plug (red) 1
10 203-4166 50amp charger plug (red) 1
11 203-4735 Support 1
12 203-4740 Washer D4 4
13 203-4738 Screw M4 2
14 189-1457 Screw M2 2
15 203-4734 4V microswitch 1
16 189-1458 Nut M2 2
17 203-3558 80Amp fuse strip 2
18 203-9061 40A fuse 1
20 203-0927 Fuse carrier 3
21 203-9062 Support 1
22 189-0255 Fuse 40 amp 1
23 203-4743 Fuse 1
24 203-9063 Carrying bag 1
25 203-3134 Fuse box and cover 1
26 189-0839 Fuse 1
30 203-9064 Plate 1
31 203-9065 Gasket 1
32 189-1434 Nut 2
34 189-1462 Washer 5 x 14 inch 4
35 203-4317 Screw 4
